FBHUD Class Reference

Heads Up display. More...

#include <pyfbsdk.h>

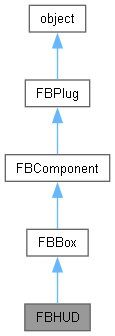

Inheritance diagram for FBHUD:

Public Member Functions
	FBHUD (str pName)
	Constructor.
FBHUDElement	CreateCustomElement (str pHUDElementClassName, str pName)
	Creates a custom HUD Element.
FBHUDElement	CreateElement (EStockElement pType, str pName)
	Creates a stock HUD Element.
Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.
bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.
FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.
bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?
FBAnimationNode	AnimationNodeOutGet ()
str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.
str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.
FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.
int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.
FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.
int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.
Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.
str	ClassName ()
	Get the class name.
	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.
	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.
bool	FBCreate ()
	Open Reality Creation function.
	FBDelete ()
	Open Reality deletion function.
	FBDestroy ()
	Open Reality destruction function.
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.
FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.
	HardSelect ()
	HardSelect.
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.
bool	Is (int pTypeId)
	Returns true if object is of type TypeId.
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.
int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.
bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.
FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.
	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.
	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.
	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.
	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
FBListHUDElement	Elements
	List: Elements present in the HUD.
FBListHUD	HUDs
	List: HUDS attached to this HUD.
FBEvent	OnDisplay
	Event: Callback just before HUD is displayed to update custom values
bool	Visibility
	Read Write Property: Indicate if the information will be displayed or not.
Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.
bool	Live
	Read Write Property: Is live?
bool	RecordMode
	Read Write Property: Is recording?
str	UniqueName
	internal Unique name.
Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.
str	LongName
	Read Write Property: Name and namespace for object.
str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.
FBListComponent	Parents
	List: Parents.
FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.
bool	Selected
	Read Write Property: Selected property.
int	TypeInfo
	Contains the Type information of the object.
Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.
int	TypeInfo
	TypeInfo.

Detailed Description

Heads Up display.

Display scene related information to the screen. This information will also be present in the rendered frames when creating AVIs or QuickTime files.

See samples: BloopSlate.py, HUDElements.py, HUDTextElement.py, RecordLight.py, Timeline.py, HUD.py.

Constructor & Destructor Documentation

FBHUD()

FBHUD

(

str

pName

)

Constructor.

Parameters

pName

Name of new HUD.

Member Function Documentation

CreateCustomElement()

FBHUDElement CreateCustomElement	(	str	pHUDElementClassName,
		str	pName
	)

Creates a custom HUD Element.

Parameters

pHUDElementClassName	The HUD Element class name (mainly, the ClassName parameter of the FBStorableCustomHUDElementImplementation macro).
pName	Name for the custom HUD Element to create.

Returns

The created custom HUD Element.

CreateElement()

FBHUDElement CreateElement	(	EStockElement	pType,
		str	pName
	)

Creates a stock HUD Element.

Parameters

pType	View to be called for expose.
pName	Name for the HUD Element to create.

Returns

The created HUD Element.

Member Data Documentation

Elements

FBListHUDElement Elements

List: Elements present in the HUD.

HUDs

FBListHUD HUDs

List: HUDS attached to this HUD.

OnDisplay

FBEvent OnDisplay

Event: Callback just before HUD is displayed to update custom values

Visibility

bool Visibility

Read Write Property: Indicate if the information will be displayed or not.
