FBPlotPopup Class Reference

Plot Popup (for setting options only). More...

#include <pyfbsdk.h>

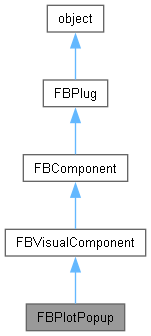

Inheritance diagram for FBPlotPopup:

Public Member Functions

 FBPlotPopup ()
 Constructor.

FBPlotOptions GetPlotOptions ()
 Get plot options.

bool Popup (str pWindowName)
 Execute plot popup.

 SetPlotOptions (FBPlotOptions pPlotOptions)
 Set plot options.

- Public Member Functions inherited from FBVisualComponent
 FBVisualComponent ()
 Constructor.

bool AddChild (FBVisualComponent pChild, int pId=0)
 Add a child component.

FBVisualComponent GetChild (int pId=0)
 Get a child component.

QWidget GetQWidgetAddress ()
 Get internal QWidget.

bool IsView ()
 Is component a view?

 Refresh (bool pNow=False)
 Refresh component.

 ViewExpose ()
 Exposed view callback function.

 ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
 Input callback function.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

bool EnableEvaluateDeformation
 Read Write Property: Enable Evaluate Deformation option for popup.


bool EnablePlotAuxEffectors
 Read Write Property: Enable Plot Aux Effectors option for popup.


bool EnablePlotCharacterExtension
 Read Write Property: Enable Plot Character Extension option for popup.


bool EnablePlotLockedProperties
 Read Write Property: Enable Plot Locked Properties option for popup.


bool EnablePlotTranslationOnRootOnly
 Read Write Property: Enable Plot Translation On Root Only option for popup.


bool EnableSmartPlotControls
 Read Write Property: Enable Smart Plot option for popup.


- Public Attributes inherited from FBVisualComponent
str RegionName
 Read Write Property: Region name.

int RegionOffsetX
 Read Write Property: Region X offset.

int RegionOffsetY
 Read Write Property: Region Y offset.

int RegionOffsetWidth
 Read Write Property: Region width offset.

int RegionOffsetHeight
 Read Write Property: Region height offset.

float RegionRatioX
 Read Write Property: Ratio for X attachment.

float RegionRatioY
 Read Write Property: Ratio for Y attachment.

float RegionRatioWidth
 Read Write Property: Ratio for Width attachment.

float RegionRatioHeight
 Read Write Property: Ratio for Height attachment.


FBAttachType RegionAttachTypeX
 Read Write Property: X Attachment type.

FBAttachType RegionAttachTypeY
 Read Write Property: Y Attachment type.

FBAttachType RegionAttachTypeWidth
 Read Write Property: Width Attachment type.

FBAttachType RegionAttachTypeHeight
 Read Write Property: Height Attachment type.

FBVisualComponent RegionAttachToX
 Read Write Property X Attachment source.

FBVisualComponent RegionAttachToY
 Read Write Property: Y Attachment source.

FBVisualComponent RegionAttachToWidth
 Read Write Property: Width Attachment source.

FBVisualComponent RegionAttachToHeight
 Read Write Property: Height Attachment source.


int RegionPosMaxX
 Read Write Property: Region X position Max

int RegionPosMinX
 Read Write Property: Region X position Min

int RegionPosMaxY
 Read Write Property: Region Y position Max

int RegionPosMinY
 Read Write Property: Region Y position Min

str BorderCaption
 Read Write Property: Caption to display in border.

bool BorderShowCaption
 Read Write Property: Show caption?

FBBorderStyle BorderStyle
 Read Write Property: Style of border.

bool BorderInSet
 Read Write Property: Is border inset?

int BorderWidth
 Read Write Property: Width of border.

int BorderSpacing
 Read Write Property: Spacing of border.

float BorderMaxAngle
 Read Write Property: Max angle for rounding.

int BorderCornerRadius
 Read Write Property: Corner radius (rounded).


str Caption
 Property: Widget caption.


bool Enabled
 Read Write Property: Is visual enabled?


int Height
 Read Write Property: Height.


str Hint
 Read Write Property: Hint to show.


int Left
 Read Write Property: Left coordinate.


bool ReadOnly
 Read Write Property: Is visual component read only?


int Top
 Read Write Property: Top coordinate.


bool Visible
 Read Write Property: Is visual component visible?


int Width
 Read Write Property: Width.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Plot Popup (for setting options only).


See sample: FBPlotPopup.py.

Constructor & Destructor Documentation

◆ FBPlotPopup()

Constructor.

Member Function Documentation

◆ GetPlotOptions()

FBPlotOptions GetPlotOptions ( )

Get plot options.

Returns
plot options.

◆ Popup()

bool Popup ( str  pWindowName)

Execute plot popup.

Returns
true if OK is clicked by user.

◆ SetPlotOptions()

SetPlotOptions ( FBPlotOptions  pPlotOptions)

Set plot options.

Parameters
pPlotOptionsSet the plot options that will be used when displaying the plot popup. First use the GetPlotOptions(), change the options and use the SetPlotOptions() to set them before calling the Popup() function.

Member Data Documentation

◆ EnableEvaluateDeformation

bool EnableEvaluateDeformation

Read Write Property: Enable Evaluate Deformation option for popup.

◆ EnablePlotAuxEffectors

bool EnablePlotAuxEffectors

Read Write Property: Enable Plot Aux Effectors option for popup.

◆ EnablePlotCharacterExtension

bool EnablePlotCharacterExtension

Read Write Property: Enable Plot Character Extension option for popup.

◆ EnablePlotLockedProperties

bool EnablePlotLockedProperties

Read Write Property: Enable Plot Locked Properties option for popup.

◆ EnablePlotTranslationOnRootOnly

bool EnablePlotTranslationOnRootOnly

Read Write Property: Enable Plot Translation On Root Only option for popup.

◆ EnableSmartPlotControls

bool EnableSmartPlotControls

Read Write Property: Enable Smart Plot option for popup.
