FBVisualContainer Class Reference

Used to create a container for a tool UI. More...

#include <pyfbsdk.h>

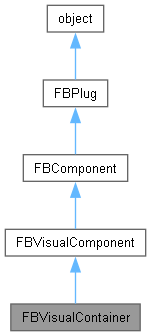

Inheritance diagram for FBVisualContainer:

Public Member Functions

 FBVisualContainer ()
 Constructor.

int GetSelection ()
 Get the selected item.

bool ItemIconSet (kReference pRef, FBImage pImage, bool pUseACopyOfTheImage=True)
 Set an item's icon.

bool ItemIconSet (kReference pRef, str pFilename)
 Set an item's icon.

bool ItemNameEdit (kReference pRef)
 Edit a container item.

- Public Member Functions inherited from FBVisualComponent
 FBVisualComponent ()
 Constructor.

bool AddChild (FBVisualComponent pChild, int pId=0)
 Add a child component.

FBVisualComponent GetChild (int pId=0)
 Get a child component.

QWidget GetQWidgetAddress ()
 Get internal QWidget.

bool IsView ()
 Is component a view?

 Refresh (bool pNow=False)
 Refresh component.

 ViewExpose ()
 Exposed view callback function.

 ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
 Input callback function.

- Public Member Functions inherited from FBComponent
 FBComponent ()
 Constructor.

str ClassName ()
 Get the class name.

 DisableObjectFlags (FBObjectFlag pFlags)
 Disable a specific Object Flags.

 EnableObjectFlags (FBObjectFlag pFlags)
 Enable a specific Object Flags.

bool FBCreate ()
 Open Reality Creation function.

 FBDelete ()
 Open Reality deletion function.

 FBDestroy ()
 Open Reality destruction function.

FBObjectFlag GetObjectFlags ()
 Get all Object Flags (concatenated).

bool GetObjectStatus (FBObjectStatus pStatus)
 Check to see if an object status is enabled.

FBFileReference GetOwnerFileReference (p0)
 Get the owner FileReference object.

 HardSelect ()
 HardSelect.

bool HasObjectFlags (FBObjectFlag pFlags)
 Check whether a specific object flag is enabled.

bool Is (int pTypeId)
 Returns true if object is of type TypeId.

bool ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessNamespaceHierarchy.

bool ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
 ProcessObjectNamespace.

int PropertyAdd (FBProperty pProperty)
 Add a property to the component's property manager.

bool PropertyAddReferenceProperty (FBProperty pReferenceProperty)
 Add a reference property to the component's property manager.

FBProperty PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
 Create user or dynamic property.

 PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
 Get list of properties which have been modified since last loading.

 PropertyRemove (FBProperty pProperty)
 Remove a Property from the component's Property manager.

 SetObjectFlags (FBObjectFlag pFlags)
 SetObjectFlags.

 SetObjectStatus (FBObjectStatus pStatus, bool pValue)
 Enable/Disable a specific Object Status.


Public Attributes

FBIconPosition IconPosition
 Read Write Property: Where the icon is positioned for the items.


int ItemHeight
 Read Write Property: Item height.


int ItemIndex
 Read Write Property: Current item selected.


int ItemWidth
 Read Write Property: Item width.


bool ItemWrap
 Read Write Property: Are items wrapped when enough space is available?


FBStringList Items
 List: Names of items in container.


FBEvent OnChange
 Event: Container contents changed.


FBEvent OnDblClick
 Event: Double click.


FBEvent OnDragAndDrop
 Event: Drag and Drop event.


FBOrientation Orientation
 Read Write Property: Orientation of container.


- Public Attributes inherited from FBVisualComponent
str RegionName
 Read Write Property: Region name.

int RegionOffsetX
 Read Write Property: Region X offset.

int RegionOffsetY
 Read Write Property: Region Y offset.

int RegionOffsetWidth
 Read Write Property: Region width offset.

int RegionOffsetHeight
 Read Write Property: Region height offset.

float RegionRatioX
 Read Write Property: Ratio for X attachment.

float RegionRatioY
 Read Write Property: Ratio for Y attachment.

float RegionRatioWidth
 Read Write Property: Ratio for Width attachment.

float RegionRatioHeight
 Read Write Property: Ratio for Height attachment.


FBAttachType RegionAttachTypeX
 Read Write Property: X Attachment type.

FBAttachType RegionAttachTypeY
 Read Write Property: Y Attachment type.

FBAttachType RegionAttachTypeWidth
 Read Write Property: Width Attachment type.

FBAttachType RegionAttachTypeHeight
 Read Write Property: Height Attachment type.

FBVisualComponent RegionAttachToX
 Read Write Property X Attachment source.

FBVisualComponent RegionAttachToY
 Read Write Property: Y Attachment source.

FBVisualComponent RegionAttachToWidth
 Read Write Property: Width Attachment source.

FBVisualComponent RegionAttachToHeight
 Read Write Property: Height Attachment source.


int RegionPosMaxX
 Read Write Property: Region X position Max

int RegionPosMinX
 Read Write Property: Region X position Min

int RegionPosMaxY
 Read Write Property: Region Y position Max

int RegionPosMinY
 Read Write Property: Region Y position Min

str BorderCaption
 Read Write Property: Caption to display in border.

bool BorderShowCaption
 Read Write Property: Show caption?

FBBorderStyle BorderStyle
 Read Write Property: Style of border.

bool BorderInSet
 Read Write Property: Is border inset?

int BorderWidth
 Read Write Property: Width of border.

int BorderSpacing
 Read Write Property: Spacing of border.

float BorderMaxAngle
 Read Write Property: Max angle for rounding.

int BorderCornerRadius
 Read Write Property: Corner radius (rounded).


str Caption
 Property: Widget caption.


bool Enabled
 Read Write Property: Is visual enabled?


int Height
 Read Write Property: Height.


str Hint
 Read Write Property: Hint to show.


int Left
 Read Write Property: Left coordinate.


bool ReadOnly
 Read Write Property: Is visual component read only?


int Top
 Read Write Property: Top coordinate.


bool Visible
 Read Write Property: Is visual component visible?


int Width
 Read Write Property: Width.


- Public Attributes inherited from FBComponent
FBListComponent Components
 List: List of components.


str LongName
 Read Write Property: Name and namespace for object.


str Name
 Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent Parents
 List: Parents.


FBManager PropertyList
 Read Only Property: Manages all of the properties for the component.


bool Selected
 Read Write Property: Selected property.


int TypeInfo
 Contains the Type information of the object.


- Public Attributes inherited from FBPlug
str ClassGroupName
 ClassGroupName of the object.


int TypeInfo
 TypeInfo.



Detailed Description

Used to create a container for a tool UI.


See samples: Container.py, PropertyDrop.py, TutorialBox.py.

Constructor & Destructor Documentation

◆ FBVisualContainer()

Constructor.

Member Function Documentation

◆ GetSelection()

int GetSelection ( )

Get the selected item.

Returns
Index of current selection.

◆ ItemIconSet() [1/2]

bool ItemIconSet ( kReference  pRef,
FBImage  pImage,
bool  pUseACopyOfTheImage = True
)

Set an item's icon.

Parameters
pRefReference to item in container.
pImageHandle to image to use.
pUseACopyOfTheImageCreate a copy of the image?(default=true)
Returns
Operation was successful (true or false).

◆ ItemIconSet() [2/2]

bool ItemIconSet ( kReference  pRef,
str  pFilename
)

Set an item's icon.

Parameters
pRefReference to item in container.
pFilenameName of file where image is located.
Returns
Operation was successful (true or false).

◆ ItemNameEdit()

bool ItemNameEdit ( kReference  pRef)

Edit a container item.

Parameters
pRefReference of container to edit.
Returns
Operation was successful (true or false).

Member Data Documentation

◆ IconPosition

FBIconPosition IconPosition

Read Write Property: Where the icon is positioned for the items.

◆ ItemHeight

int ItemHeight

Read Write Property: Item height.

◆ ItemIndex

int ItemIndex

Read Write Property: Current item selected.

◆ Items

FBStringList Items

List: Names of items in container.

◆ ItemWidth

int ItemWidth

Read Write Property: Item width.

◆ ItemWrap

bool ItemWrap

Read Write Property: Are items wrapped when enough space is available?

◆ OnChange

FBEvent OnChange

Event: Container contents changed.

◆ OnDblClick

FBEvent OnDblClick

Event: Double click.

◆ OnDragAndDrop

FBEvent OnDragAndDrop

Event: Drag and Drop event.

◆ Orientation

FBOrientation Orientation

Read Write Property: Orientation of container.
