To display surface points

To display the measured points of surface inspection groups in the CAD view, select View tab > View Options panel > Points button.

PowerInspect compares the measurement results to the CAD data and uses colour to indicate the deviation from the CAD data:

• Green points are within tolerance.
• Red points are above the tolerance band.
• Blue points are below the tolerance band.

To choose the type of display, click the arrow and select:

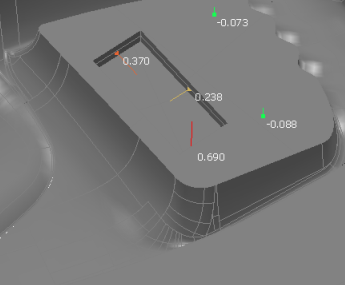

• Pins to display the points as coloured pins on the CAD model. For example:

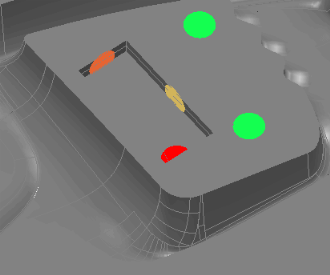

• Confetti to display the points of the inspection group as coloured spots in the CAD view. For example:



To hide the inspection points, deselect the button.
