To view detailed information about a probe path

The Information dialog enables you to view the details of the probe path, and to step through the path one move at a time.

To step through each move in the probe path:

1. In the Inspect dialog, click the Details button. The Probe Path Details dialog is displayed.

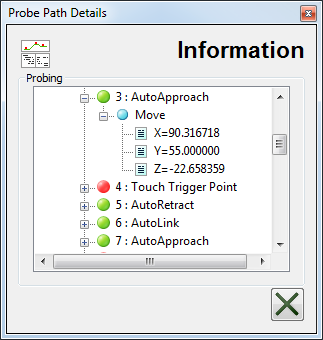

   If you want to view more details about a move, click . For example:



2. Click to close all the move details in the path.

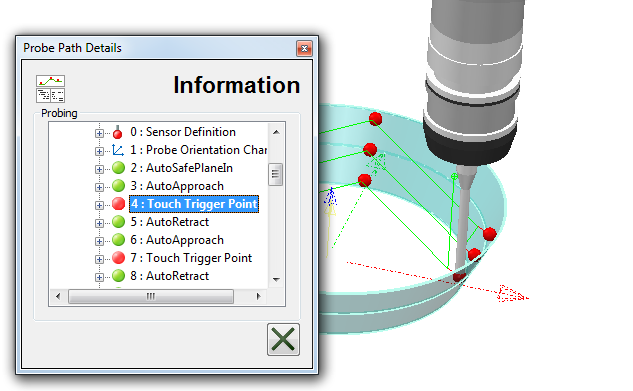

3. Select a move in the probe path. In the CAD view, the probe is positioned at the start of the move. For example:

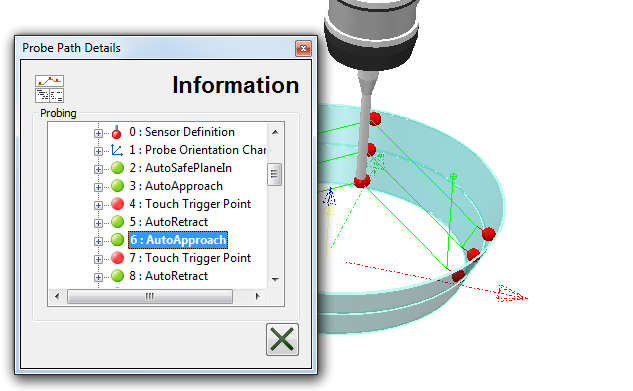

4. Select the next move entry to show the probe move in the CAD view.



5. Continue to select the moves to step through the probe path.



6. When you have finished, click the Close button to close the Information dialog.
