Searching Revit Family Files in a Vault

Search for a specific family type and load the type(s) into a Revit project file or a Revit Family file using the Vault Load Family dialog.

Note: The Revit Indexing Service must be enabled by an administrator in the ADMS Console before you can search family types.

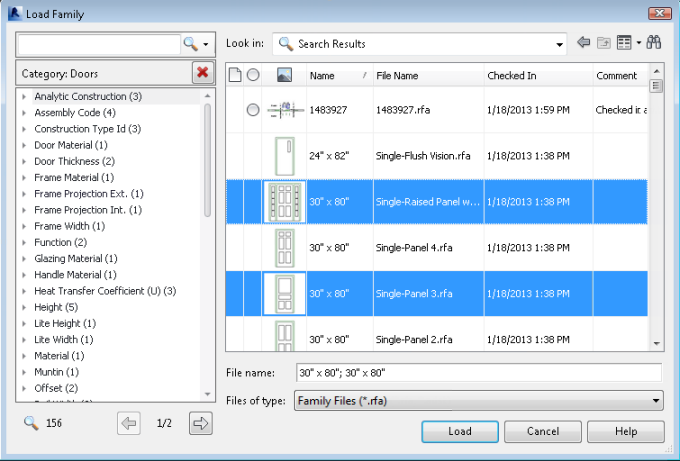

Understand the Search Family Files User Interface

The Search Revit Family Files feature allows you to locate family types quickly across multiple family files.

Understanding how the search interface works will help you make the most of this functionality.

Feature	Description
Content Search Box	The Content Search Box lets you enter a keyword search. Keywords can be a value or a parameter which has been indexed from the Revit Family files placed in Vault. You can enter a single word or multiple words. If multiple words are entered, all words must exist as part of the family parameters.
Address Bar	Displays the current folder when browsing files. When you choose a specific family file, the address bar displays the term Search Results and the results are listed in the grid beneath. Note: When the address bar is changed from Search Results to a folder, all parameters are cleared.
Search Conditions List	Each time you select a parameter value or type a parameter value into the search field, the value is added to the Search Conditions List. When you select a Category type from the default list, the Search Conditions List is updated with the value: Category: Category Name. For example, if you select the category Doors, the Search Conditions List will show Category:Doors as one of its values. Each search value can be removed at any time or in any order. When removing a value, the search results in grid refresh to match the remaining search parameters.
Available Parameters List	Before you begin searching, the Parameter List shows the Type Categories of all of the Families stored in Vault. Once a Category is selected, parameters associated with the selected category are displayed. A number beside the parameter indicates the number of values for that parameter. Each available value for that parameter is listed as a child of the parameter, with a number beside each value indicating the number of family types that would be displayed if selected.
Grid	The grid displays the Revit Family types that meet the current search parameters. Select a Revit Family type to load that family type. Note: If you select a Revit Family file, the Search Conditions List updates to include the family file name (i.e., File:FileName.rfa).
Result Count	The number of family types in the current search results displays in the Result Count window. Whenever the search parameters change, this count updates to reflect the new number of family types returned.
Page Control	The page control lets you cycle through the results in the grid. The grid displays up to 100 results at a time.

Feature

Description

Content Search Box

The Content Search Box lets you enter a keyword search. Keywords can be a value or a parameter which has been indexed from the Revit Family files placed in Vault.

You can enter a single word or multiple words. If multiple words are entered, all words must exist as part of the family parameters.

Address Bar

Displays the current folder when browsing files. When you choose a specific family file, the address bar displays the term Search Results and the results are listed in the grid beneath.

Note: When the address bar is changed from Search Results to a folder, all parameters are cleared.

Search Conditions List

Each time you select a parameter value or type a parameter value into the search field, the value is added to the Search Conditions List. When you select a Category type from the default list, the Search Conditions List is updated with the value: Category: Category Name. For example, if you select the category Doors, the Search Conditions List will show Category:Doors as one of its values.

Each search value can be removed at any time or in any order. When removing a value, the search results in grid refresh to match the remaining search parameters.

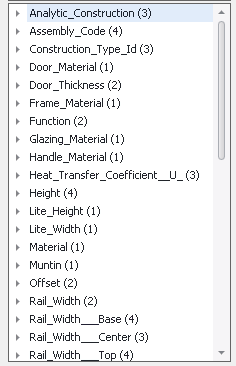

Available Parameters List

Before you begin searching, the Parameter List shows the Type Categories of all of the Families stored in Vault. Once a Category is selected, parameters associated with the selected category are displayed. A number beside the parameter indicates the number of values for that parameter. Each available value for that parameter is listed as a child of the parameter, with a number beside each value indicating the number of family types that would be displayed if selected.

Grid

The grid displays the Revit Family types that meet the current search parameters. Select a Revit Family type to load that family type.

Note: If you select a Revit Family file, the Search Conditions List updates to include the family file name (i.e., File:FileName.rfa).

Result Count

The number of family types in the current search results displays in the Result Count window. Whenever the search parameters change, this count updates to reflect the new number of family types returned.

Page Control

The page control lets you cycle through the results in the grid. The grid displays up to 100 results at a time.

Search Tasks

Following is a list of search tasks you can perform with the Revit Vault Add-in Search feature.

Note: The Revit Indexing Service must be enabled by an administrator in the ADMS Console before you can search family types.

You can perform these searches with the Revit Family Search feature:

Search across all family files in the vault
Search within a category
Search within a specific family file
Search for parameters in family types using a search string
Search using a combination of category and search strings

Search across all family files in the vault

Launch the Load Family dialog.
Enter a search string in the search field.

The string entered is added to the Searched Parameters List. The grid displays all Family Types in the vault that match the search string. A list of parameters available for the family types in the Grid is displayed in the Parameter List.
Select one or more family types in the grid and click Load.

Search within a Category

Launch the Load Family dialog.
Select a Category Type to browse.

The selected category is added to the Search Conditions List. The grid displays all Family Types that match the selected category. A list of parameters available for the family types in the Grid is displayed in the Available Parameters List.
Select a parameter from the Available Parameters List to further refine your search.

The grid displays all Family Types matching the selected parameters and the Available Parameters list updates to show only the parameters available for the results displayed in the grid.
Select one or more family types in the grid and click Load.

Text Search with Search Conditions List

Launch the Load Family dialog.
Enter a search string in the search field.

The string entered is added to the Search Conditions List. The grid displays all Family Types that match the selected category and search string. A list of parameters available for the family types in the Grid is displayed in the Available Parameters List.
Select a parameter and value from the Available Parameters List to further refine your search.

The grid displays all Family Types matching the selected parameters and the Available Parameters list updates to show only the parameters available for the results displayed in the grid.
Select one or more family types in the grid and click Load.

Select a Family Type from a File

Launch the Load Family dialog.
Select a Revit rfa file in the right pane from which you want to select a family type.

The Revit rfa file is added to the Search Conditions List and the grid displays all Family Types associated with the selected file. A list of parameters available for the family types in the Grid is displayed in the Parameter List.
Select one or more family types in the grid and click Load.

Use a Searched Parameter with a Single File

Launch the Load Family dialog.
Select a Revit rfa file from which you want to select a family type.

The grid displays all Family Types associated with the selected file. A list of parameters available for the family types in the Grid is displayed in the Parameter List.
Add any additional parameters to the Searched Parameter list.

The grid displays all Family Types matching the selected parameters and the parameters list updates to show only the parameters available for the results displayed in the grid.
Select one or more family types in the grid and click Load.

Remove a Value from the Search Conditions List

Click the delete button beside any value in the Search Conditions List to remove it from the Search Conditions List.

If there are any remaining parameters, the grid updates all Family Types matching the remaining search parameters. The Available Parameters List is also updated.

Save a Search

Launch the Load Family dialog.
Run a search by typing in the search field or by selecting a category from the Category Type list.
Click the drop-down button next to the search text box and select Save this Search.

The search configuration is saved.

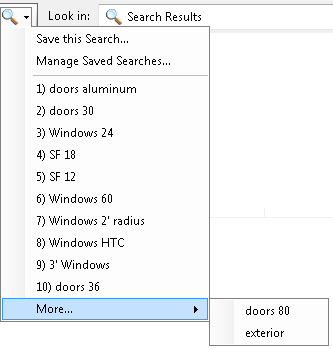

Load a Search

Launch the Load Family dialog.
Click the drop-down arrow next to the search text box and select the saved search that you want to load.

Note: You can control the types of parameters that show up in searches by modifying the settings on the Vault Options dialog. Refer to Configure Vault Options for more information.

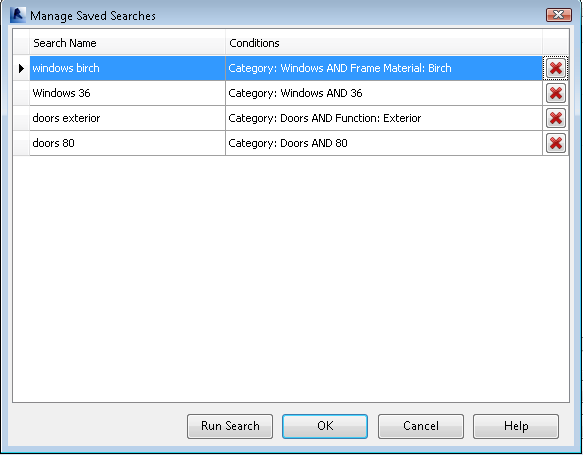

Manage Saved Searches

Launch the Load Family dialog.
Click the drop-down arrow next to the search text box and select Manage Saved Searches.

The Manage Saved Searches dialog opens.
If you want to rename a saved search, click in the name field and modify the text.
If you want to delete a search, click the delete button beside that search row.
Click OK to save your changes and close the Manage Saved Searches dialog.

Click Run Search to run the selected search.

Click Cancel at any time to exit without saving.
