Insert a DWG from Vault

Insert a DWG stored in a vault to the current Revit project.

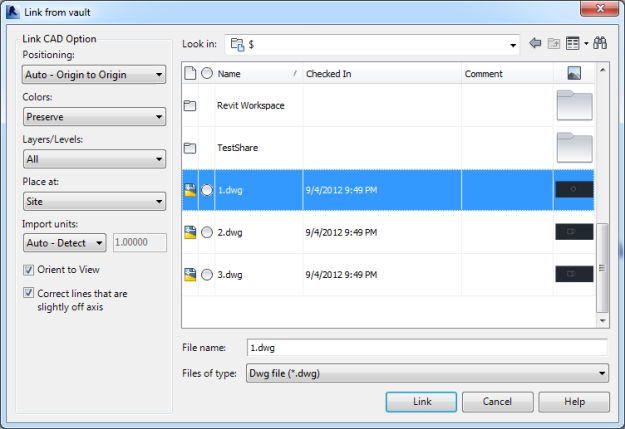

1. Click Link from Vault on the Revit Vault Ribbon.



2. Locate the DWG that you want to insert.



3. Select your positioning preference from the Positioning drop-down.

4. Select your Colors preference from the Colors drop-down.

5. Select the position at which to place the DWG in the Place at drop-down.

6. If needed, modify your import units.

7. Click Link to insert the DWG.
