ConstraintRelation class. More...

#include <pyfbsdk.h>

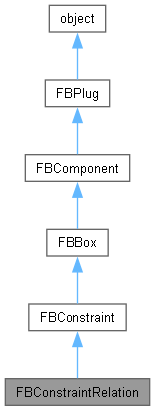

Inheritance diagram for FBConstraintRelation:

[legend]

Public Member Functions
tuple< bool, int, int >	GetBoxPosition ()
	Get a box position in the GUI.

	FBConstraintRelation (str pName)
	Constructor.

FBBox	ConstrainObject (FBBox pConstrainedObject)
	Create a receiver box.

FBBox	CreateFunctionBox (str pGroup, str pName)
	Create a function box.

FBBox	SetAsSource (FBBox pSource)
	Create a sender box.

bool	SetBoxPosition (FBBox pBox, int pX, int pY)
	Set a box position in the GUI.

Public Member Functions inherited from FBConstraint
	FBConstraint (str pName)
	Constructor.

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBModel pModel, str pAttribute)

FBAnimationNode	AnimationNodeInCreate (kReference pUserId, FBProperty pProperty)
	Animation Node Creations (IN).

FBAnimationNode	AnimationNodeOutCreate (kReference pUserId, FBModel pModel, str pAttribute)
	Animation Node Creations (IN/OUT).

FBConstraint	Clone ()
	Clone the constraint.

bool	DeformerBind (FBModel pModel)
	Bind/Unbind pModel to deformation constraint.

bool	DeformerUnBind (FBModel pModel)

bool	Disable (FBModel pModel)
	Disable constraint on pModel.

	FreezeSRT (FBModel pModel, bool pS, bool pR, bool pT)
	Freeze current model state.

	FreezeSuggested ()
	Suggest 'freeze'.

bool	ReferenceAdd (int pGroupIndex, FBModel pModel)
	Add a reference to a specified group.

FBModel	ReferenceGet (int pGroupIndex, int pItemIndex=0)
	Get a reference.

int	ReferenceGetCount (int pGroupIndex)
	Get number of references in a specified group.

int	ReferenceGroupAdd (str pGroupName, int pMaxItemCount)
	Add a group of references.

int	ReferenceGroupGetCount ()
	Return the number of reference groups.

int	ReferenceGroupGetMaxCount (int pGroupIndex)
	Get the maximum number of items that can exist in the reference group in question.

str	ReferenceGroupGetName (int pGroupIndex)
	Get the name of the reference group.

bool	ReferenceRemove (int pGroupIndex, FBModel pModel)
	Remove a reference to pModel from the group at pGroupIndex.

	RemoveAllAnimationNodes ()
	Remove animation nodes.

	RestoreModelState (FBModel pModel)
	Restore the saved model state onto pModel.

	SaveModelState (FBModel pModel, bool pS, bool pR, bool pT)
	Save current state of pModel.

	SetupAllAnimationNodes ()
	Setup animation nodes.

	SnapSuggested ()
	Suggest 'snap'.

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.

str	ClassName ()
	Get the class name.

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

bool	FBCreate ()
	Open Reality Creation function.

	FBDelete ()
	Open Reality deletion function.

	FBDestroy ()
	Open Reality destruction function.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.

	HardSelect ()
	HardSelect.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

bool	Is (int pTypeId)
	Returns true if object is of type TypeId.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
FBListBox	Boxes
	List: Boxes used in this constraint.

Public Attributes inherited from FBConstraint
bool	Active
	Read Write Property: Active state.

bool	Deformer
	Read Write Property: Is a deformer constraint?

str	Description
	Read Write Property: Long description of constraint.

bool	HasLayout
	Read Write Property: Does the constraint have a layout?

bool	Lock
	Read Write Property: Lock state.

FBAction	Snap
	Function Property: Snap constraint.

FBAnimatableDouble	Weight
	Read Write Property: Weight of constraint.

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.

bool	Live
	Read Write Property: Is live?

bool	RecordMode
	Read Write Property: Is recording?

str	UniqueName
	internal Unique name.

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.

str	LongName
	Read Write Property: Name and namespace for object.

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent	Parents
	List: Parents.

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

bool	Selected
	Read Write Property: Selected property.

int	TypeInfo
	Contains the Type information of the object.

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.

int	TypeInfo
	TypeInfo.

Detailed Description

ConstraintRelation class.

This class exposes the relation constraint and allows addition of new boxes and removal of existing ones.

See samples: CreateAndPopulateAConstraintRelation.py, TraversingRelationConstraint.py.

Constructor & Destructor Documentation

◆ FBConstraintRelation()

FBConstraintRelation ( str pName )

Constructor.

Parameters

pName Name of constraint.

Member Function Documentation

◆ ConstrainObject()

FBBox ConstrainObject ( FBBox pConstrainedObject )

Create a receiver box.

Use an existing FBBox object to create a receiver in the relation.

Parameters

pConstrainedObject Destination box to insert in the constraint.

Returns: A place holder box for the object.

◆ CreateFunctionBox()

FBBox CreateFunctionBox	(	str	pGroup,
		str	pName
	)

Create a function box.

Ask the constraint to create new function box.

Parameters

pGroup	Name of the group under which the function is located in the Constraint Relation GUI (case-sensitive!).
pName	Name of the function, as seen in the GUI (case-sensitive!).

Returns: The newly created function box, or NULL if the name/group combination was invalid.

◆ GetBoxPosition()

tuple< bool, int, int > GetBoxPosition ( )

Get a box position in the GUI.

Get the position of a box within the constraint layout view.

Returns: A tuple containing: the result of operation (bool), X value (int), and Y value(int)

◆ SetAsSource()

FBBox SetAsSource ( FBBox pSource )

Create a sender box.

Use an existing FBBox object to create a sender in the relation.

Parameters

pSource Source box to insert in the constraint.

Returns: A place holder box for the object.

◆ SetBoxPosition()

bool SetBoxPosition	(	FBBox	pBox,
		int	pX,
		int	pY
	)

Set a box position in the GUI.

Set the position of a box within the constraint layout view.

Parameters

pBox	Box which needs to be moved.
pX	New X position.
pY	New Y position.

Returns: A boolean value indicating success (True) or failure (False).

Member Data Documentation

◆ Boxes

FBListBox Boxes

List: Boxes used in this constraint.
