Abstract base class for undoable commands. More...

#include <undoableCommand.h>

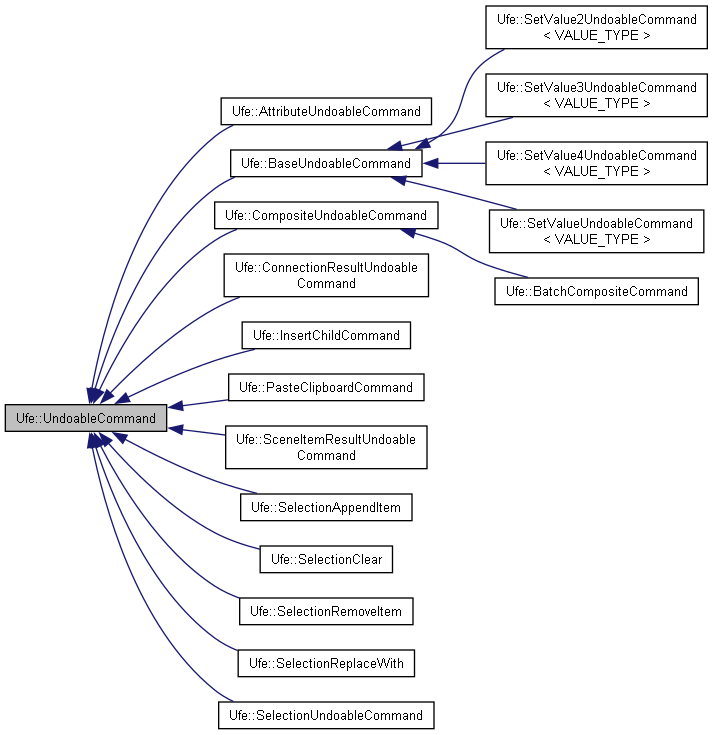

Inheritance diagram for Ufe::UndoableCommand:

[legend]

Public Types
typedef std::shared_ptr< UndoableCommand >	Ptr

Public Member Functions
virtual	~UndoableCommand ()
	Destructor. More...

virtual std::string	commandString () const
	Get a user friendly string representation of the command. More...

virtual void	execute ()

virtual void	undo ()=0

virtual void	redo ()=0

Protected Member Functions
	UndoableCommand ()
	Constructor. More...

	UndoableCommand (const UndoableCommand &)=delete
	Deleting copy constructor. More...

Detailed Description

Abstract base class for undoable commands.

This base class defines the trivial interface to implement the Command pattern

https://en.wikipedia.org/wiki/Command_pattern

for interactive multi-level undo.

Definition at line 36 of file undoableCommand.h.

Member Typedef Documentation

◆ Ptr

typedef std::shared_ptr<UndoableCommand> Ufe::UndoableCommand::Ptr

Definition at line 39 of file undoableCommand.h.

Constructor & Destructor Documentation

◆ ~UndoableCommand()

virtual Ufe::UndoableCommand::~UndoableCommand ( )

virtual

Destructor.

◆ UndoableCommand() [1/2]

Ufe::UndoableCommand::UndoableCommand ( )

protected

Constructor.

◆ UndoableCommand() [2/2]

Ufe::UndoableCommand::UndoableCommand ( const UndoableCommand & )

protecteddelete

Deleting copy constructor.

Member Function Documentation

◆ commandString()

virtual std::string Ufe::UndoableCommand::commandString ( ) const

inlinevirtual

Get a user friendly string representation of the command.

Note: For example, an application can print out the executed command to give an hint to the user of what was sucessfully done.

Definition at line 47 of file undoableCommand.h.

◆ execute()

virtual void Ufe::UndoableCommand::execute ( )

virtual

Initial execution of the command, which should be called exactly once. Implementation in this class calls redo().

Reimplemented in Ufe::BatchCompositeCommand, and Ufe::CompositeUndoableCommand.

◆ redo()

virtual void Ufe::UndoableCommand::redo ( )

pure virtual

Implemented in Ufe::BatchCompositeCommand, Ufe::SelectionAppendItem, Ufe::SelectionRemoveItem, Ufe::SelectionClear, Ufe::SelectionReplaceWith, and Ufe::CompositeUndoableCommand.

◆ undo()

virtual void Ufe::UndoableCommand::undo ( )
