To Create or Edit a Workflow

A workflow automates a set of activities. You can change any existing workflow or create one from scratch.

Edit a workflow

1. In the Planning And Analysis workspace, click Tools tabWorkflow panel. Select a workflow from the drop-down list.

   If the workflow you want is not in the list, click Open Workflow From File at the bottom of the list. After you open a workflow, select it from the list.

2. In the Planning And Analysis workspace, click Tools tabWorkflow panelEdit.
3. In the Workflow Designer, pan or zoom as needed.
4. If necessary, expand the activity to edit.
   Note: For some utility activities (For Each, If/Else, and While), fill in the parameters inside the activity box.
5. To set the parameters for an activity, click the activity box and fill in the parameters.

   For information about the available activities and their parameters, see Workflow Activity Input Dialogs. For a tutorial on workflows, see Lesson 5: Edit a Predefined Workflow.

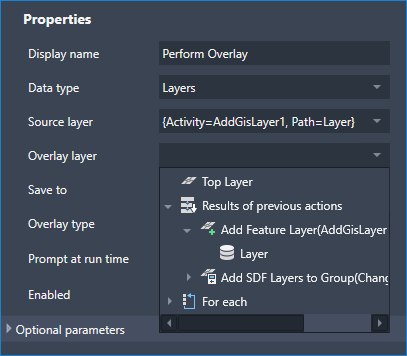

6. To bind an activity to the output of a previous activity from the input editor, do the following:
   • In the activity input dialog box for the activity, click the down arrow next to the parameter to bind.
   • Under Results Of Previous Actions, click the property to bind to.


     To use a layer created by a previous activity, select it from the list under Results Of Previous Actions.

   Note: There is a shortcut for adding an activity and automatically binding it to the previous activity. Right-click an activity and click the activity to add. For example, right-click an Overlay activity and click Add Feature Layer to create a new Display Manager layer that stores the output of the Overlay operation.
7. Optionally, do any of the following:
   • To add another activity, drag it from the Activities panel to the desired position in the workflow diagram, or right-click the activity that precedes the new one.

     When you right-click, the list contains activities that would logically follow the current one. When you add an activity in this way, you can automatically bind it to the one you right-clicked. For example, right-click an Overlay activity and click Add Feature Layer to create a new Display Manager layer that stores the output of the Overlay operation.

   • To delete an activity, select the activity and press Delete on your keyboard.
   • To turn the run-time prompt for an activity on or off, select or clear the Prompt at run time checkbox in the Parameters panel.

     When the run-time prompt is on, anyone running this workflow must provide the input for this activity. For example, the person running the workflow must provide data store connection information for a Connect To Data Store activity.

   • To disable or enable the activity, select or clear the Enabled checkbox in the Parameters panel.

     Disable an activity temporarily to resolve problems with a workflow. If you are not sure which activity is causing the problem, disable them one at a time when you run the workflow. This can isolate the issue.

   • Undo or redo any changes during this editing session using
8. Save any changes to the workflow by clicking at the top of the Workflow Designer window.

   To save your changes as a new workflow, click instead.

   Workflows saved in AutoCAD Map 3D 2026 toolset format (XAML) cannot be opened in AutoCAD Map 3D 2024. If you have workflow file (XOML) saved in a previous release and want to run it in AutoCAD Map 3D 2026 toolset, you need to open and save it as a Map 3D 2026 Workflow File (XAML) first.

9. In AutoCAD Map 3D, go to Tools tabWorkflow panel and open the workflow file. Click to run the workflow and validate the activities.

   In the log window, find the row for the activity that failed. The description column explains the error.

10. Optionally, click to print the workflow.

Create a workflow

1. In the Planning And Analysis workspace, click Tools tabWorkflow panelNew.
2. To create a workflow that uses multiple data connections, add a Parallel activity.
   • In the Workflow Designer, click the System panel header on the right side of the window.
   • Drag the Parallel activity to the diagram area in the Workflow Designer (where you see Drag And Drop Map Activities Here).

     Use a separate Sequence activity for each connection. By default, the Parallel activity has two Sequence activities. If you need more, drag them into the Parallel activity.

   • For each connection, drag a Connect To Data Store activity into a Sequence activity.
   • To create a layer for these connections, use an Add Feature Layer activity. Drag this activity just below each Connect To Data Store activity (within the Sequence activity for that connection).
3. To create a workflow that uses a single data store, do the following:
   • Drag the Connect To Data Store activity to the diagram area in the Workflow Designer (where you see Drag And Drop Map Activities Here).
   • Optionally, create a layer for the connection by dragging a Create Feature Layer activity just below it.
4. Add any other desired activities.

   For information about the available activities and their parameters, see Workflow Activity Input Dialogs. For a tutorial on workflows, see Lesson 5: Edit a Predefined Workflow.

   Note: For some utility activities (For Each, If/Else, and While), fill in the parameters inside the activity box.
5. Save any changes to the workflow by clicking at the top of the Workflow Designer window.

   To save your changes as a new workflow, click instead.

   Workflows saved in AutoCAD Map 3D 2026 toolset format (XAML) cannot be opened in AutoCAD Map 3D 2024. If you have workflow file (XOML) saved in a previous release and want to run it in AutoCAD Map 3D 2026 toolset, you need to open and save it as a Map 3D 2026 Workflow File (XAML) first.

6. In AutoCAD Map 3D, go to Tools tabWorkflow panel and open the workflow file. Click to run the workflow and validate the activities.

   In the log window, find the row for the activity that failed. The description column explains the error.

7. Optionally, click to print the workflow.
