#include "maxheap.h"
#include "coreexp.h"
#include <WTypes.h>
#include "geom/acolor.h"
#include <Geom/ipoint2.h>
#include "baseinterface.h"
#include "strbasic.h"
#include "paramtype.h"

Classes
class	HSVCallback
class	ColorPicker
class	ColPick

Macros
#define	MAXCOLORS 16
#define	WM_ADD_COLOR (WM_USER+2321)
	Sent by the color picker to add custom colors to object color palette.
#define	DEFAULT_COLPICK_CLASS_ID 1

Functions
CoreExport INT_PTR	HSVDlg_Do (HWND hwndOwner, DWORD lpc, IPoint2 spos, HSVCallback callBack, const MCHAR name)
CoreExport INT_PTR	HSVDlg_Do (HWND hwndOwner, AColor lpc, IPoint2 spos, HSVCallback callBack, const MCHAR name)
CoreExport void	RGBtoHSV (DWORD rgb, int ho, int so, int *vo)
CoreExport DWORD	HSVtoRGB (int H, int S, int V)
CoreExport void	HSVtoHWBt (int h, int s, int v, int ho, int w, int *bt)
CoreExport void	HWBttoHSV (int h, int w, int bt, int ho, int s, int *v)
CoreExport Color	RGBtoHSV (Color rgb)
CoreExport Color	HSVtoRGB (Color hsv)
CoreExport ColorPicker *	CreateColorPicker (HWND hwndOwner, DWORD initColor, IPoint2 spos, HSVCallback pcallback, const MCHAR *name, int objClr=0, ColorContext context=ColorContext::COLOR_SPACE_CONTEXT_NONE)
CoreExport ColorPicker *	CreateColorPicker (HWND hwndOwner, AColor initColor, IPoint2 spos, HSVCallback pcallback, const MCHAR *name, int objClr=0, ColorContext context=ColorContext::COLOR_SPACE_CONTEXT_NONE)
CoreExport void	SetCPInitPos (IPoint2 &pos)
CoreExport IPoint2	GetCPInitPos (void)
CoreExport ColPick *	SetCurColPick (ColPick *colpick)
CoreExport ColPick *	GetCurColPick ()

Macro Definition Documentation

◆ MAXCOLORS

#define MAXCOLORS 16

◆ WM_ADD_COLOR

#define WM_ADD_COLOR (WM_USER+2321)

Sent by the color picker to add custom colors to object color palette.

wParam will have the color packed in DWORD (legacy behavior).
if lParam is not null, then it's a pointer to AColor holding the scene-referred color (new behavior).

◆ DEFAULT_COLPICK_CLASS_ID

#define DEFAULT_COLPICK_CLASS_ID 1

Function Documentation

◆ HSVDlg_Do() [1/2]

CoreExport INT_PTR HSVDlg_Do	(	HWND	hwndOwner,
		DWORD *	lpc,
		IPoint2 *	spos,
		HSVCallback *	callBack,
		const MCHAR *	name )

extern

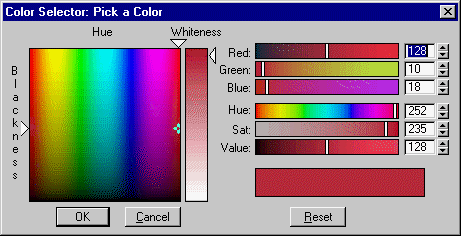

Remarks: This method puts up the modal HSV color picker dialog box. This dialog appears below:

Parameters:: HWND hwndOwner

Owner window handle.

DWORD *lpc

Pointer to color to be edited. See COLORREF.

IPoint2 *spos

The starting position of the upper left corner of the dialog window. This is set to the ending position when the user is done. You may pass NULL to get the default location.

HSVCallback *callBack

Callback object whose procs are called when the color changes. See Class HSVCallback.

MCHAR *name

The name of color being edited to appear in the title bar.

Returns: Returns TRUE if the user exists the dialog with OK, otherwise returns FALSE.

◆ HSVDlg_Do() [2/2]

CoreExport INT_PTR HSVDlg_Do	(	HWND	hwndOwner,
		AColor *	lpc,
		IPoint2 *	spos,
		HSVCallback *	callBack,
		const MCHAR *	name )

extern

Remarks: This method puts up the modal HSV color picker dialog box.

Parameters:: HWND hwndOwner

Owner window handle.

AColor *lpc

Pointer to color to be edited.

IPoint2 *spos

The starting position of the upper left corner of the dialog window. This is set to the ending position when the user is done. You may pass NULL to get the default location.

HSVCallback *callBack

Callback object whose procs are called when the color changes. See Class HSVCallback.

MCHAR *name

The name of color being edited to appear in the title bar.

Returns: Returns TRUE if the user exists the dialog with OK, otherwise returns FALSE.

◆ CreateColorPicker() [1/2]

CoreExport ColorPicker * CreateColorPicker	(	HWND	hwndOwner,
		DWORD	initColor,
		IPoint2 *	spos,
		HSVCallback *	pcallback,
		const MCHAR *	name,
		int	objClr = 0,
		ColorContext	context = ColorContext::COLOR_SPACE_CONTEXT_NONE )

Remarks: Call this function to bring up the modeless color picker.

: Parameters:
HWND hwndOwner

The owner window handle.

DWORD initColor

The initial color for the color picker.

IPoint2* spos

The initial screen position of the upper left corner. NULL may be passed for the default location.

HSVCallback *pcallback

The callback object to respond to color change events.

MCHAR *name

The title string in the dialog.

int objClr=0

A BOOLEAN used to indicate that the ColorPicker is being used to set the object color from the control panel. In all other cases, the default value of 0 should be used.

Returns: A pointer to a ColorPicker object. Returned object is owned by the system and pointer may become dangling after the HSVCallback::BeingDestroyed() called on the passed pcallback object.

◆ CreateColorPicker() [2/2]

CoreExport ColorPicker * CreateColorPicker	(	HWND	hwndOwner,
		AColor	initColor,
		IPoint2 *	spos,
		HSVCallback *	pcallback,
		const MCHAR *	name,
		int	objClr = 0,
		ColorContext	context = ColorContext::COLOR_SPACE_CONTEXT_NONE )

◆ SetCPInitPos()

CoreExport void SetCPInitPos ( IPoint2 & pos )

Remarks: Establishes the color picker initial screen position.

Parameters:: IPoint2 &pos

The upper left corner screen coordinate for the color picker.

◆ GetCPInitPos()

CoreExport IPoint2 GetCPInitPos ( void )

Remarks: Retrieves the color picker initial screen position.

Returns: The screen coordinates of the color picker. This is the coordinate of the upper left corner.

◆ SetCurColPick()

CoreExport ColPick * SetCurColPick ( ColPick * colpick )

Remarks: This function is available in release 3.0 and later only.

This global function is used internally to establish the current color picker used.

Parameters:: ColPick *colpick

Points to the color picker to use.

Returns: A pointer to the current color picker.

◆ GetCurColPick()

CoreExport ColPick * GetCurColPick ( )

Remarks: This function is available in release 3.0 and later only.

Returns a pointer to the current color picker.
