FBCharacterPose Class Reference

Used to work with character poses. More...

#include <pyfbsdk_generated.h>

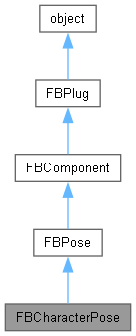

Inheritance diagram for FBCharacterPose:

Public Member Functions
	FBCharacterPose (str pName)
	Public constructor.
	ApplyPoseCandidate ()
	After setting the candidate on the skeleton node, calling this function will allow subsequent call to get the TRS value of a skeleton node to return the candidate value.
	ClearCharacterExtensionsPose ()
	Clear only the pose of the character extensions (omit the character).
	ClearCharacterPose ()
	Clear only the pose of the character (omit the extensions).
	ClearPose ()
	Clear all the data of the pose.
	CopyFrom (FBCharacterPose pFromPose)
	Copy everything from a given object.
	CopyPose (FBCharacter pCharacter)
	Copy the pose of a character and its extensions.
	CopyPoseCharacter (FBCharacter pCharacter)
	Copy the pose of only the character (omit the extensions).
	CopyPoseCharacterExtension (FBCharacterExtension pCharacterExtension)
	Copy the pose of a single character extension.
	CopyPoseCharacterExtensions (FBCharacter pCharacter)
	Copy the pose of only the character extensions (omit the character).
	CopyPoseCharacterExtensionsFrom (FBCharacterPose pFromPose)
	Copy the pose data of only the character extensions from a given pose.
	CopyPoseCharacterFrom (FBCharacterPose pFromPose)
	Copy the pose data of only the character from a given pose.
	CopyPoseDataFrom (FBCharacterPose pFromPose)
	Copy all the pose data from a given pose.
str	GetCharacterExtensionNameFromPose (FBObjectPose pCharacterExtensionPose)
	Get the name of the character extension for the specified pose.
FBObjectPose	GetCharacterExtensionPose (str pCharacterExtensionName)
	Get the pose of a character extension.
FBObjectPose	GetCharacterExtensionPoseAt (int pIndex)
	Get the pose of a character extension.
int	GetCharacterExtensionPoseCount ()
	Get the number of character extension stored in the pose.
	GetExtraBoneParentRotationOffset (FBRVector pR, int pIndex)
	Get the extra bone transformation offset.
	GetExtraBoneTransform (FBVector3d pT, FBVector3d pR, FBVector3d pS, int pIndex)
	Get the extra bone transformation.
	GetExtraBoneTransformOffset (FBVector3d pT, FBVector3d pR, FBVector3d pS, int pIndex)
	Get the extra bone transformation offset.
	GetMirrorPlaneEquation (FBVector4< double > pMirrorPlaneEquation, FBCharacter pCharacter, FBCharacterPoseOptions pCharacterPoseOptions)
	Get the mirror plane equation that would be used to mirror according to the CharacterPoseOptions.
	GetMirrorPlaneEquation (FBMatrix pMirrorPlaneEquation, FBCharacter pCharacter, FBCharacterPoseOptions pCharacterPoseOptions)
	Get the mirror plane equation that would be used to mirror according to the CharacterPoseOptions.
FBObjectPose	GetOrCreateCharacterExtensionPose (str pCharacterExtensionName)
	Get the pose of a character extension and create it if necessary.
bool	IsCharacterExtensionPoseStored (str pCharacterExtensionName)
	Is the pose of the character extension stored in the pose?
bool	IsCharacterPoseStored ()
	Is the pose of the character stored in the pose?
	PastePose (FBCharacter pCharacter, FBCharacterPoseOptions pCharacterPoseOptions)
	Paste the pose of a character and its extensions.
	PastePoseCharacter (FBCharacter pCharacter, FBCharacterPoseOptions pCharacterPoseOptions)
	Paste the pose of only the character (omit the extensions).
	PastePoseCharacterExtension (FBCharacterExtension pCharacterExtension, FBCharacterPoseOptions pCharacterPoseOptions)
	Paste the pose of a single character extension.
	PastePoseCharacterExtensions (FBCharacter pCharacter, FBCharacterPoseOptions pCharacterPoseOptions)
	Paste the pose of only the character extensions (omit the character).
	RemoveCharacterExtensionPose (str pCharacterExtensionName)
	Remove the pose of a character extension.
	RemoveCharacterExtensionPoseAt (int pIndex)
	Remove the pose of a character extension.
Public Member Functions inherited from FBPose
	FBPose (str pName)
	Constructor.
int	AddNode (FBModel pObject, FBMatrix pMatrix=None, bool pIsLocalMatrix=False)
	Add a new pose node.
	CreatePoseThumbnail ()
	Create an image thumbnail for the current pose.
int	Find (str pNodeName)
	Look in this pose if the given node is present.
int	GetNodeCount ()
	Returns the number of pose nodes stored.
FBMatrix	GetNodeMatrix (int pIndex)
	Get the pose node matrix.
str	GetNodeName (int pIndex)
	Get the pose node at specified index.
FBModel	GetNodeObject (int pIndex)
	Get the pose node object.
bool	IsNodeLocalMatrix (int pIndex)
	Get the type of the Matrix for a given node.
	RemoveNode (int pIndex)
	Remove the pose node at specified index.
	SetIsNodeLocalMatrix (int pIndex, bool pIsNodeLocalMatrix)
	Set the type of the Matrix for a given node.
	SetNodeMatrix (int pIndex, FBMatrix pMatrix)
	Set the pose node matrix.
	SetNodeObject (int pIndex, FBModel pObject)
	Set the pose node object.
Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.
str	ClassName ()
	Get the class name.
	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.
	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.
bool	FBCreate ()
	Open Reality Creation function.
	FBDelete ()
	Open Reality deletion function.
	FBDestroy ()
	Open Reality destruction function.
FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).
bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.
FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.
	HardSelect ()
	HardSelect.
bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.
bool	Is (int pTypeId)
	Returns true if object is of type TypeId.
bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.
bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.
int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.
bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.
FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.
	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.
	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.
	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.
	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Additional Inherited Members
Public Attributes inherited from FBPose
FBPoseType	Type
	Read Only Property: Type of the pose (bind pose or rest pose)
Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.
str	LongName
	Read Write Property: Name and namespace for object.
str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.
FBListComponent	Parents
	List: Parents.
FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.
bool	Selected
	Read Write Property: Selected property.
int	TypeInfo
	Contains the Type information of the object.
Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.
int	TypeInfo
	TypeInfo.

Detailed Description

Used to work with character poses.

This class exposes the object used to store the pose of objects.

See sample: MirrorPoseOverTime.py.

Constructor & Destructor Documentation

FBCharacterPose()

FBCharacterPose

(

str

pName

)

Public constructor.

This constructor is used to create a new object.

Parameters

pName

Object name.

Member Function Documentation

ApplyPoseCandidate()

ApplyPoseCandidate

(

)

After setting the candidate on the skeleton node, calling this function will allow subsequent call to get the TRS value of a skeleton node to return the candidate value.

ClearCharacterExtensionsPose()

ClearCharacterExtensionsPose

(

)

Clear only the pose of the character extensions (omit the character).

ClearCharacterPose()

ClearCharacterPose

(

)

Clear only the pose of the character (omit the extensions).

ClearPose()

ClearPose

(

)

Clear all the data of the pose.

CopyFrom()

CopyFrom

(

FBCharacterPose

pFromPose

)

Copy everything from a given object.

Parameters

pFromPose

Pose from which to copy.

Remarks

Will copy everything, including the object name, properties, data etc. Objects will be identical.

CopyPose()

CopyPose

(

FBCharacter

pCharacter

)

Copy the pose of a character and its extensions.

Parameters

pCharacter

Character to copy the pose from.

CopyPoseCharacter()

CopyPoseCharacter

(

FBCharacter

pCharacter

)

Copy the pose of only the character (omit the extensions).

Parameters

pCharacter

Character to copy the pose from.

CopyPoseCharacterExtension()

CopyPoseCharacterExtension

(

FBCharacterExtension

pCharacterExtension

)

Copy the pose of a single character extension.

Parameters

pCharacterExtension

Character extension to copy the pose from.

CopyPoseCharacterExtensions()

CopyPoseCharacterExtensions

(

FBCharacter

pCharacter

)

Copy the pose of only the character extensions (omit the character).

Parameters

pCharacter

Character to copy the pose of the extensions from.

CopyPoseCharacterExtensionsFrom()

CopyPoseCharacterExtensionsFrom

(

FBCharacterPose

pFromPose

)

Copy the pose data of only the character extensions from a given pose.

Parameters

pFromPose

Pose from which to copy the data.

CopyPoseCharacterFrom()

CopyPoseCharacterFrom

(

FBCharacterPose

pFromPose

)

Copy the pose data of only the character from a given pose.

Parameters

pFromPose

Pose from which to copy the data.

CopyPoseDataFrom()

CopyPoseDataFrom

(

FBCharacterPose

pFromPose

)

Copy all the pose data from a given pose.

Parameters

pFromPose

Pose from which to copy the data.

Remarks

Will copy all the data of the pose.

GetCharacterExtensionNameFromPose()

str GetCharacterExtensionNameFromPose

(

FBObjectPose

pCharacterExtensionPose

)

Get the name of the character extension for the specified pose.

Parameters

pCharacterExtensionPose

Pose of a character extension to check its name.

Returns

The name of the character extension (It is the label name of the character extension).

GetCharacterExtensionPose()

FBObjectPose GetCharacterExtensionPose

(

str

pCharacterExtensionName

)

Get the pose of a character extension.

Parameters

pCharacterExtensionName

Name of the character extension pose to get (It is the label name of the character extension).

Returns

The pose of the character extension, NULL if not found.

GetCharacterExtensionPoseAt()

FBObjectPose GetCharacterExtensionPoseAt

(

int

pIndex

)

Get the pose of a character extension.

Parameters

pIndex

Index of the character extension pose to get.

Returns

The pose of the character extension.

GetCharacterExtensionPoseCount()

int GetCharacterExtensionPoseCount

(

)

Get the number of character extension stored in the pose.

Returns

Number of character extension stored in the pose.

GetExtraBoneParentRotationOffset()

GetExtraBoneParentRotationOffset	(	FBRVector	pR,
		int	pIndex
	)

Get the extra bone transformation offset.

Parameters

pR	A vector that will contains the parent rotation offset value on return.
pIndex	Index of the extra bone to get.

GetExtraBoneTransform()

GetExtraBoneTransform	(	FBVector3d	pT,
		FBVector3d	pR,
		FBVector3d	pS,
		int	pIndex
	)

Get the extra bone transformation.

Parameters

pT	A vector that will contains the translation value on return.
pR	A vector that will contains the rotation value on return.
pS	A vector that will contains the scale value on return.
pIndex	Index of the extra bone to get.

GetExtraBoneTransformOffset()

GetExtraBoneTransformOffset	(	FBVector3d	pT,
		FBVector3d	pR,
		FBVector3d	pS,
		int	pIndex
	)

Get the extra bone transformation offset.

Parameters

pT	A vector that will contains the translation offset value on return.
pR	A vector that will contains the rotation offset value on return.
pS	A vector that will contains the scale offset value on return.
pIndex	Index of the extra bone to get.

GetMirrorPlaneEquation() [1/2]

GetMirrorPlaneEquation	(	FBMatrix	pMirrorPlaneEquation,
		FBCharacter	pCharacter,
		FBCharacterPoseOptions	pCharacterPoseOptions
	)

Get the mirror plane equation that would be used to mirror according to the CharacterPoseOptions.

Parameters

pMirrorPlaneEquation	Out: Mirror plane equation.
pCharacter	Character to receive the pose.
pCharacterPoseOptions	Options used to paste the pose.

GetMirrorPlaneEquation() [2/2]

GetMirrorPlaneEquation	(	FBVector4< double >	pMirrorPlaneEquation,
		FBCharacter	pCharacter,
		FBCharacterPoseOptions	pCharacterPoseOptions
	)

Get the mirror plane equation that would be used to mirror according to the CharacterPoseOptions.

Parameters

pMirrorPlaneEquation	Out: Mirror plane equation.
pCharacter	Character to receive the pose.
pCharacterPoseOptions	Options used to paste the pose.

GetOrCreateCharacterExtensionPose()

FBObjectPose GetOrCreateCharacterExtensionPose

(

str

pCharacterExtensionName

)

Get the pose of a character extension and create it if necessary.

Parameters

pCharacterExtensionName

Name of the character extension pose to get (It is the label name of the character extension).

Returns

The pose of the character extension.

Remarks

Use this function to manually add a pose of a character extension.

IsCharacterExtensionPoseStored()

bool IsCharacterExtensionPoseStored

(

str

pCharacterExtensionName

)

Is the pose of the character extension stored in the pose?

Parameters

pCharacterExtensionName

Name of the character extension.

Returns

true if the pose of the character extension stored in the pose.

IsCharacterPoseStored()

bool IsCharacterPoseStored

(

)

Is the pose of the character stored in the pose?

Returns

true if the pose of the character stored in the pose.

PastePose()

PastePose	(	FBCharacter	pCharacter,
		FBCharacterPoseOptions	pCharacterPoseOptions
	)

Paste the pose of a character and its extensions.

Parameters

pCharacter	Character to paste the pose to.
pCharacterPoseOptions	Options used to specify how to paste.

Remarks

Supports the match and mirror options.

When pasting in body part, the selected parts and extensions of the character will be pasted.

PastePoseCharacter()

PastePoseCharacter	(	FBCharacter	pCharacter,
		FBCharacterPoseOptions	pCharacterPoseOptions
	)

Paste the pose of only the character (omit the extensions).

Parameters

pCharacter	Character to paste the pose to.
pCharacterPoseOptions	Options used to specify how to paste.

Remarks

Does not support the match and mirror options.

PastePoseCharacterExtension()

PastePoseCharacterExtension	(	FBCharacterExtension	pCharacterExtension,
		FBCharacterPoseOptions	pCharacterPoseOptions
	)

Paste the pose of a single character extension.

Parameters

pCharacterExtension	Character extension to paste the pose to.
pCharacterPoseOptions	Options used to specify how to paste.

Remarks

Does not support the match and mirror options.

PastePoseCharacterExtensions()

PastePoseCharacterExtensions	(	FBCharacter	pCharacter,
		FBCharacterPoseOptions	pCharacterPoseOptions
	)

Paste the pose of only the character extensions (omit the character).

Parameters

pCharacter	Character to paste the pose of the extensions to.
pCharacterPoseOptions	Options used to specify how to paste.

Remarks

Does not support the match and mirror options.

RemoveCharacterExtensionPose()

RemoveCharacterExtensionPose

(

str

pCharacterExtensionName

)

Remove the pose of a character extension.

Parameters

pCharacterExtensionName

Name of the character extension pose to remove (It is the label name of the character extension).

RemoveCharacterExtensionPoseAt()

RemoveCharacterExtensionPoseAt

(

int

pIndex

)

Remove the pose of a character extension.

Parameters

pIndex

Index of the character extension pose to remove.
