Fill Analysis Quick Start Tutorial

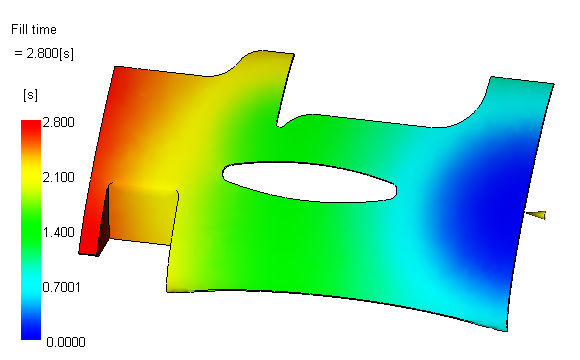

In this tutorial, you simulate the filling phase in a part. The feed system is not included. The filling phase is the most important phase of the injection molding cycle. If there are problems with the filling of a part, the part quality is not optimal.

Download the files for this tutorial from Autodesk Knowledge Network.

In this tutorial, you will:

1. Create a project.
2. Import a model.
3. Set the injection location.
4. Select the material and analyze.
5. Review results.
6. Move the gate.
7. Compare results.
