Assign Velocity = 7500 mm/s to two inlets

Click Boundary Conditions from the Setup tab:

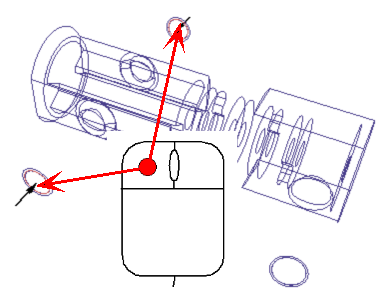

Select the two Inlet Faces by left clicking on each.

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

• Click Edit from the context toolbar:

• Click Edit from the Boundary Conditions context panel:

Velocity Magnitude = 7500

Click Apply.

For more about Velocity Boundary Conditions
