Assign 50°C to the High Temperature Inlet

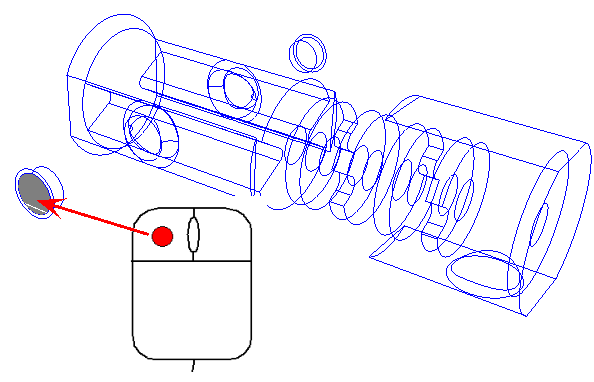

Select the high temperature inlet

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

• Click Edit from the context toolbar:

• Click Edit from the Boundary Conditions context panel:

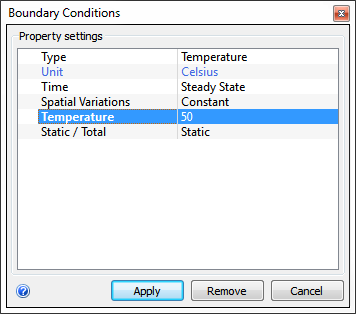

Type = Temperature

Units = Celsius

Temperature = 50

Click Apply.

Assign 7°C to the Cold Temperature Inlet

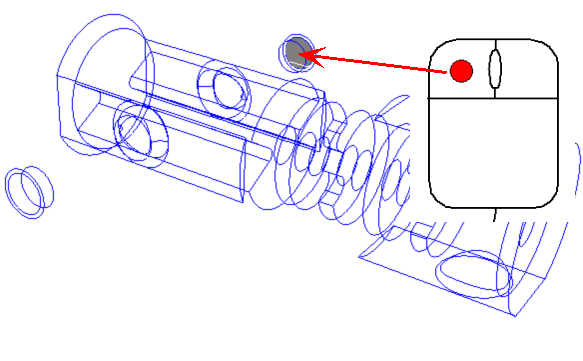

Select the low temperature inlet

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

• Click Edit from the context toolbar:

• Click Edit from the Boundary Conditions context panel:

Type = Temperature

Units = Celsius

Temperature = 7

Click Apply.

For more about Temperature Boundary Conditions
