Assign the Transient Temperature Boundary Condition

Select the inlet.

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

• Click Edit from the context toolbar:

• Click Edit from the Boundary Conditions context panel:

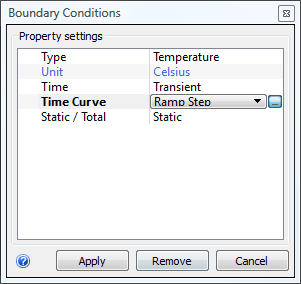

Type = Temperature

Units = Celsius

Time = Transient

Time Curve = Ramp Step

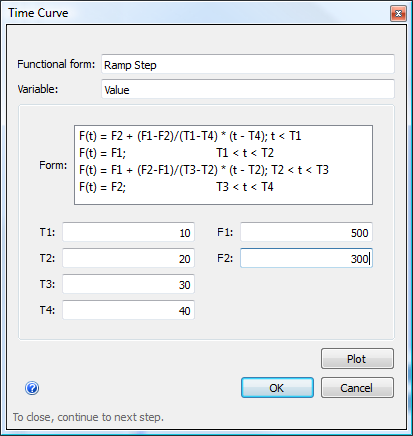

On the Time Curve dialog:

T1 = 10, T2 = 20, T3 = 30, T4 = 40

F1 = 500, F2 = 300

Click OK.

Click Apply.

For more about transient boundary conditions
