SurfDeform Modifier (Object Space)

The SurfDeform modifier works the same way as the PatchDeform modifier, except that it uses a NURBS Point or CV surface instead of a patch surface to apply surface deformation.

• Select an object. > Modify panel > Modifiers List > Object Space Modifiers > SurfDeform
• Select an object. > Modify panel > Modifiers List > World Space Modifiers > SurfDeform (WSM)
• Default menu: Select an object. > Modifiers menu > Animation > Surf Deform
• Default menu: Select an object. > Modifiers menu > Animation > Surf Deform (WSM)
• Alt menu: Select an object. > Modifiers menu > Conform > Surf Deform
• Alt menu: Select an object. > Modifiers menu > Conform > Surf Deform (WSM)

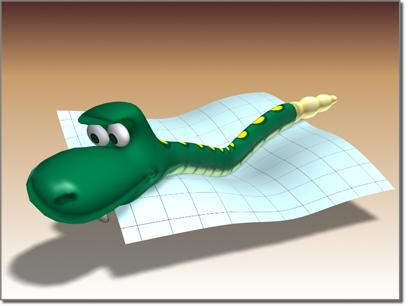

SurfDeform shapes how the snake rests.

Procedures

To use the SurfDeform modifier:

1. Select an object.
2. From the Modify panel > Modifier List, choose Object Space Modifiers > SurfDeform.
3. On the Parameters rollout, click Pick Surface.
4. Select a NURBS Point or CV surface.
5. Deform the object by adjusting the controls in the Surface Deform group.

Interface

See PatchDeform modifier for a description of the user interface.
