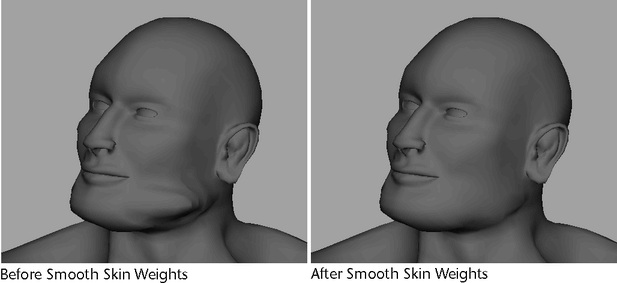

Smooth skin weights

Note: Smooth Skin Weights is not available when skinning layers are present. Use the Smooth brush in the Skin Tools Paint tab or Smooth mode in Set Weights. You can also delete the skinning layers before you use Smooth Skin Weights.

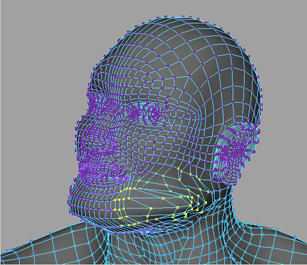

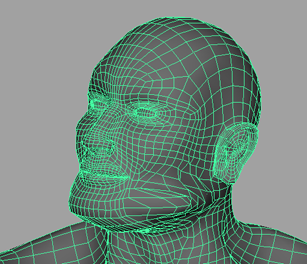

  1. Select the bound surface or the vertices whose skin weights you want to smooth.

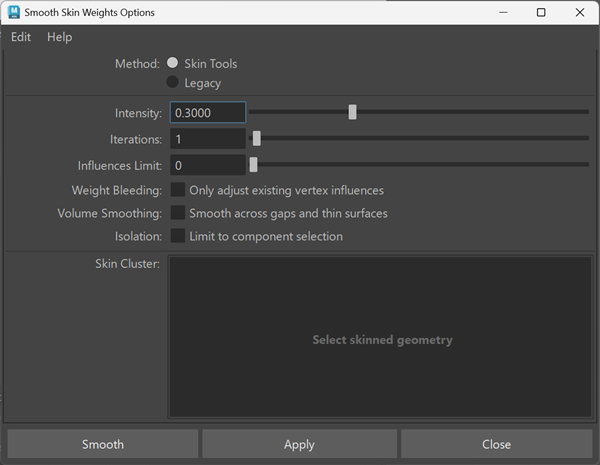

  2. Select Skin > Smooth Skin Weights > Options.
  3. Select a Method:
    • Select Skin Tools to use the default Skin Tools smoothing algorithm.
    • Select Legacy to use the legacy smoothing algorithm.
  4. If you selected Legacy, set Smooth Threshold as needed.

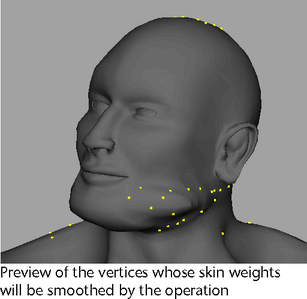

  5. To preview the affected vertices, turn on Preview and click Apply.
  6. Click Smooth.

When you use the Skin Tools method on a skinCluster without skinning layers, Maya creates a temporary layer for the smoothing operation and removes the layer when the operation is complete.
