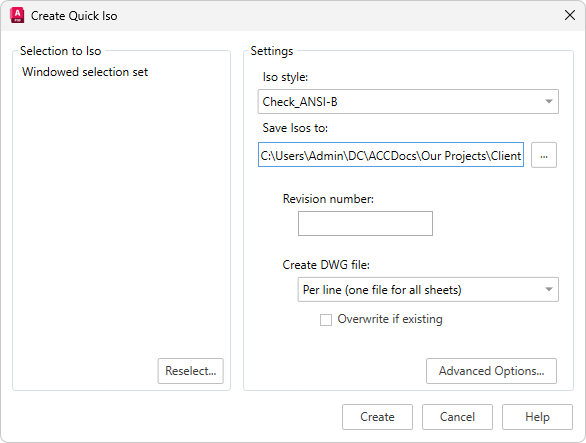

Creates a quick isometric drawing from a selection set or line numbers.
Quick Isos can be created from line numbers or by selecting objects in the 3D model. If you use a selection set, the output drawing name is UserDefinedLine.
Selection to Iso
Specifies the selection set from which the quick iso is created. If you use a selection set, the output drawing name is UserDefinedLine.
- Reselect
-
Changes the selection set or selects by Line number.
Settings
Specifies isometric output settings:
- Iso Style
-
Specifies the Iso Style to use. You can create and modify Iso Styles in Project Setup.
- Save Isos To
-
Specifies the folder where isometric drawings are created.
- Revision Number
-
Sets the revision number which can display in the title block.
- Create DWG file
-
Specifies whether all Iso sheets for the same line number are generated in a single Iso drawing file or a separate Iso drawing is created per sheet.
- Overwrite if Existing
-
Specifies whether to overwrite previously generated files.
- Advanced Options
-
Displays the Advanced Iso Creation Options dialog box.
