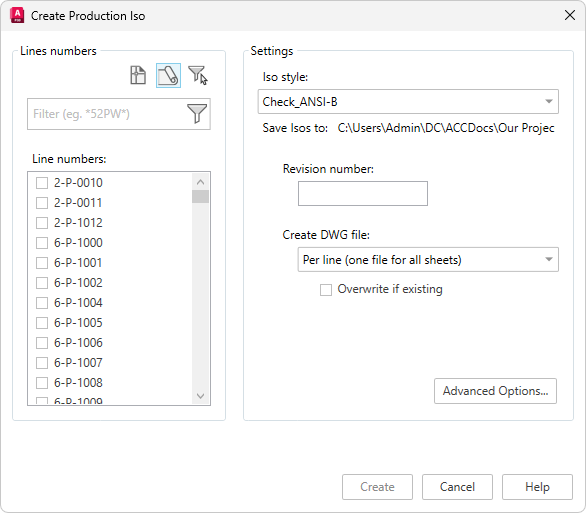

Creates a production isometric drawing. Specifies iso type, overwrite options, and DWF output.
Display Lines
- Drawing
-
Lists line numbers that are in the drawing.
- Project
-
Lists all line numbers in the project.
- Filter
-
Lists line numbers in the current selection set.
Line Numbers
Sets the lines to include in the isometric drawing or PCF.
Right-click in the Line Numbers area to Select all lines or Clear all lines.
Settings
Specifies isometric output settings:
- Iso Style
-
Specifies the Iso Style to use. You can create and modify Iso Styles in Project Setup.
- Save Isos to
-
Specifies the folder where isometric drawings are created.
- Revision Number
-
Sets the revision number which can display in the title block.
- Create DWG file
-
Specifies whether all Iso sheets for the same line number are generated in a single Iso drawing file or a separate Iso drawing is created per sheet.
- Overwrite if Existing
-
If selected, existing isometric drawings with the same name are overwritten. If clear, new isometric drawings are renamed.
- Advanced Options
-
Displays the Advanced Iso Creation Options dialog box.
Note: When Create is selected, a progress bar displays at the bottom of the dialog box, showing details of the iso creation.
