Control rebar visibility across spliced rebar sets more efficiently.

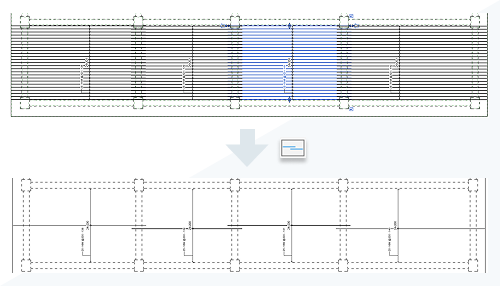

Revit 2027.2 introduces new presentation options for spliced rebar sets, including Middle of Splice Chain, which automatically selects and displays the corresponding middle bars throughout an entire splice chain. This makes it easier to produce clear reinforcement drawings while maintaining accurate representation of lap splices and staggered splice arrangements. Users can also leverage enhanced custom selection tools to quickly control visible bars across connected sets, reducing manual selection effort and improving documentation workflows for both shape-driven and free-form rebar.
This feature is described on the product road map.
