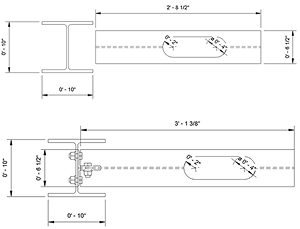

Improved annotation behavior and graphical consistency for steel workflows that transition from design to fabrication.
- In-family lines for showing the hidden lines from the member web are now interrupted by any native Revit or Steel Connection cut.
- Openings on steel columns are kept in position when applying steel connections.
- Any dimensions created in the design phase are kept when applying steel connections and transitioning the steel members to fabrication.
See Annotation.
