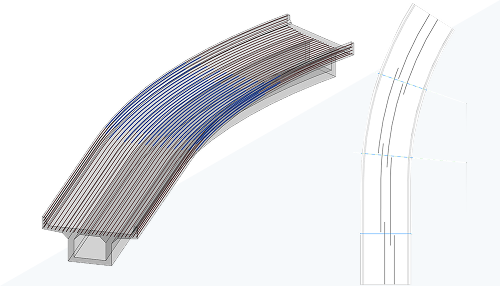

Introduced improved longitudinal free form rebar splicing capabilities, to improve rebar detailing productivity for bridges and tunnels.
Key enhancements include:

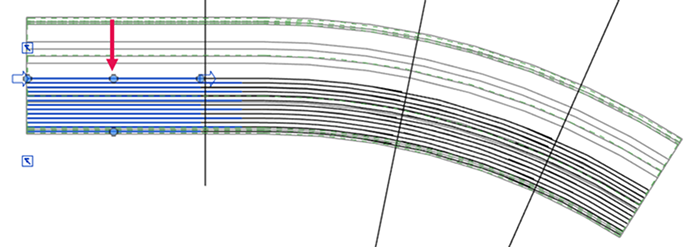

- Straight parametric splicing along selected lines.

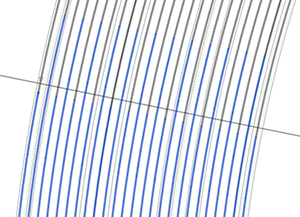

- Editable bar presentation; choose which bars should be visible.

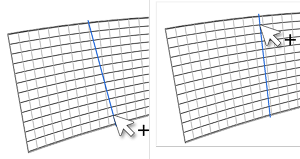

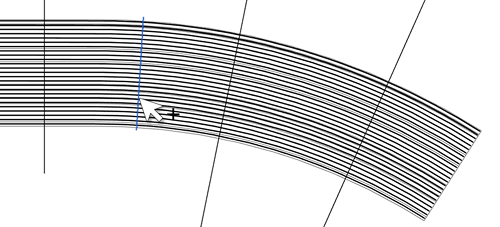

- Splice lines are placed perpendicular to the bar you are hovering over during placement.
- Ability to splice individual bars or entire sets.
- Optional staggered splicing using a splice type with staggered offset.
- Editable splice connection, lap length, and placement.
Note: When removed, the bars are joined back.
- Bars remain aligned and move together when adjusted.
This feature is described on the product road map.
See Splice Rebar.
