What's New in Autodesk® Structural Bridge Design 2022

Learn about the new features introduced in the 2022 release of Structural Bridge Design.

2022.1 Hotfix 1 Updates

• The cover to design section reinforcement is detailed in the section data report.

• Access to the Structural Analysis results is available from the analysis progress form.

2022.1 Updates

Robot Structural Analysis File Creation

Create Robot Structural Analysis files from an Autodesk Structural Bridge Design Model.

Interaction Surface Automation

Automation creates a 3D interaction surface for any design section.

Learning Content

Updated online learning content

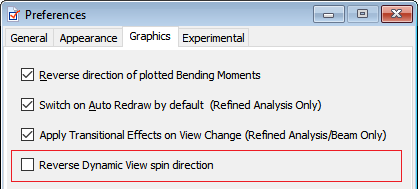

Switch Rotation Axis Option

Added Reverse Dynamic View spin direction functionality.

Australian Standards 5100 (2017) Errors and Omissions Update

Address errors and omissions in Australian Standards 2017 Amendment 1.

2022 Updates

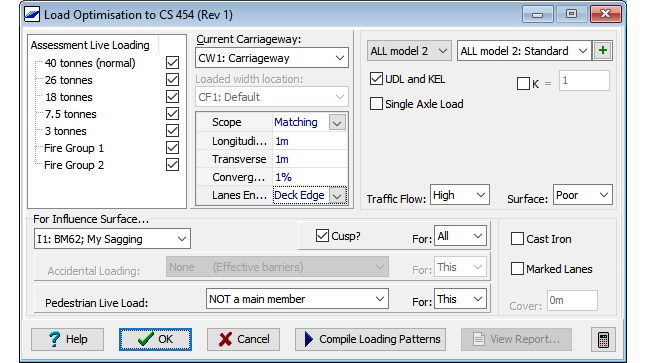

British Standards Assessment Update

CS 454 Assessment of highway bridges and structures and CS 455 Assessment of concrete highway bridges and structures are now implemented.

JSON Code

Added the ability to read and write files in JSON format.

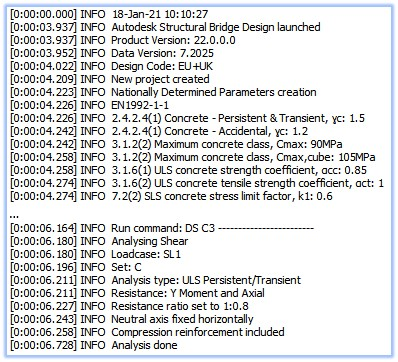

Automation of Design Sections

Automate Structural Bridge Design tasks from the command line using JSON.

Automation of Design Beams

Automate from the command line for all types of beam analysis including design parameters.

Eurocode Design Section Shear Calculation

Design section shear calculation now provides addition enhancements.

Miscellaneous Enhancements

Several additional enhancements have been made to improve your workflows.
