Conceptual Mass Energy Analysis(Vasari) – Quick Start

Quick start on process of building energy simulation using conceptual mass in Vasari.

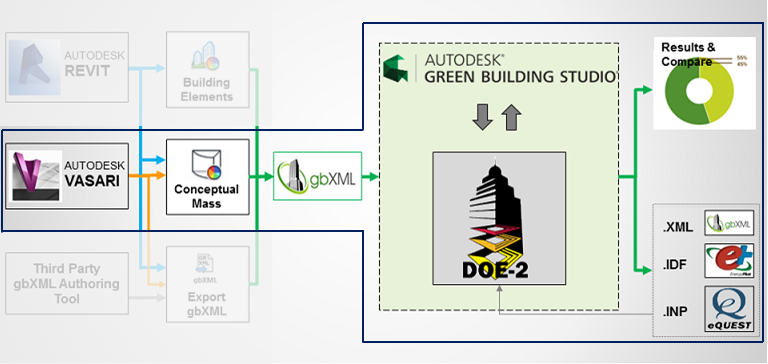

Energy Analysis for Autodesk® Vasari using conceptual masses is intended to provide insight into the role of building form (size, shape, orientation, glazing percentages, shading) and materials on building energy use from the earliest stages of the design process.

The following instructions describe how to perform an energy analysis using conceptual masses in Vasari. Use these instructions to quickly create a baseline simulation that uses default energy settings. Then see the Energy Analysis using Conceptual Mass Energy Analysis-Autodesk Vasari – Detailed Workflow to learn how to modify the conceptual mass model and its energy settings to refine the analysis.

Note: Important - If you’d like to use automatic zoning, Autodesk Vasari is the preferred tool. It more closely follows industry conventions and is better at breaking-up the model to include proper perimeter and core zones. When using conceptual models for energy analysis in Revit, you should use Revit’s drawing tools like an “egg-shell” modeler and draw the discrete analytical spaces.

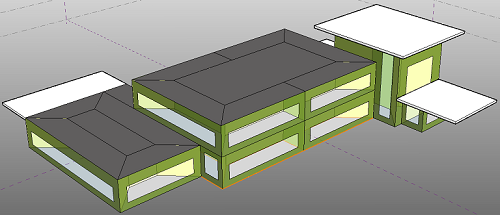

Auto-zoning in Autodesk Vasari	Analytical spaces modeled in Revit

If you’d like to download a model to use for the analysis, here is a Health Center model located in San Francisco.

Sign in to Autodesk 360.	To use this feature, you must sign in to Autodesk 360. Click Sign in  Sign in to Autodesk 360. Enter your Autodesk ID and password.

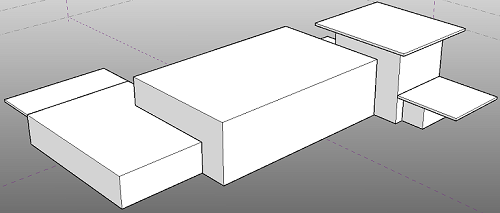

Create a mass model.	You can load a mass family into a project for simulation or create an in-place mass directly in a project. See Massing Studies.
Add mass floors.	In the project environment, select the mass model, and add mass floors.
Create the energy model.	Click Analyze tab  Energy Analysis panel Enable Energy Model.
Define basic energy settings.	Click Analyze tab  Energy Analysis panel  Energy Settings. In the Energy Settings dialog: For Building Type, review the occupancy type assigned to the building, and modify as needed. For Location, review the geographic location specified for the project, and modify as needed. For more information about these settings Energy Settings.
Run the Energy Simulation.	Display a 3D view of the model, and click Analyze tab Energy Analysis panel Run Energy Simulation.

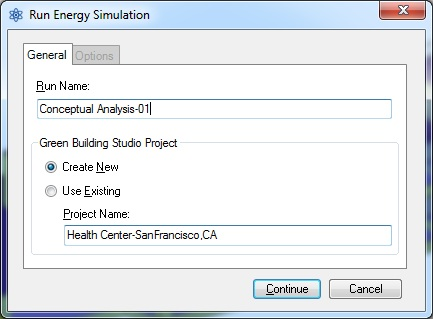

Name the analysis and specify the Green Building Studio project.	In the Run Energy Simulation dialog, specify a name for the analysis, and select whether to create a new or use an existing Green Building Studio project. Then click Continue. (Choose a name that is descriptive of the model and energy settings, and ensure that the Project you’re assigning the run to have the proper location and building type settings.)
Simulated elements display.	The current view displays mass zones and mass shades, and it temporarily dims elements that are not included in the analysis.
Access the results by clicking the pop-up alert or Results and Compare	When the simulation is complete, an alert displays. Click the analysis name in the alert to view the simulation results. Or click Analyze tab Energy Analysis panel Results & Compare, and select the analysis from the project tree.
Review the simulation results.	In the Results and Compare dialog, view the analysis results. Tip: Use the Settings tab to select the charts to include in the results and to configure the display of energy analysis data on the Results tab.
Make changes, simulate, and compare.	Modify the mass model and energy settings as needed. Then repeat steps 4-8 to run a simulation on the modified model. For a side-by-side comparison of simulation results, select multiple analyses and click Compare on the toolbar.
