#include <qabstractanimation.h>

Class Description

Definition at line 60 of file qabstractanimation.h.

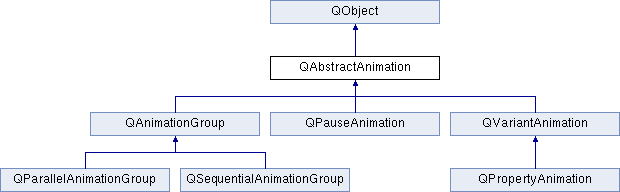

Inheritance diagram for QAbstractAnimation:

Public Types
enum	Direction { Forward, Backward }

enum	State { Stopped, Paused, Running }

enum	DeletionPolicy { KeepWhenStopped = 0, DeleteWhenStopped }

Public Slots
void	start (QAbstractAnimation::DeletionPolicy policy=KeepWhenStopped)

void	pause ()

void	resume ()

void	setPaused (bool)

void	stop ()

void	setCurrentTime (int msecs)

Public Slots inherited from QObject
void	deleteLater ()

Signals
void	finished ()

void	stateChanged (QAbstractAnimation::State newState, QAbstractAnimation::State oldState)

void	currentLoopChanged (int currentLoop)

void	directionChanged (QAbstractAnimation::Direction)

Signals inherited from QObject
void	destroyed (QObject *=0)

Public Member Functions
	QAbstractAnimation (QObject *parent=0)

virtual	~QAbstractAnimation ()

State	state () const

QAnimationGroup *	group () const

Direction	direction () const

void	setDirection (Direction direction)

int	currentTime () const

int	currentLoopTime () const

int	loopCount () const

void	setLoopCount (int loopCount)

int	currentLoop () const

virtual int	duration () const =0

int	totalDuration () const

Public Member Functions inherited from QObject
Q_INVOKABLE	QObject (QObject *parent=0)

virtual	~QObject ()

virtual bool	eventFilter (QObject , QEvent )

QString	objectName () const

void	setObjectName (const QString &name)

bool	isWidgetType () const

bool	signalsBlocked () const

bool	blockSignals (bool b)

QThread *	thread () const

void	moveToThread (QThread *thread)

int	startTimer (int interval)

void	killTimer (int id)

template<typename T >
T	findChild (const QString &aName=QString()) const

template<typename T >
QList< T >	findChildren (const QString &aName=QString()) const

template<typename T >
QList< T >	findChildren (const QRegExp &re) const

const QObjectList &	children () const

void	setParent (QObject *)

void	installEventFilter (QObject *)

void	removeEventFilter (QObject *)

bool	connect (const QObject sender, const char signal, const char *member, Qt::ConnectionType type=Qt::AutoConnection) const

bool	disconnect (const char signal=0, const QObject receiver=0, const char *member=0)

bool	disconnect (const QObject receiver, const char member=0)

void	dumpObjectTree ()

void	dumpObjectInfo ()

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const

QList< QByteArray >	dynamicPropertyNames () const

void	setUserData (uint id, QObjectUserData *data)

QObjectUserData *	userData (uint id) const

QObject *	parent () const

bool	inherits (const char *classname) const

Protected Member Functions
	QAbstractAnimation (QAbstractAnimationPrivate &dd, QObject *parent=0)

bool	event (QEvent *event)

virtual void	updateCurrentTime (int currentTime)=0

virtual void	updateState (QAbstractAnimation::State newState, QAbstractAnimation::State oldState)

virtual void	updateDirection (QAbstractAnimation::Direction direction)

Protected Member Functions inherited from QObject
QObject *	sender () const

int	senderSignalIndex () const

int	receivers (const char *signal) const

virtual void	timerEvent (QTimerEvent *)

virtual void	childEvent (QChildEvent *)

virtual void	customEvent (QEvent *)

virtual void	connectNotify (const char *signal)

virtual void	disconnectNotify (const char *signal)

	QObject (QObjectPrivate &dd, QObject *parent=0)

Properties
State	state

int	loopCount

int	currentTime

int	currentLoop

Direction	direction

int	duration

Properties inherited from QObject
QString	objectName

Additional Inherited Members
Static Public Member Functions inherited from QObject
static bool	connect (const QObject sender, const char signal, const QObject receiver, const char member, Qt::ConnectionType=Qt::AutoConnection)

static bool	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type=Qt::AutoConnection)

static bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char member)

static bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &member)

static uint	registerUserData ()

Protected Attributes inherited from QObject
QScopedPointer< QObjectData >	d_ptr

Static Protected Attributes inherited from QObject
static const QMetaObject	staticQtMetaObject

Member Enumeration Documentation

enum Direction

Enumerator
Forward
Backward

Definition at line 73 of file qabstractanimation.h.

                    {
         Forward,
         Backward
     };

enum State

Enumerator
Stopped
Paused
Running

Definition at line 78 of file qabstractanimation.h.

                {
         Stopped,
         Paused,
         Running
     };

enum DeletionPolicy

Enumerator
KeepWhenStopped
DeleteWhenStopped

Definition at line 84 of file qabstractanimation.h.

                         {
         KeepWhenStopped = 0,
         DeleteWhenStopped
     };

Constructor & Destructor Documentation

QAbstractAnimation ( QObject * parent = 0 )

virtual ~QAbstractAnimation ( )

virtual

QAbstractAnimation	(	QAbstractAnimationPrivate &	dd,
		QObject *	parent = `0`
	)

protected

Member Function Documentation

State state ( ) const

QAnimationGroup* group ( ) const

Direction direction ( ) const

void setDirection ( Direction direction )

int currentTime ( ) const

int currentLoopTime ( ) const

int loopCount ( ) const

void setLoopCount ( int loopCount )

int currentLoop ( ) const

virtual int duration ( ) const

pure virtual

Implemented in QVariantAnimation, QSequentialAnimationGroup, QPauseAnimation, and QParallelAnimationGroup.

int totalDuration ( ) const

void finished ( )

signal

void stateChanged	(	QAbstractAnimation::State	newState,
		QAbstractAnimation::State	oldState
	)

signal

void currentLoopChanged ( int currentLoop )

signal

void directionChanged ( QAbstractAnimation::Direction )

signal

void start ( QAbstractAnimation::DeletionPolicy policy = KeepWhenStopped )

slot

void pause ( )

slot

void resume ( )

slot

void setPaused ( bool )

slot

void stop ( )

slot

void setCurrentTime ( int msecs )

slot

bool event ( QEvent * event )

protectedvirtual

Reimplemented from QObject.

Reimplemented in QVariantAnimation, QSequentialAnimationGroup, QAnimationGroup, QPropertyAnimation, QPauseAnimation, and QParallelAnimationGroup.

virtual void updateCurrentTime ( int currentTime )

protectedpure virtual

Implemented in QVariantAnimation, QSequentialAnimationGroup, QPauseAnimation, and QParallelAnimationGroup.

virtual void updateState	(	QAbstractAnimation::State	newState,
		QAbstractAnimation::State	oldState
	)

protectedvirtual

Reimplemented in QVariantAnimation, QSequentialAnimationGroup, QPropertyAnimation, and QParallelAnimationGroup.

virtual void updateDirection ( QAbstractAnimation::Direction direction )

protectedvirtual

Reimplemented in QSequentialAnimationGroup, and QParallelAnimationGroup.

Property Documentation

State state

read

Definition at line 65 of file qabstractanimation.h.

int loopCount

readwrite

Definition at line 66 of file qabstractanimation.h.

int currentTime

readwrite

Definition at line 67 of file qabstractanimation.h.

int currentLoop

read

Definition at line 68 of file qabstractanimation.h.

Direction direction

readwrite

Definition at line 69 of file qabstractanimation.h.

int duration

read

Definition at line 70 of file qabstractanimation.h.

The documentation for this class was generated from the following file:

QtCore/qabstractanimation.h
