In this task, you will export duct and pipe systems from Revit to React Fluids and group them into flow networks.

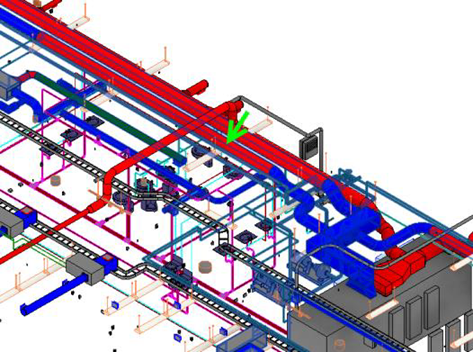

- Hover over the supply duct shown in the image, and click on the element. Remain on the element, and press
Tab three times, and click on the first element again.
- Click
Analyze
Flow Analysis
React Fluids.
-

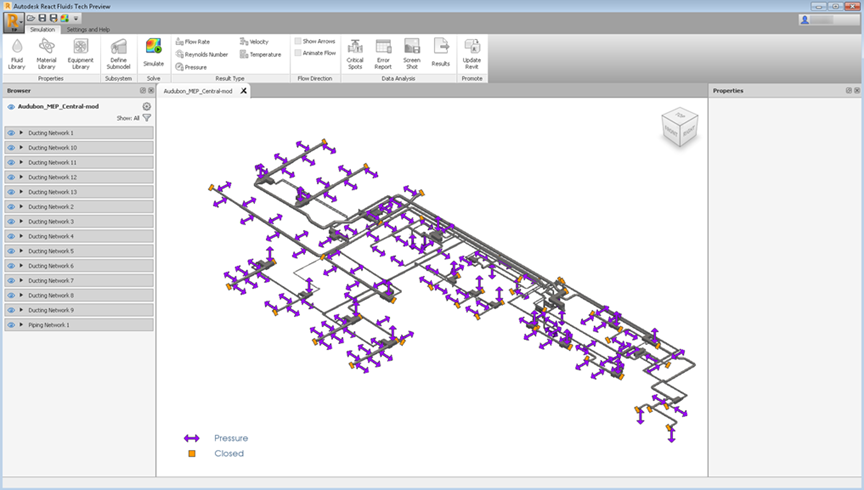

Click Yes when prompted to group connected systems into flow networks.
