Structural Axes

Place a grid axis in the XY plane of the drawing area to help you draw structural elements.

You can place each axis individually, or add a set of axes by specifying a distance between them.

You can snap to axis intersections when drawing structural elements.

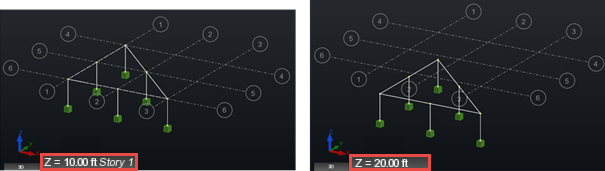

When you change the level, axes move up or down to match it.
