Select predefined standard orthographic and isometric views by name or description.
A quick way to set a view is to choose one of the predefined 3D views. You can select predefined standard orthographic and isometric views by name or description. These views represent commonly used options: Top, Bottom, Front, Left, Right, and Back. In addition, you can set views from isometric options: SW (southwest) Isometric, SE (southeast) Isometric, NE (northeast) Isometric, and NW (northwest) Isometric.

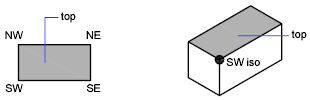

To understand how the isometric views work, imagine you are looking down at the top of a box. If you move toward the lower-left corner of the box, you are viewing the box from the SW Isometric View. If you move toward the upper-right corner of the box, you are viewing it from NE Isometric View.
To Choose a Preset View
- Click
. Find
The View tab is not displayed by default, so an alternative method is to enter VIEW at the Command prompt. You can also employ the ViewCube in the top-right corner of the drawing area.
- Select a preset view (Top, Bottom, Left, and so on).
