To Create a Section Object by Selecting a Face

Create a section object that is aligned to a 3D face

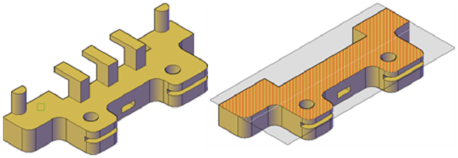

Section object aligned to face

1. Click Home tabSection panelSection Plane. Find
2. Click to select a face on your model.

   A section object is created on the plane of the selected face.

3. Click the section line to display its grips.
4. Select a grip to move the section plane through the 3D object.

   A section object is created in the Section Plane state. Live sectioning is turned on.
