About How AutoCAD Saves Layer Settings (VBA/ActiveX)

AutoCAD saves layer setting information in an extension dictionary in a drawing's Layers collection.

When you first save layer settings in a drawing, AutoCAD does the following:

• Creates an extension dictionary in the Layers collection.
• Creates a Dictionary object named ACAD_LAYERSTATE in the extension dictionary.
• Stores the properties of each layer in the drawing in an XRecord object in the ACAD_LAYERSTATE dictionary. AutoCAD stores all layer settings in the XRecord, but identifies the specific settings you chose to save. When you restore the layer settings, AutoCAD restores only the settings you chose to save.

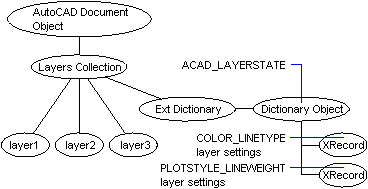

Each time you save another layer setting in the drawing, AutoCAD creates another XRecord object describing the saved settings and stores the XRecord in the ACAD_LAYERSTATE dictionary. The following diagram illustrates the process.

You do not need (and should not try) to interpret XRecords when working with layer settings using ActiveX. Use the functions of the LayerStateManager object to access saved layer settings.

Sub Ch4_ListStates()
  On Error Resume Next

  Dim oLSMDict As AcadDictionary
  Dim XRec As Object
  Dim layerstateNames As String
  layerstateNames = ""

  ' Get the ACAD_LAYERSTATES dictionary, which is in the
  ' extension dictionary in the Layers object.
  Set oLSMDict = ThisDrawing.Layers.GetExtensionDictionary.Item("ACAD_LAYERSTATES")

  ' List the name of each saved layer setting. Settings are
  ' stored as XRecords in the dictionary.
  For Each XRec In oLSMDict
   layerstateNames = layerstateNames + XRec.Name + vbCrLf
  Next XRec
  MsgBox "The saved layer settings in this drawing are: " + vbCrLf + layerstateNames
End Sub
