What's New or Changed in AutoCAD LT 2027

Learn about new or changed features in this release of AutoCAD LT. For technical details, see the release notes.

2027 Highlights

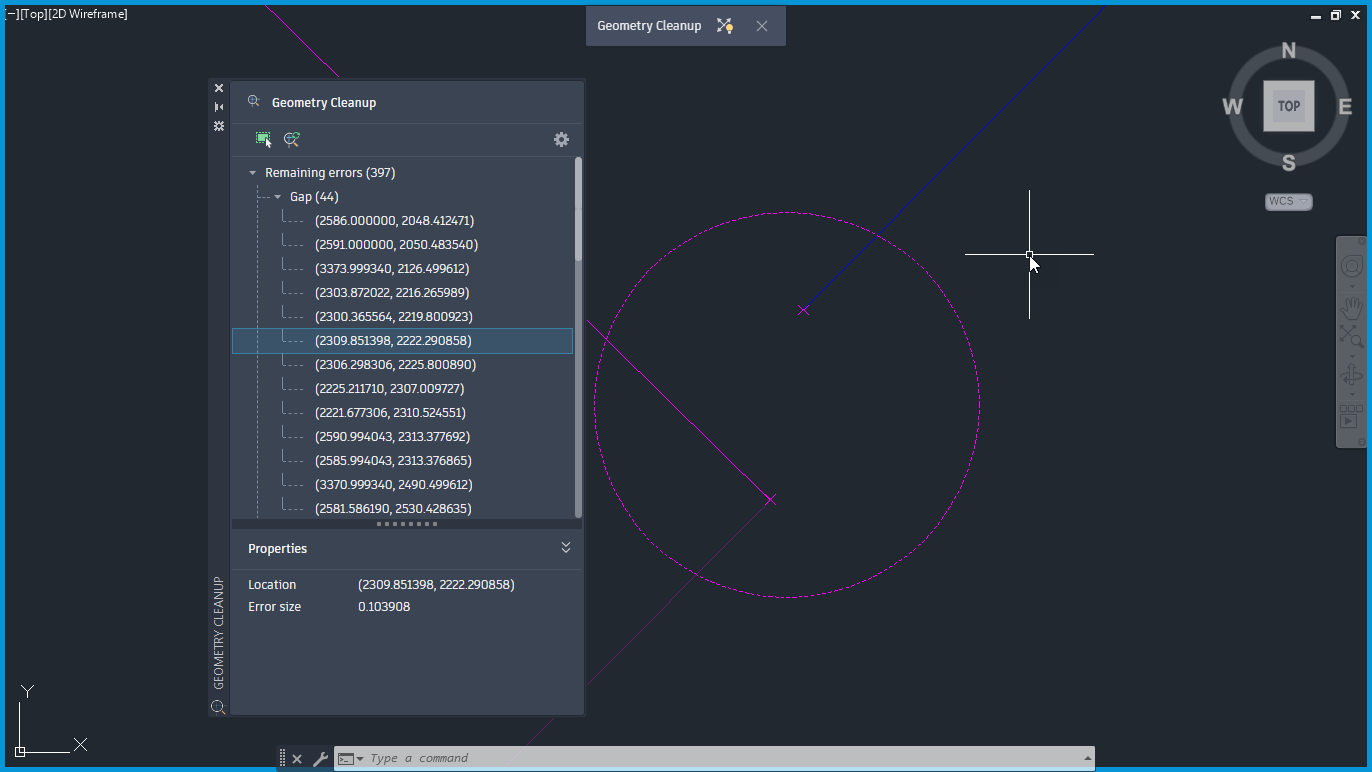

Geometry Cleanup

Geometry Cleanup scans drawings to fix common geometry errors.

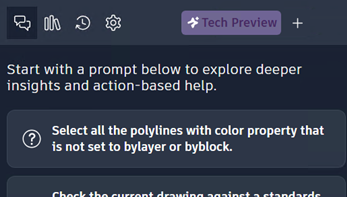

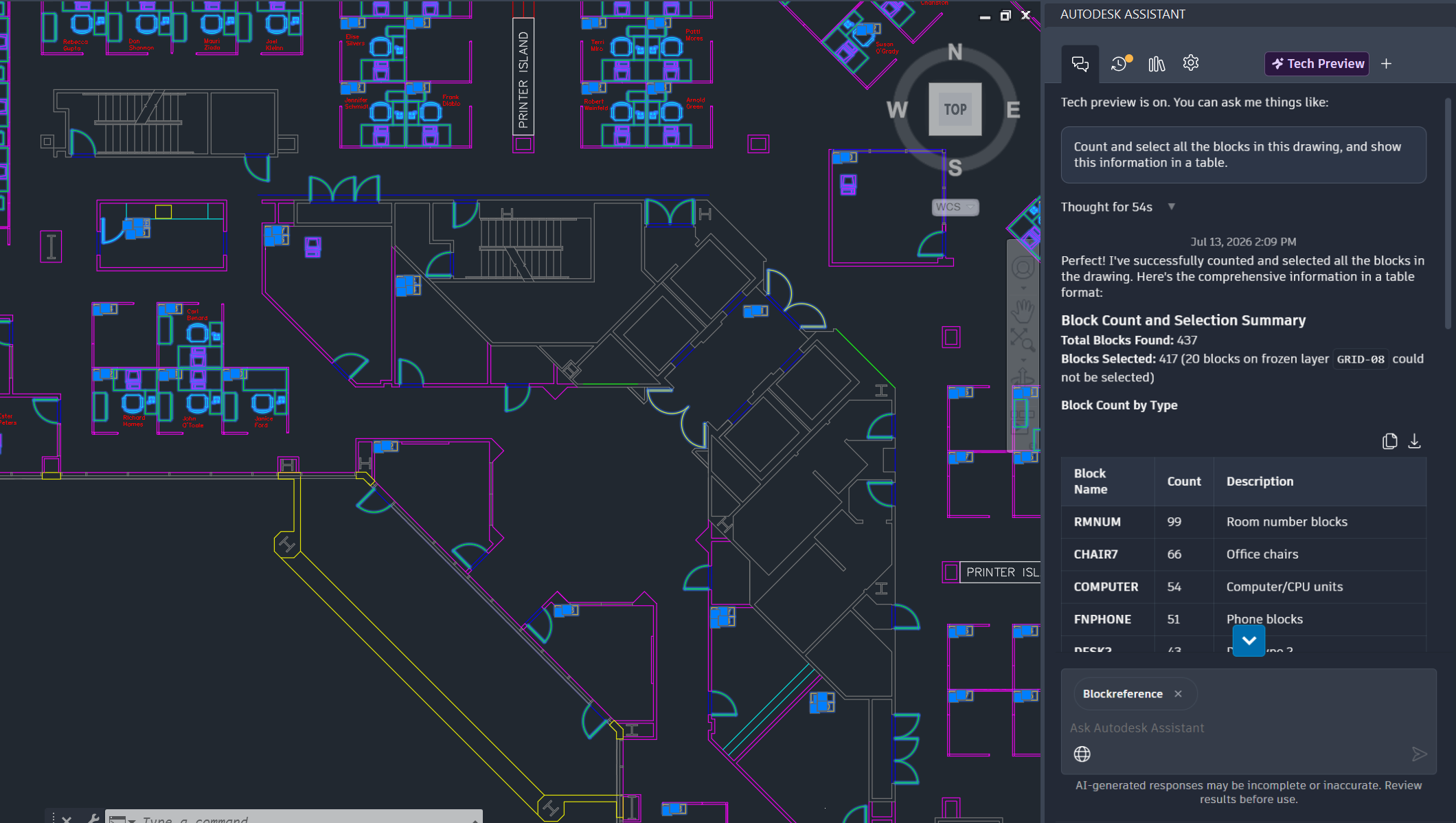

Autodesk Assistant

Autodesk Assistant now offers AI-enhanced chat and prompt-driven workflows.

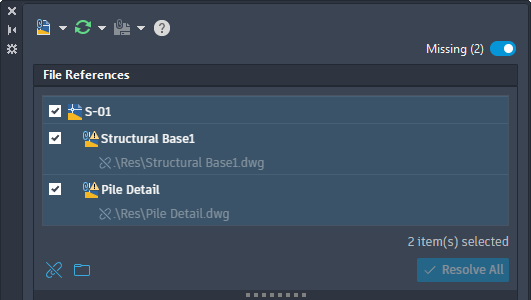

Connected References

Connected References improves the workflow for updating the paths of missing external drawing references (xrefs).

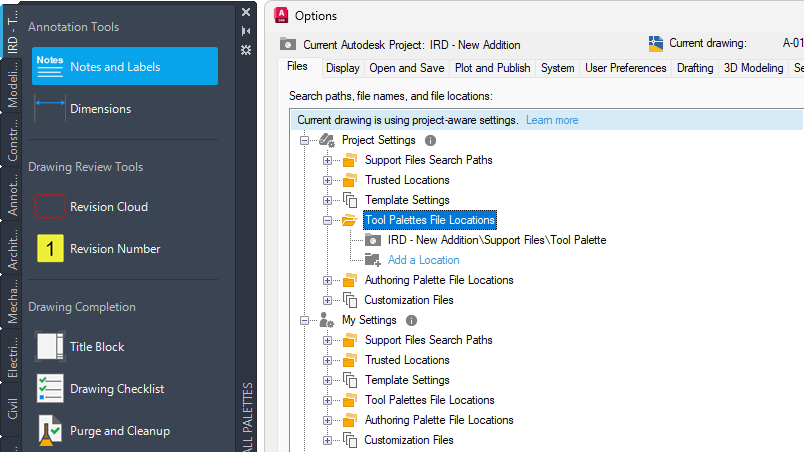

Connected Support Files: Tool Palettes

Tool palette and authoring palette files can be shared with others working on the same Autodesk project stored on Forma Data Management.

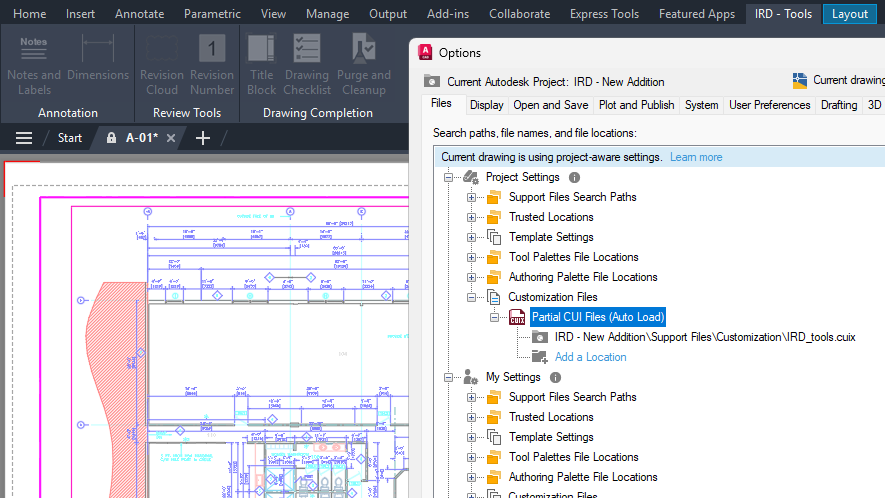

Connected Support Files: Partial Customization (CUIx) Files

Custom user interface (UI) elements can be shared with others and loaded into the AutoCAD desktop app when working on a drawing opened from an Autodesk project on Forma Data Management.

Additional enhancements

Layout Tab Switching Performance: Improvements were made to reduce the amount of time it takes to switch layout tabs.

Removal of Support for AutoCAD Web & Mobile: The Open From Web & Mobile (OPENFROMWEBMOBILE) and Save To Web & Mobile (SAVETOWEBMOBILE) features have been removed from this release. If you previously saved your drawing files to AutoCAD Web & Mobile, it's recommended to utilize Forma Data Management to store and access drawing files anywhere.

Removal of Shared Views: The Shared Views feature has been removed from this release. If you previously used Shared Views, it's recommended to utilize Forma Data Management to store and share drawing files with others.

Push to Forma Data Management replaces Push to Autodesk Docs: The Push to Autodesk Docs feature has been updated to Push to Forma Data Management. New commands and system variables were introduced to display and close the Push to Forma Data Management palette.

Removal of Support for the MrSID Image Format: Image files saved in the MrSid format can no longer be attached to a drawing file. MrSID images will need to be saved to a supported file format and reattached.

Removal of Support to Create a PostScript File: The PSOUT command has been removed in this release. If you need to create a PostScript file from a drawing, configure a PC3 file according to the output needed
