Center Pivot
Automatically positions the pivot point at the center of the picked object.

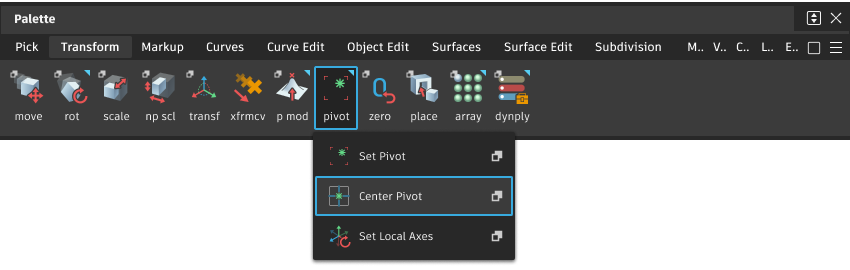

Access this tool from the Transform tool palette:
Center Pivot Options
Rotation
The Rotation Pivot is displayed as a circle with a dot at the center.
Scaling
The Rotation Pivot is displayed as a circle with a dot at the center, while the Scaling pivot appears as an asterisk.
CV Centroid
Positions the pivot point at the centroid of all the CVs instead of center of the object itself.
CV Bounding Box
Positions the pivot point at the center of bounding box based on the outermost CVs.
Geometry Bounding Box
Positions the pivot point at the center of bounding box of the picked object.
Center Pivot workflow
Set the pivot to the centroid of an object:
- Pick the object.
- Select the Center Pivot tool.
Show or hide pivot points
- Choose Toggles. The pivot points in all windows appear or disappear.
