NURBS to Bézier
Splits multi-span NURBS surfaces into single span Bezier patches. This tool operates on both regular and trimmed surfaces.

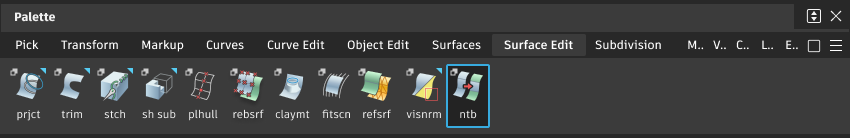

Access this tool from the Surface Edit tool palette:
NURBS to Bézier Options
Surfaces
Selected – The conversion affects only selected surfaces. It is the default.
Global – The conversion affects all surfaces.
Keep Originals
Keep the original NURBS surfaces after creating the Bézier patches.
NURBS to Bézier workflow
Select tool.
Select one or more multi-span surfaces. These can be regular or trimmed surfaces.
Click the Split button in the lower right corner of the view window.
The selected surfaces are split into several single-span (Bézier) surfaces. The resulting surfaces are not grouped.
The total number of Bézier surfaces created is posted in the promptline. The Bézier surfaces have the same U and V degrees as the original surface.

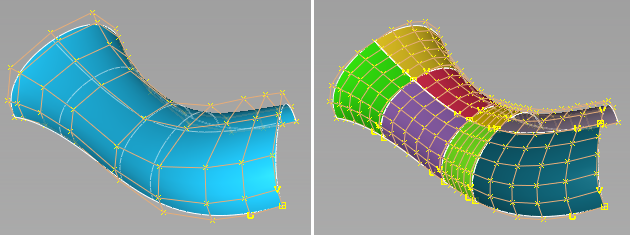

Degree 5 NURBS surface of 4 x 2 spans split into eight Bézier surfaces.
Repeat steps 2 and 3 to continue splitting surfaces if desired.
