Corridor Transition Panorama Vista

Buttons and drop-down lists

Corridor Selection

Specifies the corridor to which you want to add or edit transitions. You can also select a different corridor by using the baseline selection button to select a baseline in the drawing that belongs to another corridor.

Baseline Selection

Specifies the baseline in the corridor to which you want to add or edit transitions. Use the drop-down list to select a baseline in the currently selected corridor. Use the selection button to select a baseline in the currently selected corridor or in another corridor.

Create a New Transition Set

Creates a new transition set in the Panorama vista. Click the icon and then use the command line prompts to define the transition set.

Insert a Transition Below

Inserts a new transition below the current row in the Panorama vista.

Insert a Transition Above

Inserts a new transition above the current row in the Panorama vista.

Delete Line

Deletes the currently selected row in the Panorama vista.

Note: If you select the last transition in a transition set and click Delete Line, it will clear the transition information, but will not delete the selected row.

Import Transitions

Imports transitions from a CSV file.

Export Transitions

Exports transitions to a CSV file.

Corridor Rebuild

Rebuilds the corridor. This button is enabled if the corridor is out of date.

Move Up/Move Down

Moves the selected transition or transition group up or down in the priority order. These options are useful when more than one transition or transition set is applied to the same station range, and you want one to have a higher priority.

Note: Transitions are applied in the order that they are shown in the Corridor Transitions panorama vista, from top to bottom. A transition that is lowest in the list has the highest priority since it is applied after the preceding transitions.

• You can move a row in a transition set up or down within a transition set. Adjacent rows can be selected and moved up or down together.
• You can move a transition set up or down in the list of transition sets.

Data Table

Use the data table to enter and edit data for the transitions.

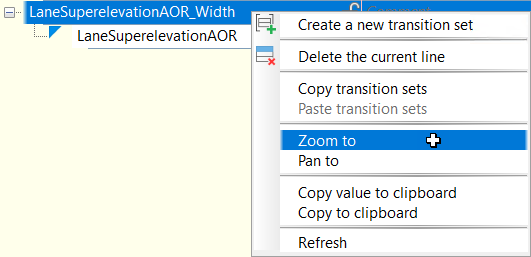

You can right-click a transition or a transition set to access commands on the context menu.

If a required value in the Corridor Transitions panorama vista is left blank, the cell is colored pink to alert you:

Note: If a required value is left blank, that row in the transition set is not applied to the corridor.

To add a comment for a transition set, click in the Comment area in the transition set row and enter the comment.

To lock a transition set, hover your cursor over the Parameter column in the transition set row to display the lock icon and click it to lock the transition set.

Subassembly

Specifies the subassembly to transition. Click to select a different subassembly.

Subassemblies that are selected by .NET class name are marked with a blue triangle in the Corridor Transitions panorama vista.

Parameter

Specifies the selected parameter in the subassembly to transition. Click the drop-down arrow to select a different parameter to transition.

Start Station

Specifies the start station of the transition. Click to select a station in the drawing.

Start Value

Specifies the start value of the parameter to transition.

End Station

Specifies the end station of the transition. Click to select a station in the drawing.

End Value

Specifies the end value of the parameter to transition.
