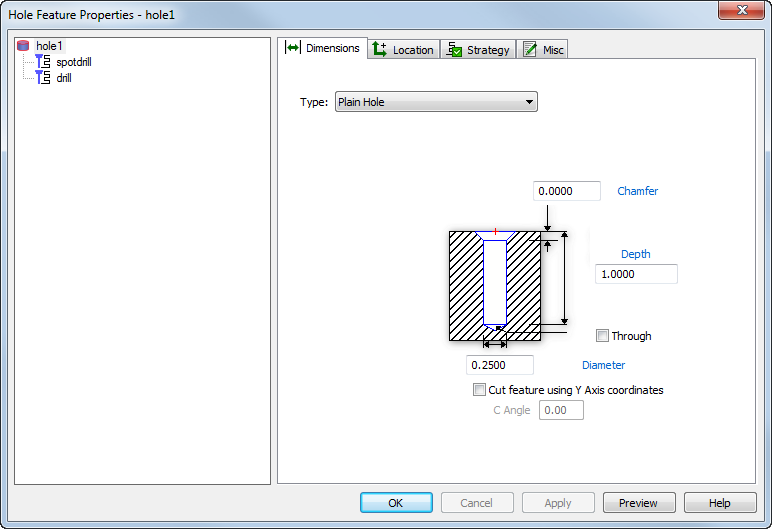

Type — Select the hole type from:
- A Plain Hole is a simple Hole with an optional chamfer.
- A Counter Bore Hole.
- A Counter Sink Hole.
- A Counter Drill Hole.
- A Tapped Hole is a Hole that is under-sized drilled and then tapped.
- A CD Tapped Hole is a counter drilled hole with the bottom part of the Hole tapped.
- A Thread Milled Hole.
- A Back Bore Hole.
Chamfer — Enter the height of the chamfer, or click the blue label to pick it from the graphics window.
Depth — Enter the depth of the hole, not including the drill tip, or click the blue label to pick it from the graphics window.
Through — Select this option to increase the hole length by 10% of the hole diameter to account for the drill tip and prevent burring.
Diameter — Enter the diameter of the hole, or click the blue label to pick it from the graphics window.
Cut feature using Y Axis coordinates — In Turn/Mill, 4 axis, or 5 axis parts with Z-indexing, select this option to cut in X and Y, or deselect it to rotate the part about the index axis.
C Angle — If Cut feature using Y Axis coordinates is selected, enter the spindle C angle at which to cut the feature.
