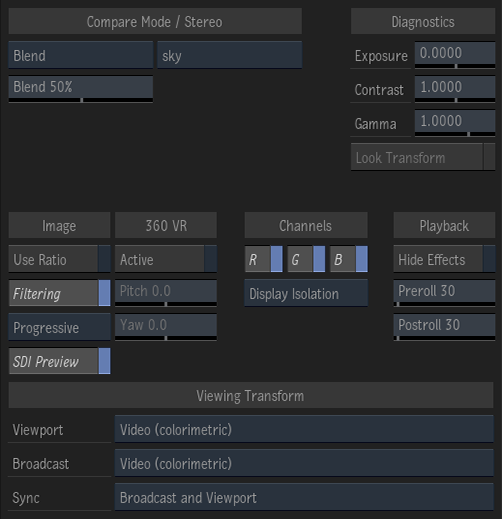

Compare Mode /Stereo

Compare Modes box

Select the comparison mode to compare the current frame to a grabbed reference frame. Use the Reference box to select a reference frame.

Reference box

Grab a frame to create a new reference frame or select a reference to use in the comparison.


Use Ratio button

Enable to simulate rectangular pixel display that corresponds to the delivery format.

Filtering button

Enable to set the filtering.

Scan Mode button

Adjusts the display to the desired scan mode format.

Playback

Hide Effects button

Enable to hide effects during playback. Disable to display effects (may affect performance).

Preroll field

Displays the number of preroll frames when playing a clip. Editable.

Postroll field

Displays the number of postroll frames when playing a clip. Editable.

360 VR button

Enable to activate the SDI Preview.

Pitch Slider

Use to modify the longitude of the 360 VR Viewer.

YAW Slider

Use to modify the latitude of the 360 VR Viewer.

Exposure, Contrast, and Gamma

Exposure field

Displays the exposure that is used to transform image display in the image window. Editable.

Contrast field

Displays the contrast that is used to transform image display in the image window. Editable.

Gamma field

Displays the gamma that is used to transform image display in the image window. Editable.

Enable Look Transform button

Toggles the dynamic look of a colour transform on and off. Available only when the selected viewing transform has dynamic look operators defined. Editable.

Channels

Red Channel button

Enable to display the red channel of the clip. You may press Shift+R to enable and Shift+R again, or Shift+Z, to disable.

Green Channel button

Enable to display the green channel of the clip. You may press Shift+G to enable and Shift+G again, or Shift+Z, to disable.

Blue Channel button

Enable to display the blue channel of the clip. You may press Shift+B to enable and Shift+B again, or Shift+Z, to disable.

Isolation button

Use Source Isolation to isolate the selected channel as a grey scale image, then apply the viewing transform. Use Display Isolation to isolate the selected channel(s) after the viewing transform (this is equivalent to turning off channels in the display itself). You may press Shift+X to toggle between the two modes.

Viewing Transform

Graphics Monitor Viewing Rule box

Select the Viewing Rule to use for the graphics monitor viewport.

Broadcast Monitor Viewing Rule box

Select the Viewing Rule to use for the broadcast monitor.

Viewport and Broadcast Synchronization box

Broadcast and Viewport synchronizes the Viewing Transform of both the Viewport and the Broadcast, across Multi- and Player views. Do Not Sync allows you to assign a Viewing Transform to the broadcast monitor that differs from the one assigned to the Player views.

• The Colour Management settings (Exposure, Contrast, Gamma) of a viewport are bypassed in the Broadcast Monitor when Viewport Monitoring is enabled in the Broadcast Monitor preferences, and the Bypass option is enabled in the viewport.
• The selected Viewing Transform of a Player view is now shared between its different tabs (Source, Sequence, Container, Batch) even if "Do not Sync" is the selected option.
