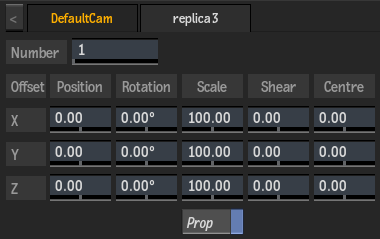

Replica Menu Settings

Number field

Displays the number of instances of the attached object to create. Editable. Each instance creates its own entry in the Action Priority Editor, so you can change the drawing order of instances.

X Position field

Displays the position offset along the X axis. Editable.

Y Position field

Displays the position offset along the Y axis. Editable.

Z Position field

Displays the position offset along the Z axis. Editable.

X Rotation field

Displays the rotation offset along the X axis. Editable.

Y Rotation field

Displays the rotation offset along the Y axis. Editable.

Z Rotation field

Displays the rotation offset along the Z axis. Editable.

X Scale field

Displays the scale along the X axis. Editable.

Y Scale field

Displays the scale along the Y axis. Editable.

Z Scale field

Displays the scale along the Z axis. Editable.

Proportional button

Enable to change the fields proportionally.

X Shear field

Displays the shear along the X axis. Editable.

Y Shear field

Displays the shear along the Y axis. Editable.

Z Shear field

Displays the shear along the Z axis. Editable.

X Centre field

Displays the centre offset along the X axis. Editable.

Y Centre field

Displays the centre offset along the Y axis. Editable.

Z Centre field

Displays the centre offset along the Z axis. Editable.
