Context Sensitive Ribbons

Inflow

The Inflow tab is activated when an Inflow is selected on the Plan.

Edit - Edit selected object details.

Duplicate - Duplicate selected object.

Delete - Delete selected object.

Rename - Rename selected object.

Add to Templates - Add selected object to Object Templates.

Change Template - Edit Templates list.

Results - View the results of the individual items (if available).

ARR Box Plot Summary - Displays the ARR Box Plot Summary for the selected item (if available).

Go to - Go to the selected object in the Plan.

Flow Path

The Flow Path tab is activated when a Flow Path is selected on the Plan.

Edit - Edit the selected Flow Path.

Duplicate - Duplicate the selected Flow Path.

Delete - Delete the selected Flow Path.

Rename - Rename the selected Flow Path.

Apply Dendritic Numbering - Applies the Numbering Scheme on the flow path.

Show Profile - Show the profile of the selected Flow Path.

Stormwater Control

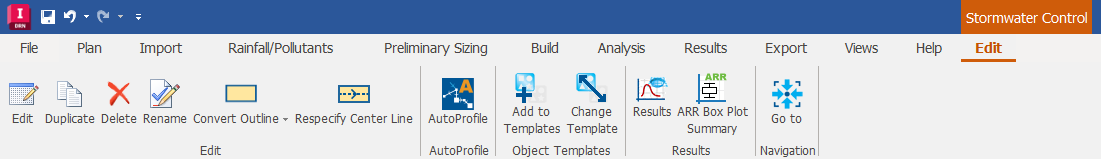

The Stormwater Control (SWC) tab is activated when a SWC is selected on the Plan.

Edit - Edit selected object details.

Duplicate - Duplicate selected object.

Delete - Delete selected object.

Rename - Rename selected object.

Convert Outline - Convert the outline to another shape for the selected object.

Respecify Center line - Respecify the center line for the selected object.

AutoProfile - Create AutoProfile flow paths to the selected object.

Add to Templates - Add selected object to Object Templates.

Change Template - Edit Templates list.

Results - View the results of the individual items (if available).

ARR Box Plot Summary - Displays the ARR Box Plot Summary for the selected item (if available).

Go to - Go to the selected object in the Plan.

Connections

The Connections tab is activated when a connection is selected on the Plan.

Edit - Edit selected object details.

Delete - Delete selected object.

Rename - Rename selected object.

Respecify Destination - Respecify the destination for the selected object.

Add/Edit Vertices - Add or edit vertices in the selected object.

Convert to Curved/Straight - Convert a straight connection to curved connection and vice versa.

Add to Templates - Add selected object to Object Templates.

Change Template - Edit Templates list.

Results - View the results of the individual items (if available).

ARR Box Plot Summary - Displays the ARR Box Plot Summary for the selected item (if available).

Go to - Go to the selected object in the Plan.

Junctions

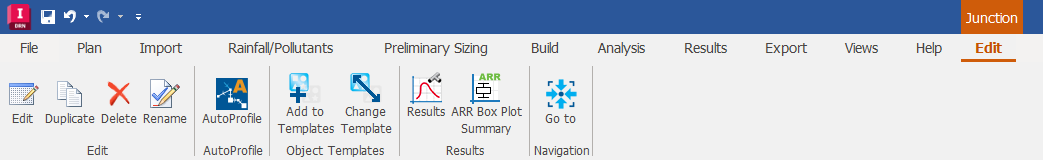

The Junction tab is activated when a junction is selected on the Plan.

Edit - Edit selected object details.

Duplicate - Duplicate selected object.

Delete - Delete selected object.

Rename - Rename selected object.

AutoProfile - Create AutoProfile flow paths to the selected object.

Add to Templates - Add selected object to Object Templates.

Change Template - Edit Templates list.

Results - View the results of the individual items (if available).

ARR Box Plot Summary - Displays the ARR Box Plot Summary for the selected item (if available).

Go to - Go to the selected object in the Plan.

Land Uses

The Land Use tab is activated when a Land Use is selected on the Plan.

Edit - Edit selected object details.

Duplicate - Duplicate selected object.

Delete - Delete selected object.

Rename - Rename selected object.

Add to Templates - Add selected object to Object Templates.

Change Template - Edit Templates list.

Go to - Go to the selected object in the Plan.

Soil Types

The Soil Type tab is activated when a Soil Type is selected on the Plan.

Edit - Edit selected object details.

Duplicate - Duplicate selected object.

Delete - Delete selected object.

Rename - Rename selected object.

Go to - Go to the selected object in the Plan.
