What's New For the Release

New Features of Inventor 2025

Inventor 2025 has been ported to .Net 8 from .Net Framework, this will impact the VB.net and C# projects(also C++ projects which have managed code mixed) which base on .Net Framework, please refer to Port .Net Framework-based project to .Net to port your projects if you have .Net Framework-based projects.

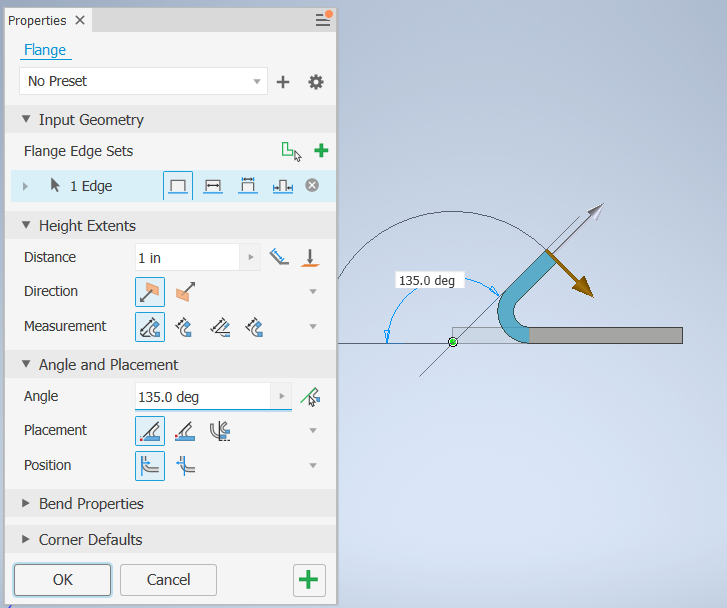

New FlangeFeatures.CreateDefinition method and hide CreateFlangeDefinition method according to the flange feature creation function enhancement. There are 18 members of FlangeDefinition are set to be hidden, and 6 new members are added to it. Also the Edge property for CenteredWidthExtent, EdgeWidthExtent, FromToWidthExtent, OffsetWidthExtent and WidthOffsetWidthExtent is set to be hidden and the new FlangeEdgeSet object can be used to get and set the flange extent info.

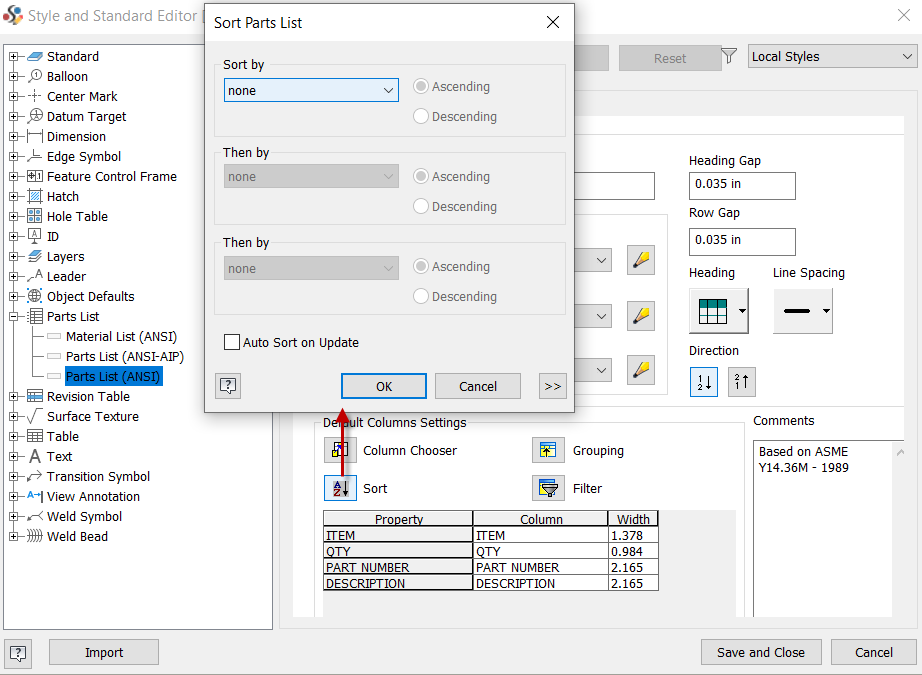

New PartsListSortSettings object can be used to set the partslist sort settings for PartsListStyle.
New RevisionTableStyle.RevisionIndexDefaults property can be used to set the revision index defaults for RevisionTableStyle.

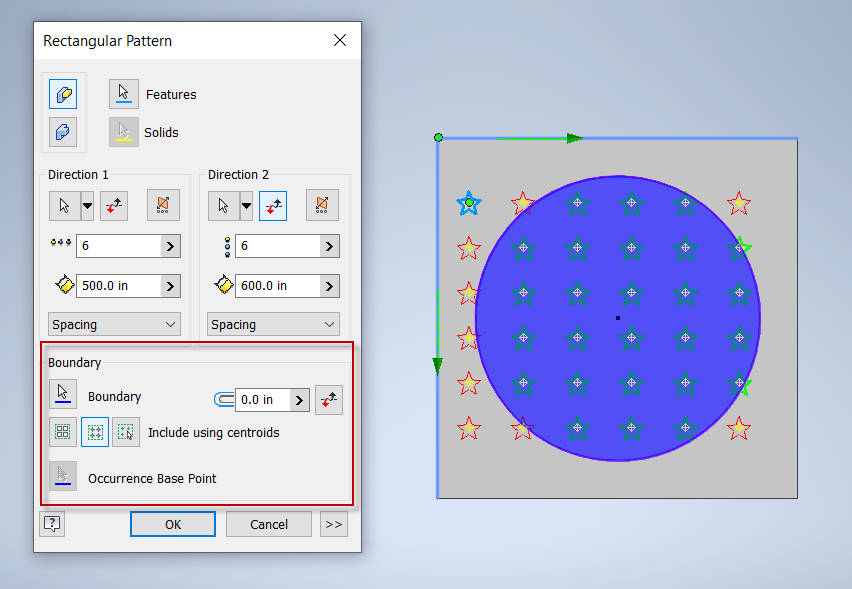

New PatternBoundarySetting object for CircularPatternFeatureDefinition/RectangularPatternFeatureDefinition.BoundarySetting property can be used to get and set the pattern boundary settings. The new CircularPatternFeatureDefinition/RectangularPatternFeatureDefinition.HasBoundarySettingConfigured property can be used to clear the pattern boundary settings.

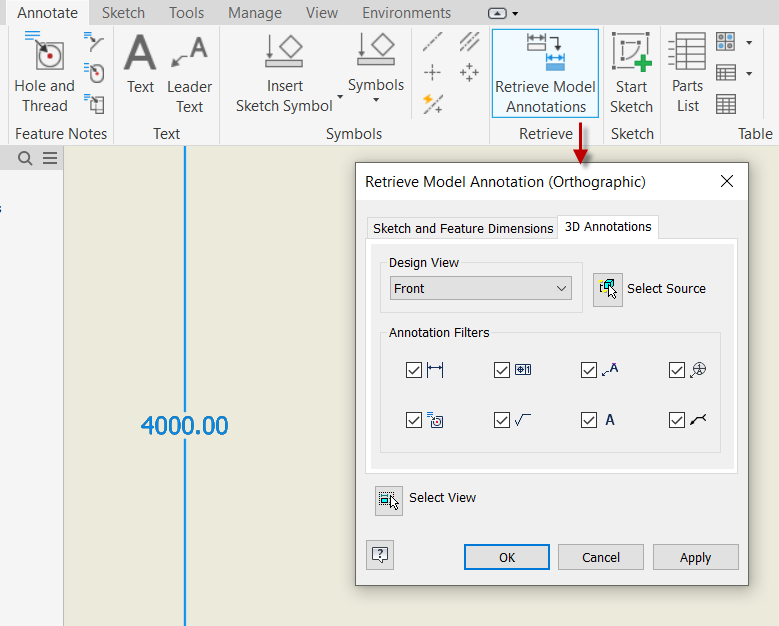

New Sheet.GetRetrievableAnnotations and RetrieveAnnotations methods allow to retrieve 3D annotations and sketch and feature dimensions. New Sheet.GetAvailableDesignViewsToRetrieve3DAnnotations allows to get the design view representations for retrieve 3D annotations. Hide the GeneralDimensions.GetRetrievableDimensions and Retrieve methods. New Retrieved and RetrievedFrom properties for BendNote, ChamferNote, GeneralNote, LeaderNote and PunchNote.
New Arc2d.MidPoint property that allows to get the mid point of an Arc2d.
New ComponentDefinition.RepositionObject method allows to reposition the PartFeature, ComponentOccurrence, Sketch, Sketch3D and WorkFeature objects within the document.

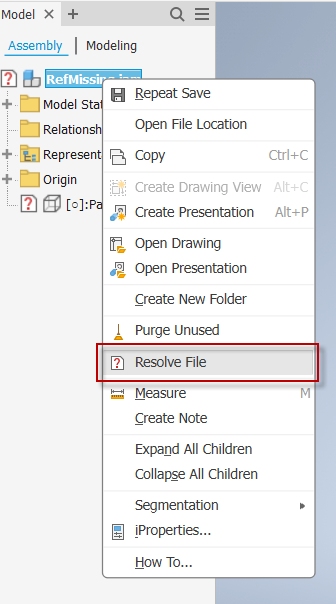

New Document.HasReferencesMissing and ResolveFile members allow to check if a document has references missing or not and trigger the resolve file command.
New ChangeProcessor/Transaction.SuppressChangeNotifications method allows to specify which events can be suppressed during the transaction.
New View.DisplaySeparateColorsType method allows to display components in differnet colors. New ColorScheme.DisplaySeparateColors property allows to set the colors for DisplaySeparateColorsType.

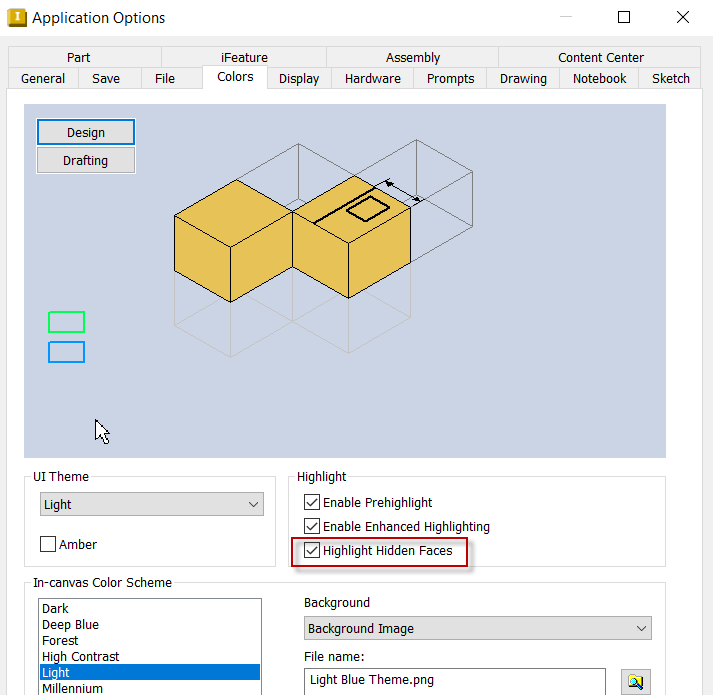

New ColorSchemes.HighlightHiddenFaces property allows to get and set the Highlight Hidden Faces in Application Options.
New CornerRoundFeatures.GetEdgesFromFeature method allows to retrieve the edges from a part feature that can be used to create a corner round feature.

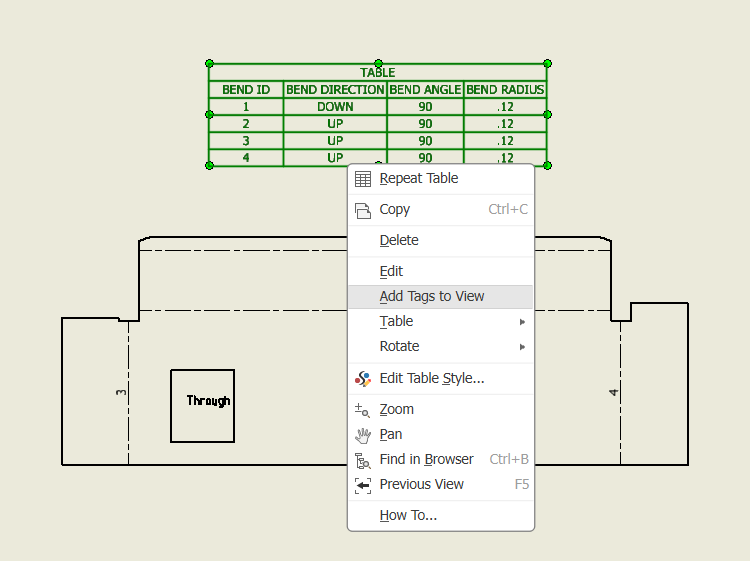

New CustomTable.AddBendTagsToView method allows to add bend tags to view when the CustomTable is a bend table.

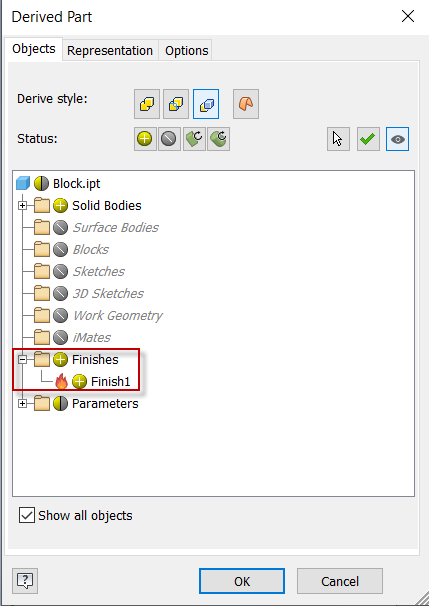

New DerivedPartDefinition.Finishes property allows to get and set the inclusion status for FinishFeature objects in the derived part.

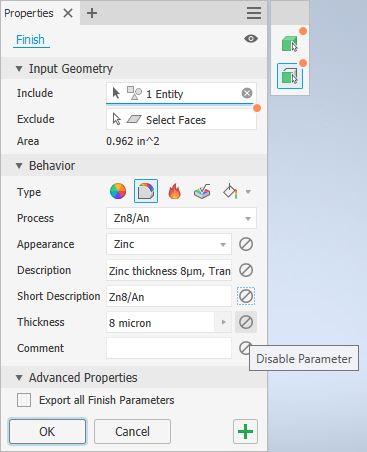

New FinishDefinition.DisableProperties and IsPropertyDisabled methods allow to get and set the disabled status to finish properties.
New DimensionStyle.ArcLengthDimensionSymbolAbove property allows to get and set the arc length dimension arc symbol position.

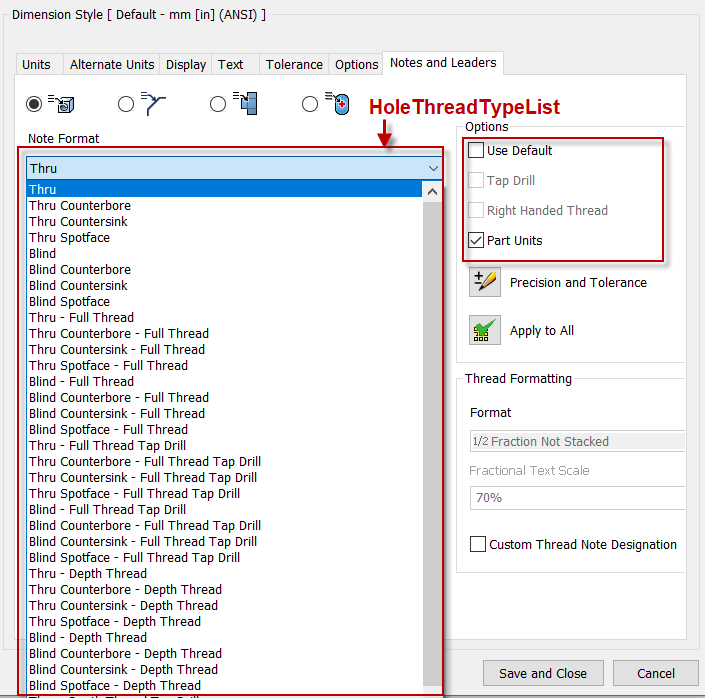

New DimensionStyle.GetHoleThreadNoteOptionValue and SetHoleThreadNoteOptionValue allows to get and set the hole thread note option values. New DimensionStyle.HoleThreadTypeList returns the hole thread type list which can be used for getting and setting the option values.

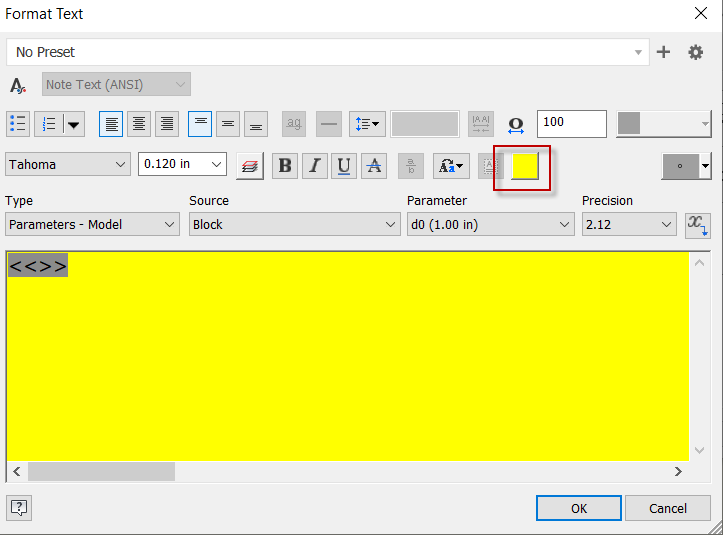

New DimensionText.BackgroundColor and UseBackgroundColor allow to set the background color for dimension text.

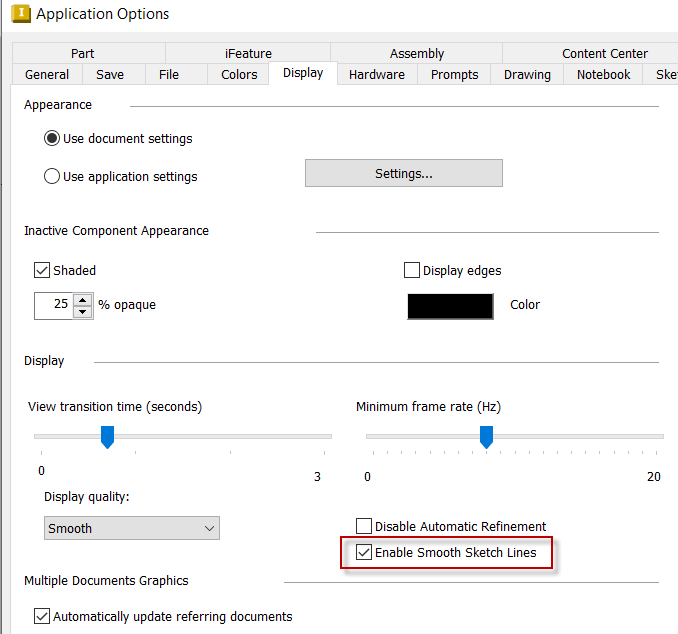

New DisplayOptions.EnableSmoothSketchLines allows to get and set the enable smooth sketch lines option.

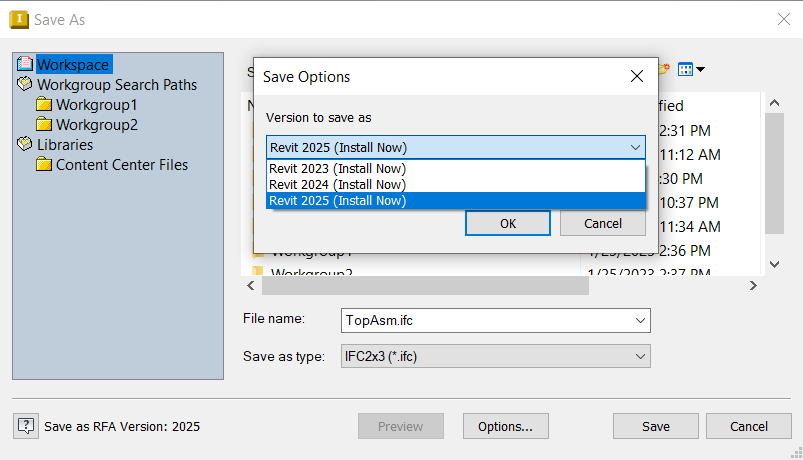

New FileManager.GetRevitEngineInstallationStatus and InstallRevitEngineVersion methods allow to install and check Revit engines in different versions, new RevitExportDefinition.RevitVersion property allows to set the Revit version when export to Revit format.
New FileManager.GetTemplateFileWithOptions method allows to get the template from different locations.

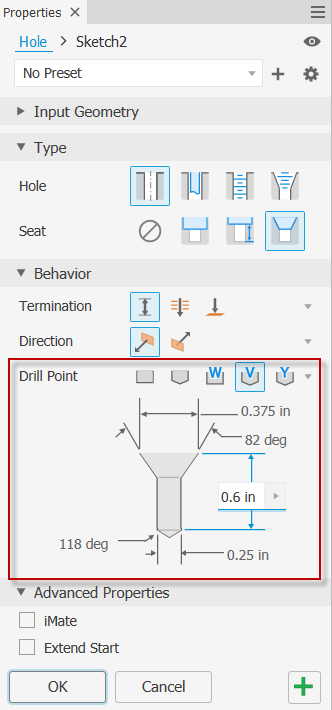

New HoleFeature.DrillPointType property that supports more drill point types. And there are new HoleFeatures.Addxxx2 and HoleFeature.Setxxx2 methods exposed and hide the legacy methods to support new drill point types.

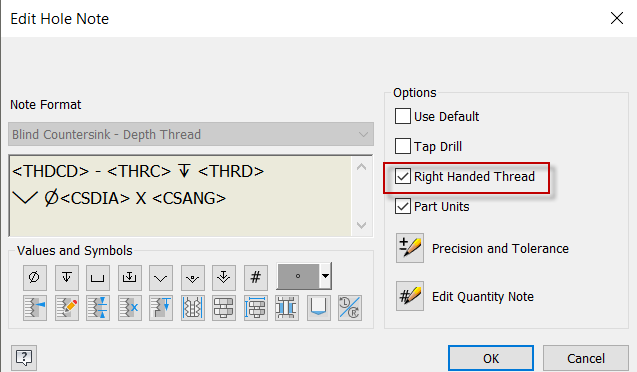

New HoleThreadNote/ModelHoleThreadNoteDefinition.RightHandedThread property allows to get and set the right handed thread option.
New ImportedGenericComponentDefinition.IFCImportMethod, ImportIFCGeometryAsMesh, ImportIFCPropertiesAsCustomProperties and ImportIFCPropertiesAsParameters member to support importing IFC file.

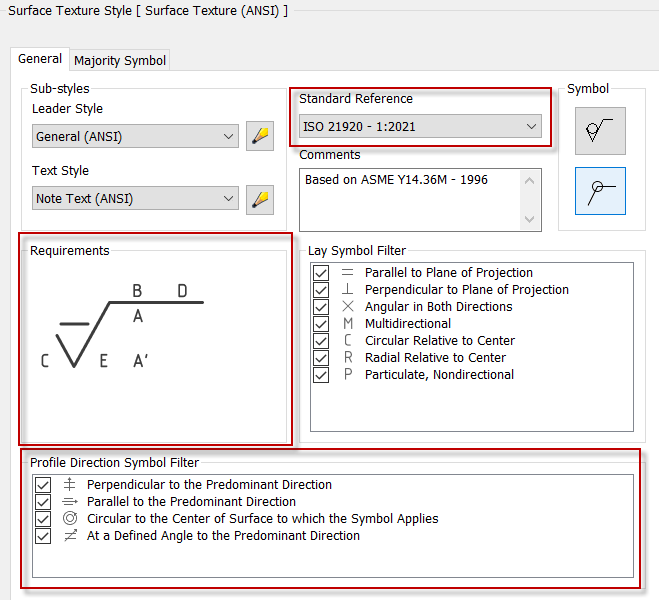

New properties for SurfaceTextureStyle, ModelSurfaceTextureSymbolDefinition and surface texture definitions to support new "ISO 21920 - 1:2021" standard reference.

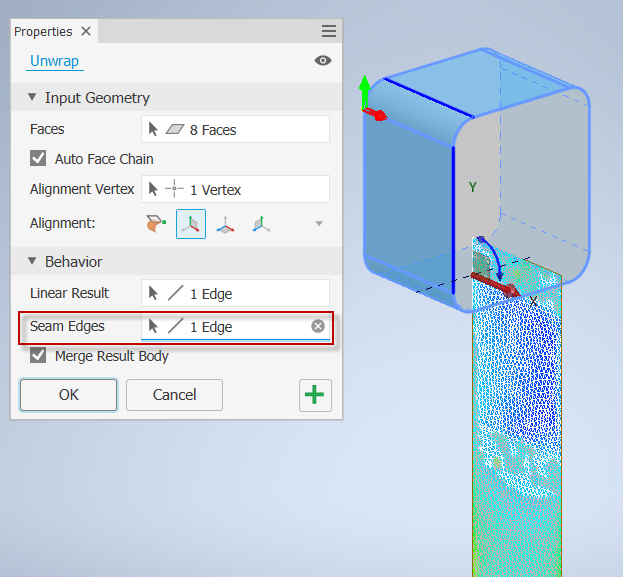

New UnwrapDefinition.SeamEdges and UnwrapFeatures.CreateDefinitionWithOptions to support new seam edges for unwrap feature creation.

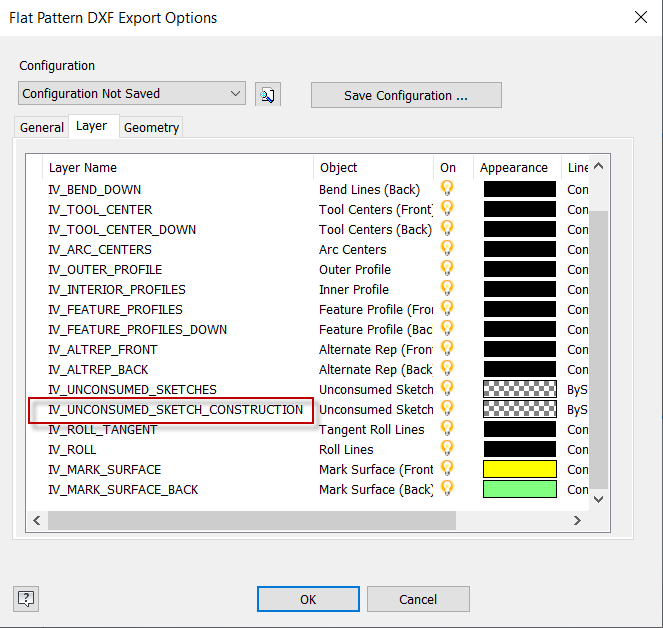

Support new UnconsumedSketchConstructionLayer layer setting when export to DXF format via DataIO.
Support to specify the FlatPattern as SourceObject argument when export to DXF, DWG, STEP and IGES formats for TranslatorAddin.SaveCopyAs method.
Add two new kThreadDirectionHoleProperty and kDrillPointHoleProperty enum values for adding hole table columns.

New Features of Inventor 2025.1

New CropOperation objects allow to create crop on a drawing view, and new ViewAnnotationStyle and CropViewAnnotationStyleSettings allow to specify the crop view annotation style settings.

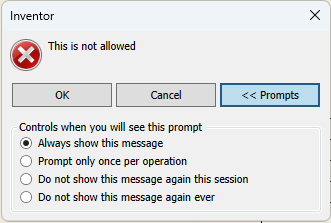

New PromptsOptions and PromptMessage objects allow to access the built-in prompts and create custom prompts.

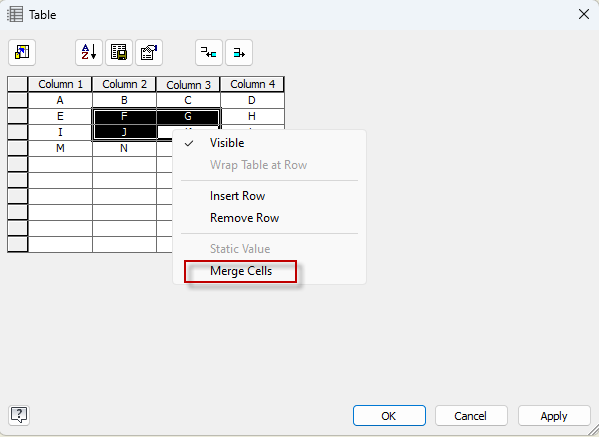

New MergeCell method allows to merge cells in a custom table, and the MergedCell objects allow to access the merged cells and unmerge them.

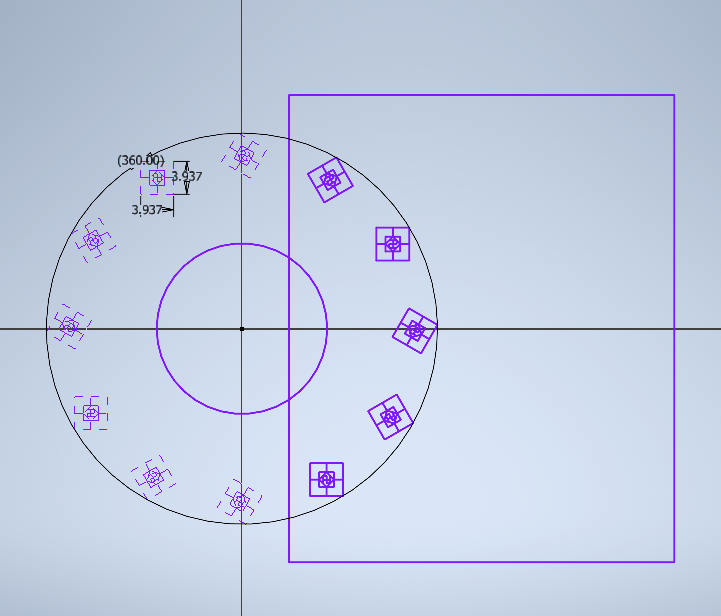

New SketchCircularPattern and SketchRectangularPattern objects allow to create and edit the sketch circular and rectangular patterns.

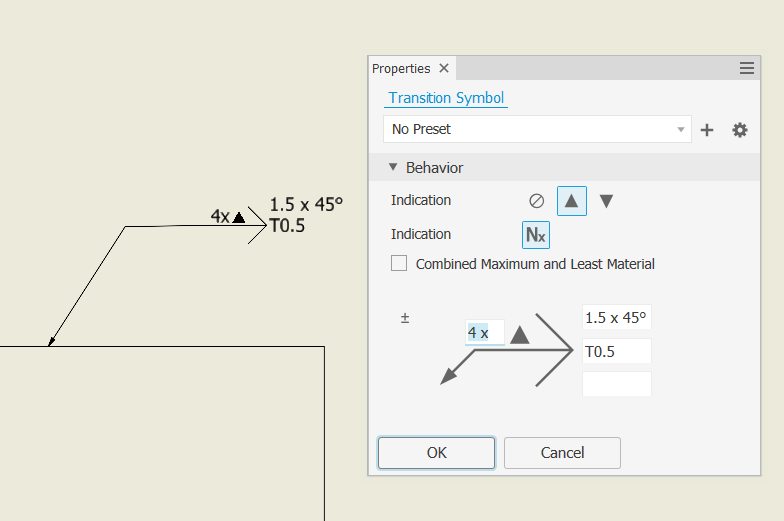

New TransitionSymbol objects allow to create and edit the transition symbols in drawing. New TransitionSymbolStyle allows to access the style for transition symbol.
New TransientGeometry.CreateArc2dByThreePoints2 method to return correct Arc2d result, hide and deprecate TransientGeometry.CreateArc2dByThreePoints method.
New FinishDefinition.IncludedEntities and ExcludedEntities properties to replace the FinishDefinition.InputFaces property.
New DerivedPartDefinition.LinkSheetMetalStyles property allows to get and set the link sheet metal styles option.

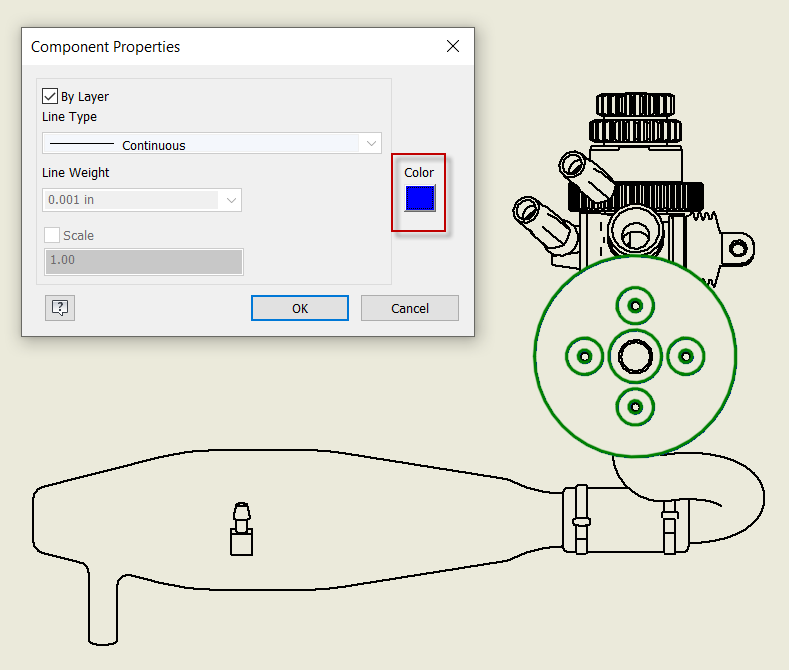

New DrawingView.GetComponentLineColor and SetComponentLineColor methods allow to query and edit the drawing curve line color for a component in drawing.
New DrawingViews.AddSectionView2 method allows to create a new section view with specifying target sheet and position.
New LibrarySketchedSymbolDefinition/SketchedSymbolDefinition.Thumbnail property allows to query the thumbnail of a sketched symbol definition.
New ModelWeldingSymbolDefinitions.AddFromWeldBead method allows to create a new ModelWeldingSymbolDefinition bases on a weldbead information.
Enhance ObjectDefaultsStyle to support more layer and style settings, including AuxiliaryViewLineLayer, AuxiliaryViewLineStyle, CropCutLineLayer, CropCutLineStyle, DetailCutLineLayer, DetailViewCalloutLayer, DetailViewCalloutStyle, SectionBreakLineLayer, SectionViewLineLayer, SectionViewLineStyle, TransitionSymbolLayer and TransitionSymbolStyle.
New SelectEvents.RestrictWindowSelectionToOccurrence property allows to specify the occurrence that can be selected by window selection in a select events.
New Application.ClientOperationEvents property to return the ClientOperationEvents object.

New Features of Inventor 2025.2

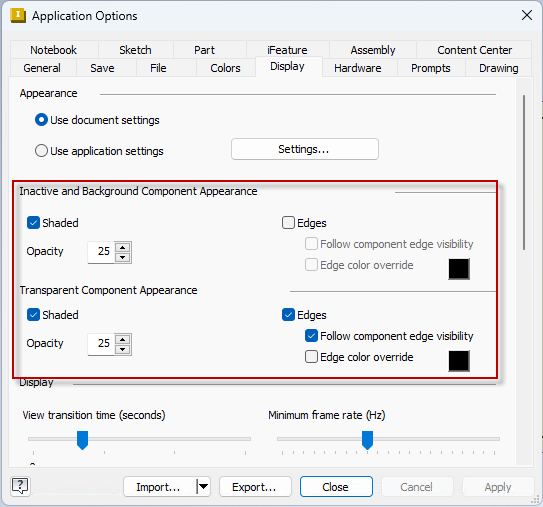

New options for DisplayOptions to control inactive and transparent component edges color.

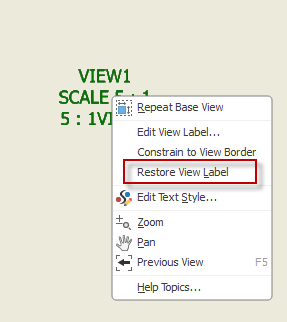

New DrawingViewLabel.RestoreViewLabel method allows to restore the drawing view label to default position.
New PresentationScene.ActiveModelState property allows to get and set the active model state for a presentation scene.
New SketchLines.AddByMidEndPoints method allows to add a new sketch line by providing the middle and one end points.

New Features of Inventor 2025.3

Public the CosmeticWelds.CreateDefinition and Add methods which allow to create new CosmeticWeld features in weldment.

New Objects

Name	Description
ClientOperationEvents	ClientOperationEvents object.
CropOperation	CropOperation object represents a crop applied to a drawing view.
CropOperations	CropOperations object represents all crop operations applied to a drawing view.

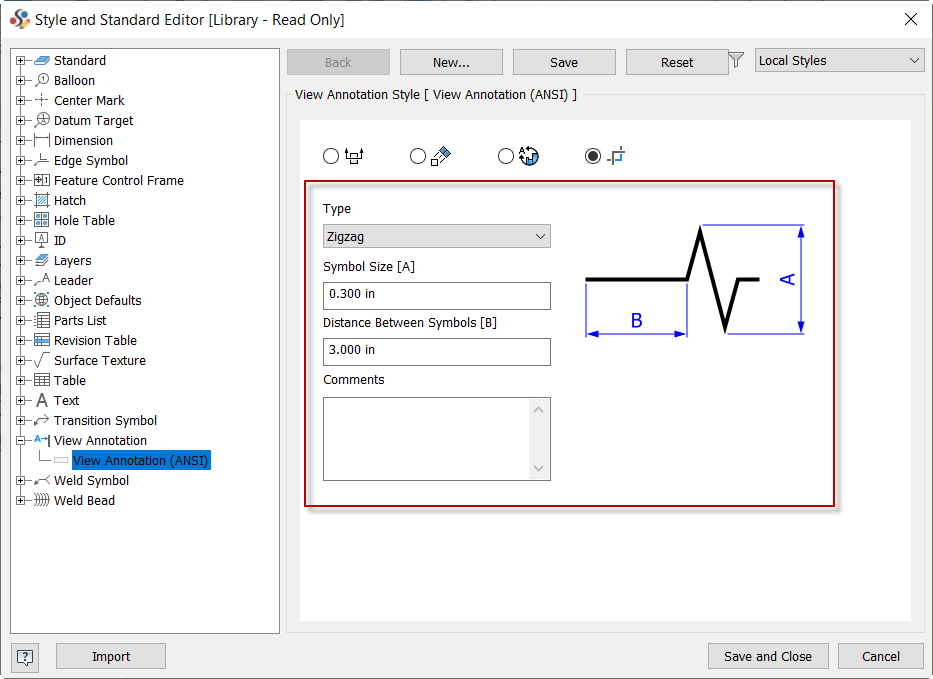

CropViewAnnotationStyleSettings	The CropViewAnnotationStyleSettings object represents a view annotation style settings for crop view.
FlangeEdgeSet	Flange edge set Object.
MergedCell	MergedCell Object.
MergedCellsEnumerator	MergedCellsEnumerator Object.
PartsListSortSettings	PartsListSortSetting Object.
PatternBoundarySetting	Pattern Boundary Settings object.
PromptMessage	PromptMessage object.
PromptMessages	PromptMessages object.
PromptsOptions	PromptsOptions object.
RevisionIndexDefaults	RevisionIndexDefaults Object.
SketchCircularPattern	SketchCircularPattern Object.
SketchCircularPatternDefinition	SketchCircularPatternDefinition Object.
SketchCircularPatterns	SketchCircularPatterns Collection Object.
SketchPatternElement	SketchPatternElement Object.
SketchPatternElements	SketchPatternElements Collection Object.
SketchRectangularPattern	SketchRectangularPattern Object.
SketchRectangularPatternDefinition	SketchRectangularPatternDefinition Object.
SketchRectangularPatterns	SketchRectangularPatterns Collection Object.
TransitionSymbol	TransitionSymbol Object.
TransitionSymbolDefinition	TransitionSymbolDefinition Object.
TransitionSymbols	TransitionSymbols Object.
TransitionSymbolStyle	TransitionSymbolStyle object.
TransitionSymbolStylesEnumerator	TransitionSymbolStylesEnumerator object.
ViewAnnotationStyle	ViewAnnotationStyle object.
ViewAnnotationStylesEnumerator	ViewAnnotationStylesEnumerator object.

New Methods, Properties and Events

Name	Description
Application.ClientOperationEvents	Read-only property that returns the ClientOperationEvents object.
Application.PromptsOptions	Gets the Prompts Options object.
Arc2d.MidPoint	Read-only property that returns the mid point of the arc.
AssemblyComponentDefinition.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.
AssemblyDocument.HasReferencesMissing	Read-only property that returns whether there are references missing for this document.
AssemblyDocument.ResolveFile	Method that invoke the resolve file for the document if there are references missing.
BendNote.Retrieved	Indicates whether the drawing note was created as a result of retrieving it from the model.
BendNote.RetrievedFrom	Returns the model annotation this drawing note was retrieved from.
Cell.Column	Returns the index of this cell within the parent Column.
Cell.IsMerged	Returns whether this cell is merged or not.
Cell.MergedCell	Returns the merged cell that this cell is merged in.
Cell.Row	Returns the index of this cell within the parent Row.
ChamferNote.Retrieved	Indicates whether the drawing note was created as a result of retrieving it from the model.
ChamferNote.RetrievedFrom	Returns the model annotation this drawing note was retrieved from.
ChangeProcessor.SuppressChangeNotifications	Method that sets whether the changes notifications within this change processor should be suppressed or not.
CircularPatternFeatureDefinition.BoundarySetting	Read-write property that gets and sets the PatternBoundarySetting object.
CircularPatternFeatureDefinition.HasBoundarySettingConfigured	Read-write property that gets and sets whether this pattern has boundary setting configured or not. When set this property it can only be set from True to False to clear the boundary setting.
ColorScheme.DisplaySeparateColors	Read-write property that gets and sets the colors that are used for display separate colors setting. Currently 32 colors are supported for display separate colors.
ColorSchemes.HighlightHiddenFaces	Gets and sets whether enables or disables hidden faces highlighting.
ComponentDefinition.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.
CornerRoundFeatures.GetEdgesFromFeature	Method that gets the edges from a part feature that can be used to create corner round feature.
CosmeticWelds.Add	Method that creates a CosmeticWeld and returns the newly created CosmeticWeld object.
CosmeticWelds.CreateDefinition	Method that creates a CosmeticWeldDefinition object.
CropOperation.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
CropOperation.AttributeSets	Gets the Attribute Sets collection on this object.
CropOperation.CropBoundarySketch	Read-only property that returns the drawing sketch used to specify the boundary for crop operation.
CropOperation.Delete	Method that deletes the CropOperation.
CropOperation.DisplayCropCutLine	Read-write property that gets and sets whether to display the crop cut line or not.
CropOperation.GetReferenceKey	Generate the sequence of bytes, called this object's reference key, which can be held onto beyond document edits and which will allow the caller to be bound back to the live object.
CropOperation.Parent	Gets the parent object from whom this object can logically be reached.
CropOperation.Style	Read-write property that gets and sets the view annotation style for this CropOperation.
CropOperation.Type	Gets the constant that indicates the type of this object.
CropOperations.Add	Method that adds a crop to a drawing view. The newly created CropOperation object is returned.
CropOperations.AddBySketch	Method that adds a crop to a drawing view. The newly created CropOperation object is returned.
CropOperations.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
CropOperations.Count	Gets the number of items in this collection.
CropOperations.Item	Allows integer-indexed access to items in the collection.
CropOperations.Type	Gets the constant that indicates the type of this object.
CropViewAnnotationStyleSettings.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
CropViewAnnotationStyleSettings.CropBreakMarkLineType	Read-write property that gets and sets break mark line type for crop view.
CropViewAnnotationStyleSettings.DistanceBetweenSymbols	Read-write property that gets and sets the distance between symbols.
CropViewAnnotationStyleSettings.Parent	Gets the parent object from whom this object can logically be reached.
CropViewAnnotationStyleSettings.SymbolSize	Read-write property that gets and sets the symbol size.
CropViewAnnotationStyleSettings.Type	Gets the constant that indicates the type of this object.
CustomTable.AddBendTagsToView	Method that adds bend tags to drawing view.
CustomTable.MergeCells	Merges the table cells.
CustomTable.MergedCells	Returns all MergedCell objects in a table.
DerivedPartCoordinateSystemDef.Finishes	Gets the collection of FinishFeatures available in the selected part along with the inclusion option for each FinishFeature.
DerivedPartCoordinateSystemDef.LinkSheetMetalStyles	Read-write Boolean property that specifies whether to link sheet metal styles or not. This is applicable only when derive another sheet metal document to current sheet metal document.
DerivedPartDefinition.Finishes	Gets the collection of FinishFeatures available in the selected part along with the inclusion option for each FinishFeature.
DerivedPartDefinition.LinkSheetMetalStyles	Read-write Boolean property that specifies whether to link sheet metal styles or not. This is applicable only when derive another sheet metal document to current sheet metal document.
DerivedPartTransformDef.Finishes	Gets the collection of FinishFeatures available in the selected part along with the inclusion option for each FinishFeature.
DerivedPartTransformDef.LinkSheetMetalStyles	Read-write Boolean property that specifies whether to link sheet metal styles or not. This is applicable only when derive another sheet metal document to current sheet metal document.
DerivedPartUniformScaleDef.Finishes	Gets the collection of FinishFeatures available in the selected part along with the inclusion option for each FinishFeature.
DerivedPartUniformScaleDef.LinkSheetMetalStyles	Read-write Boolean property that specifies whether to link sheet metal styles or not. This is applicable only when derive another sheet metal document to current sheet metal document.
DetailDrawingView.CropOperations	Read-only property that returns the CropOperations object containing information about all the crop operations applied to this view as well as methods to add crops.
DetailDrawingView.GetComponentLineColor	Method that gets color of a component in drawing view.
DetailDrawingView.SetComponentLineColor	Method that sets color for a component in the drawing view.
DimensionStyle.ArcLengthDimensionSymbolAbove	Gets and sets whether the arc length dimension symbol is above the arc length dimension value or before it.
DimensionStyle.GetHoleThreadNoteOptionValue	Gets the option value for hole thread notes.
DimensionStyle.HoleThreadTypeList	Returns the hole and thread type list.
DimensionStyle.SetHoleThreadNoteOptionValue	Sets the option value for hole thread notes.
DimensionText.BackgroundColor	Gets and sets the BackgroundColor associated with the DimensionText.
DimensionText.UseBackgroundColor	Gets and sets the UseBackgroundColor associated with the DimensionText.
DisplayOptions.EnableSmoothSketchLines	Gets/sets whether to use the smooth sketch line.
DisplayOptions.InactiveComponentsEdgeDisplayFollowVisibility	Read-write property that specifies whether inactive component edges display should follow the visibility setting of visual styles.
DisplayOptions.TransparentComponentsEdgeColor	Read-write property that gets and sets the color for the edge display (including silhouettes) for transparent components.
DisplayOptions.TransparentComponentsEdgeDisplay	Read-write property that specifies whether edges should be displayed for transparent components.
DisplayOptions.TransparentComponentsEdgeDisplayFollowVisibility	Read-write property that specifies whether transparent component edges display should follow the visibility setting of visual styles.
DisplayOptions.TransparentComponentsShaded	Read-write property that enables or disables contrasting shading for the display of transparent components.
DisplayOptions.TransparentComponentsShadeOpacity	Read-write property that gets and sets the opacity level (expressed as a percentage) for the shading of transparent components.
Document.HasReferencesMissing	Read-only property that returns whether there are references missing for this document.
Document.ResolveFile	Method that invoke the resolve file for the document if there are references missing.
DrawingDocument.HasReferencesMissing	Read-only property that returns whether there are references missing for this document.
DrawingDocument.ResolveFile	Method that invoke the resolve file for the document if there are references missing.
DrawingSketch.CircularPatterns	Gets the SketchCircularPatterns collection object.
DrawingSketch.RectangularPatterns	Gets the SketchRectangularPatterns collection object.
DrawingStylesManager.TransitionSymbolStyles	Read-only property that returns the TransitionSymbolStylesEnumerator object.
DrawingStylesManager.ViewAnnotationStyles	Read-only property that returns the ViewAnnotationStylesEnumerator object.
DrawingView.CropOperations	Read-only property that returns the CropOperations object containing information about all the crop operations applied to this view as well as methods to add crops.
DrawingView.GetComponentLineColor	Method that gets color of a component in drawing view.
DrawingView.SetComponentLineColor	Method that sets color for a component in the drawing view.
DrawingViewLabel.RestoreViewLabel	Method that restores the drawing view label to default position.
DrawingViews.AddSectionView2	Method that creates a section drawing view.
FileManager.GetRevitEngineInstallationStatus	Method that returns the Revit engine installation status for available versions.
FileManager.GetTemplateFileWithOptions	Method that gets a template file that can be used to create a new document.
FileManager.InstallRevitEngineVersion	Method that tries to install specified Revit engine and returns the installation status. The installation is asynchronous, and this returns kInstallationInProcessStatus if the installation is started.
FinishDefinition.DisableProperties	Method that disables or enables the properties in this finish definition.
FinishDefinition.ExcludedEntities	Read-write property that gets and sets the Face objects and their proxies that will be excluded from the finish feature. Valid objects in the ObjectCollection can be Face objects and the proxies.
FinishDefinition.IncludedEntities	Read-write property that gets and sets the Face and SurfaceBody objects and their proxies on which the finish feature is created. Valid objects in the ObjectCollection can be Face, SurfaceBody and the proxies, or FaceCollection that contains Face or FaceProxy.
FinishDefinition.IsPropertyDisabled	Method that returns whether the specified property is disabled or not.
FinishFeatures.CreateDefinition	Method that creates a new FinishDefinition object. The object created does not represent a finish feature but instead is a representation of the information that defines a finish feature. You can use this object as input to the FinishFeatures.Add method to cre.
FlangeDefinition.AddFlangeEdgeSet	Method that adds a new flange edge set.
FlangeDefinition.EdgeSetCount	Read-only property that returns the flange edge set count currently defined in this flange definition.
FlangeDefinition.EdgeSetItem	Method that returns the specified FlangeEdgeSet object from the collection.
FlangeDefinition.FlangeAngleReferenceType	Read-write property that gets and sets the flange angle reference type. When change this from flange angle value type to reference plane type the SetFlangeAngleReferenceType should be used.
FlangeDefinition.FlangePlacementType	Read-write property that gets and sets the flange placement type.
FlangeDefinition.SetFlangeAngleReferenceType	Method that removes the override width extent for the specified physical flange.
FlangeFeatures.CreateDefinition	Method that creates a new FlangeDefinition object. The object created does not represent a flange feature but instead is a representation of the information that defines a flange feature. You can use this object as input to the FlangeFeatures.Add method to cr.
FlatPattern.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.
GeneralNote.Retrieved	Indicates whether the drawing note was created as a result of retrieving it from the model.
GeneralNote.RetrievedFrom	Returns the model annotation this drawing note was retrieved from.
HoleFeature.DrillPointType	Gets and sets hole drill point type.
HoleFeature.SetDistanceExtent2	Method that specifies the termination type for the hole feature. Hole features can be specified to terminate at a particular distance or object, or can be specified as through all, which means it extends through all faces of the feature. This method defines th.
HoleFeature.SetToFaceExtent2	Method that specifies the termination type for the hole feature. Hole features can be specified to terminate at a particular distance or object, or can be specified as through all, which means it extends through all faces of the feature. This method defines th.
HoleFeatureProxy.DrillPointType	Gets and sets hole drill point type.
HoleFeatureProxy.SetDistanceExtent2	Method that specifies the termination type for the hole feature. Hole features can be specified to terminate at a particular distance or object, or can be specified as through all, which means it extends through all faces of the feature. This method defines th.
HoleFeatureProxy.SetToFaceExtent2	Method that specifies the termination type for the hole feature. Hole features can be specified to terminate at a particular distance or object, or can be specified as through all, which means it extends through all faces of the feature. This method defines th.
HoleFeatures.AddCBoreByDistanceExtent2	Method that creates a new counterbore HoleFeature using distance extents. The new HoleFeature is returned.
HoleFeatures.AddCBoreByToFaceExtent2	Method that creates a new counterbore HoleFeature using 'to face' extents. The new HoleFeature is returned.
HoleFeatures.AddCSinkByDistanceExtent2	Method that creates a new countersink HoleFeature using distance extents. The new HoleFeature is returned.
HoleFeatures.AddCSinkByToFaceExtent2	Method that creates a new countersink HoleFeature using 'to face' extents. The new HoleFeature is returned.
HoleFeatures.AddDrilledByDistanceExtent2	Method that creates a new drilled HoleFeature using distance extents. The new HoleFeature is returned.
HoleFeatures.AddDrilledByToFaceExtent2	Method that creates a new drilled HoleFeature using 'to face' extents. The new HoleFeature is returned.
HoleFeatures.AddSpotFaceByDistanceExtent2	Creates a new SpotFace HoleFeature using distance extents.
HoleFeatures.AddSpotFaceByToFaceExtent2	Creates a new SpotFace HoleFeature using to face extents.
HoleThreadNote.RightHandedThread	Gets and sets whether to show RH for right handed thread.
ImportedGenericComponentDefinition.IFCImportMethod	Read-write property that gets and sets the IFC import method. This is only applicable when import IFC file.
ImportedGenericComponentDefinition.ImportIFCGeometryAsMesh	Read-write property that gets and sets whether to import IFC geometry as mesh. This is only applicable when import IFC file.
ImportedGenericComponentDefinition.ImportIFCPropertiesAsCustomProperties	Read-write property that gets and sets whether to mark the parameters that are imported from IFC properties as export. This is applicable when the ImportMethod is set to kAsAssemblyImportMethod and ImoprtIFCPropertiesAsParameters is set to True when import IFC.
ImportedGenericComponentDefinition.ImportIFCPropertiesAsParameters	Read-write property that gets and sets whether to import IFC properties as Inventor parameters. This is applicable when the ImportMethod is set to kAsAssemblyImportMethod when import IFC file.
LeaderNote.Retrieved	Indicates whether the drawing note was created as a result of retrieving it from the model.
LeaderNote.RetrievedFrom	Returns the model annotation this drawing note was retrieved from.
LibrarySketchedSymbolDefinition.Thumbnail	Read-only property that returns the thumbnail of this object.
MergedCell.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
MergedCell.EndCell	Returns the end cell that is merged into this MergedCell.
MergedCell.Parent	Gets the parent object from whom this object can logically be reached.
MergedCell.StartCell	Returns the start cell that is merged into this MergedCell.
MergedCell.Type	Gets the constant that indicates the type of this object.
MergedCell.Unmerge	Splits this MergedCell object into individual cells.
MergedCellsEnumerator.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
MergedCellsEnumerator.Count	Gets the number of items in this collection.
MergedCellsEnumerator.Item	Allows integer-indexed access to items in the collection.
MergedCellsEnumerator.Type	Gets the constant that indicates the type of this object.
ModelHoleThreadNoteDefinition.RightHandedThread	Gets and sets whether to show RH for right handed thread.
ModelSurfaceTextureSymbolDefinition.ManufacturingProcess	Gets and sets the manufacturing process.
ModelSurfaceTextureSymbolDefinition.NumberOfFeatureElements	Gets and sets the number of feature elements.
ModelSurfaceTextureSymbolDefinition.ProfileDirection	Gets and sets the profile direction relative to primary surface lay direction.
ModelSurfaceTextureSymbolDefinition.StandardReference	Returns the standard reference type.
ModelSurfaceTextureSymbolDefinition.SurfaceProfileLowerTolerance	Gets and sets the surface profile lower tolerance.
ModelSurfaceTextureSymbolDefinition.SurfaceProfileUpperTolerance	Gets and sets the surface profile upper tolerance.
ModelWeldingSymbolDefinitions.AddFromWeldBead	Method that creates a new ModelWeldingSymbolDefinition. The new ModelWeldingSymbolDefinition will extract info from the WeldBead object but no associative with it so users can then modify the properties if necessary.
ObjectDefaultsStyle.AuxiliaryViewLineLayer	Read-write property that gets and sets the default layer for auxiliary view line.
ObjectDefaultsStyle.AuxiliaryViewLineStyle	Read-write property that gets and sets the default style for auxiliary view line.
ObjectDefaultsStyle.CropCutLineLayer	Read-write property that gets and sets the default layer for crop cut line.
ObjectDefaultsStyle.CropCutLineStyle	Read-write property that gets and sets the default style for crop cut line.
ObjectDefaultsStyle.DetailCutLineLayer	Read-write property that gets and sets the default layer for detail cut line.
ObjectDefaultsStyle.DetailViewCalloutLayer	Read-write property that gets and sets the default layer for detail view callout.
ObjectDefaultsStyle.DetailViewCalloutStyle	Read-write property that gets and sets the default style for detail view callout.
ObjectDefaultsStyle.SectionBreakLineLayer	Read-write property that gets and sets the default layer for section break line.
ObjectDefaultsStyle.SectionViewLineLayer	Read-write property that gets and sets the default layer for section view line.
ObjectDefaultsStyle.SectionViewLineStyle	Read-write property that gets and sets the default style for section view line.
ObjectDefaultsStyle.TransitionSymbolLayer	Gets and sets the default layer for transition symbols.
ObjectDefaultsStyle.TransitionSymbolStyle	Gets and sets the default style for transition symbols.
PartComponentDefinition.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.
PartDocument.HasReferencesMissing	Read-only property that returns whether there are references missing for this document.
PartDocument.ResolveFile	Method that invoke the resolve file for the document if there are references missing.
PartsListStyle.SortSettings	Gets the parts list sort settings.
PlanarSketch.CircularPatterns	Gets the SketchCircularPatterns collection object.
PlanarSketch.RectangularPatterns	Gets the SketchRectangularPatterns collection object.
PlanarSketchProxy.CircularPatterns	Gets the SketchCircularPatterns collection object.
PlanarSketchProxy.RectangularPatterns	Gets the SketchRectangularPatterns collection object.
PresentationDocument.HasReferencesMissing	Read-only property that returns whether there are references missing for this document.
PresentationDocument.ResolveFile	Method that invoke the resolve file for the document if there are references missing.
PresentationScene.ActiveModelState	Read-write property that gets and sets the name of active model state used for this presentation scene.
PromptMessage.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
PromptMessage.BuiltIn	Read-only property that returns whether the prompt message is built-in or not.
PromptMessage.Buttons	Read-only property that returns the buttons that are used for the prompt message.
PromptMessage.DefaultAnswer	Read-write property that gets and sets the default response for the prompt message.
PromptMessage.Delete	Method that deletes this prompt message. This is applicable for custom prompt messages.
PromptMessage.Display	Method that displays this prompt message. This is applicable for custom prompt messages.
PromptMessage.DisplayedPromptText	Read-only property that returns the displayed prompt text of the prompt message.
PromptMessage.Icon	Read-only property that returns the icon type of the prompt message. Values that can be used: vbCritical(16), vbExclamation(48), vbInformation(64), vbQuestion(32).
PromptMessage.Id	Read-only property that returns the Id of the prompt message.
PromptMessage.PromptText	Read-only property that returns the prompt text of the prompt message.
PromptMessage.Restrictions	Read-write property that gets and sets the restrictions for the prompt.
PromptMessage.Title	Read-only property that returns the title of the prompt message.
PromptMessage.Type	Gets the constant that indicates the type of this object.
PromptMessages.Add	Method that creates a new custom PromptMessage.
PromptMessages.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
PromptMessages.Count	Gets the number of items in this collection.
PromptMessages.Item	Allows VARIANT-indexed access to items in the collection. You can use names as indexes as well.
PromptMessages.Type	Gets the constant that indicates the type of this object.
PromptsOptions.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
PromptsOptions.DoNotShowMessagesForPreexistingProblems	Read-write Boolean property that gets and sets whether or not to show messages for pre-existing problems.
PromptsOptions.PromptMessages	Read-only property that returns the collection of prompt messages.
PromptsOptions.Type	Gets the constant that indicates the type of this object.
PunchNote.Retrieved	Indicates whether the drawing note was created as a result of retrieving it from the model.
PunchNote.RetrievedFrom	Returns the model annotation this drawing note was retrieved from.
RectangularPatternFeatureDefinition.BoundarySetting	Read-write property that gets and sets the PatternBoundarySetting object.
RectangularPatternFeatureDefinition.HasBoundarySettingConfigured	Read-write property that gets and sets whether this pattern has boundary setting configured or not. When set this property it can only be set from True to False to clear the boundary setting.
RevisionCloudDefinition.MaximumArcRadius	Gets and sets the maximum arc radius.
RevisionCloudDefinition.MinimumArcRadius	Gets and sets the minimum arc radius.
RevisionCloudDefinition.SetValuesAsDefault	Gets and sets whether to set the arc radius values as default for next time when create a new RevisionCloudDefinition.
RevisionTableStyle.RevisionIndexDefaults	Gets the RevisionIndexDefaults object.
RevitExportDefinition.RevitVersion	Read-write property that gets and sets the Revit version. Use the FileManager.GetRevitEngineInstallationStatus to get the Revit versions that can be used to create RevitExport objects.
SectionDrawingView.CropOperations	Read-only property that returns the CropOperations object containing information about all the crop operations applied to this view as well as methods to add crops.
SectionDrawingView.GetComponentLineColor	Method that gets color of a component in drawing view.
SectionDrawingView.SetComponentLineColor	Method that sets color for a component in the drawing view.
SelectEvents.RestrictSelectionToOccurrence	Read-write property that gets and sets the ComponentOccurrence to which the selection should be restricted.
SelectEvents.RestrictWindowSelectionToOccurrence	Read-write property that gets and sets the ComponentOccurrence the window selection should be restricted to.
Sheet.GetAvailableDesignViewsToRetrieve3DAnnotations	Gets an array of strings containing names of the design views of model document that the 3D annotations can be retrieved from.
Sheet.GetRetrievableAnnotations	Returns a collection of objects that represent the valid set of model dimensions that can be retrieved into the input drawing view.
Sheet.RetrieveAnnotations	Retrieves sketch and/or model annotations into the drawing.
Sheet.TransitionSymbols	Returns the collection of edge symbols on this sheet.
SheetMetalComponentDefinition.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.
Sketch.CircularPatterns	Gets the SketchCircularPatterns collection object.
Sketch.RectangularPatterns	Gets the SketchRectangularPatterns collection object.
SketchBlockDefinition.CircularPatterns	Gets the SketchCircularPatterns collection object.
SketchBlockDefinition.RectangularPatterns	Gets the SketchRectangularPatterns collection object.
SketchBlockDefinitionProxy.CircularPatterns	Gets the SketchCircularPatterns collection object.
SketchBlockDefinitionProxy.RectangularPatterns	Gets the SketchRectangularPatterns collection object.
SketchCircularPattern.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchCircularPattern.AttributeSets	Returns the AttributeSets collection object associated with this object.
SketchCircularPattern.Constraints	Returns a collection of sketch constraints that are tied directly to this entity. This collection consists of both geometric and dimension constraints.
SketchCircularPattern.ConstraintStatus	Returns the constraint status of the sketch entity. Possible return values are kFullyConstrainedConstraintStatus, kOverConstrainedConstraintStatus, kUnderConstrainedConstraintStatus and kUnknownConstraintStatus.
SketchCircularPattern.Definition	Gets and sets the associative definition of the sketch patter.
SketchCircularPattern.Delete	Deletes the sketch pattern.
SketchCircularPattern.Elements	Returns the SketchPatternElements collection objec.
SketchCircularPattern.Parent	Gets the parent object from whom this object can logically be reached.
SketchCircularPattern.RangeBox	Returns a Box2d object which contains the diagonal points of a rectangle that tightly encloses the entity.
SketchCircularPattern.Type	Gets the constant that indicates the type of this object.
SketchCircularPatternDefinition.Angle	Gets and sets the angle between instances.
SketchCircularPatternDefinition.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchCircularPatternDefinition.Associative	Gets and sets whether the pattern will update when changes are made to the part. If set this to False then the pattern constraints will be removed and the pattern will not update when change an element.
SketchCircularPatternDefinition.AxisEntity	Gets and sets the axis entity.
SketchCircularPatternDefinition.BoundarySetting	Gets and set the PatternBoundarySetting object. When set this property a PatternBoundarySetting can be copied using PatternBoundarySetting.
SketchCircularPatternDefinition.Copy	Creates a copy of this SketchCircularPatternDefinition object. The new SketchCircularPatternDefinition object is independent of any pattern.
SketchCircularPatternDefinition.Count	Gets and sets the number of instances.
SketchCircularPatternDefinition.Fitted	Gets and sets whether pattern elements are equally fitted within the specified angle.
SketchCircularPatternDefinition.Geometries	Gets and sets the ObjectCollection object that contains the sketch geometries to be patterned.
SketchCircularPatternDefinition.HasBoundarySettingConfigured	Gets and sets whether this pattern has boundary setting configured or not.
SketchCircularPatternDefinition.NaturalAxisDirection	Gets and sets the flag that indicates if the direction of the pattern is in the natural direction of the AxisEntity or reversed.
SketchCircularPatternDefinition.SuppressedElements	Gets and sets the suppressed elements.
SketchCircularPatternDefinition.Symmetric	Gets and sets if the occurrences are distributed on both sides of the original geometry.
SketchCircularPatternDefinition.Type	Gets the constant that indicates the type of this object.
SketchCircularPatterns.Add	Creates a new sketch circular pattern. The new SketchCircularPattern object is returned.
SketchCircularPatterns.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchCircularPatterns.Count	Gets the number of items in this collection.
SketchCircularPatterns.CreateDefinition	Creates a new sketch circular pattern definition. The new SketchCircularPatternDefinition object is returned.
SketchCircularPatterns.Item	Allows integer-indexed access to items in the collection.
SketchCircularPatterns.Type	Gets the constant that indicates the type of this object.
SketchedSymbolDefinition.Thumbnail	Returns the thumbnail of this objec.
SketchLines.AddByMidEndPoints	Method that creates a new sketch line based on the mid and end points. The new sketch line is returned.
SketchPatternElement.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchPatternElement.Index	Returns the index of this element within the pattern.
SketchPatternElement.Parent	Returns the parent pattern this element is a member of.
SketchPatternElement.Suppressed	Gets and sets whether this pattern element is suppressed or not.
SketchPatternElement.Type	Gets the constant that indicates the type of this object.
SketchPatternElements.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchPatternElements.Count	Gets the number of items in this collection.
SketchPatternElements.Item	Allows integer-indexed access to items in the collection.
SketchPatternElements.Type	Gets the constant that indicates the type of this object.
SketchRectangularPattern.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchRectangularPattern.AttributeSets	Returns the AttributeSets collection object associated with this object.
SketchRectangularPattern.Constraints	Returns a collection of sketch constraints that are tied directly to this entity. This collection consists of both geometric and dimension constraints.
SketchRectangularPattern.ConstraintStatus	Returns the constraint status of the sketch entity. Possible return values are kFullyConstrainedConstraintStatus, kOverConstrainedConstraintStatus, kUnderConstrainedConstraintStatus and kUnknownConstraintStatus.
SketchRectangularPattern.Definition	Gets and sets the associative definition of the sketch pattern.
SketchRectangularPattern.Delete	Deletes the sketch pattern.
SketchRectangularPattern.Elements	Returns the SketchPatternElements collection object.
SketchRectangularPattern.Parent	Gets the parent object from whom this object can logically be reached.
SketchRectangularPattern.RangeBox	Returns a Box2d object which contains the diagonal points of a rectangle that tightly encloses the entity.
SketchRectangularPattern.Type	Gets the constant that indicates the type of this object.
SketchRectangularPatternDefinition.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchRectangularPatternDefinition.Associative	Gets and sets whether the pattern will update when changes are made to the part. If set this to False then the pattern constraints will be removed and the pattern will not update when change an element.
SketchRectangularPatternDefinition.BoundarySetting	Gets and set the PatternBoundarySetting object. When set this property a PatternBoundarySetting can be copied using PatternBoundarySetting.
SketchRectangularPatternDefinition.Copy	Creates a copy of this SketchRectangularPatternDefinition object. The new SketchRectangularPatternDefinition object is independent of any pattern.
SketchRectangularPatternDefinition.Fitted	Gets and sets whether pattern elements are equally fitted within the specified distances.
SketchRectangularPatternDefinition.Geometries	Gets and sets the ObjectCollection object that contains the sketch geometries to be patterned.
SketchRectangularPatternDefinition.HasBoundarySettingConfigured	Gets and sets whether this pattern has boundary setting configured or not.
SketchRectangularPatternDefinition.NaturalXDirection	Gets and sets the flag that indicates if the direction of the pattern is in the natural direction of the XDirectionEntity or reversed.
SketchRectangularPatternDefinition.NaturalYDirection	Gets and sets the flag that indicates if the direction of the pattern is in the natural direction of the YDirectionEntity or reversed.
SketchRectangularPatternDefinition.SuppressedElements	Gets and sets the suppressed elements.
SketchRectangularPatternDefinition.Type	Gets the constant that indicates the type of this object.
SketchRectangularPatternDefinition.XCount	Gets and sets the number of instances in the X direction.
SketchRectangularPatternDefinition.XDirectionEntity	Gets and sets the X direction entity.
SketchRectangularPatternDefinition.XDirectionSymmetric	Gets and sets if the occurrences are distributed on both sides of the original geometry.
SketchRectangularPatternDefinition.XSpacing	Gets and sets the spacing between instances in the X direction.
SketchRectangularPatternDefinition.YCount	Gets and sets the number of instances in the Y direction.
SketchRectangularPatternDefinition.YDirectionEntity	Gets and sets the Y direction entity.
SketchRectangularPatternDefinition.YDirectionSymmetric	Gets and sets if the occurrences are distributed on both sides of the original geometry.
SketchRectangularPatternDefinition.YSpacing	Gets and sets the spacing between instances in the Y direction.
SketchRectangularPatterns.Add	Creates a new sketch rectangular pattern. The new SketchRectangularPattern object is returned.
SketchRectangularPatterns.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
SketchRectangularPatterns.Count	Gets the number of items in this collection.
SketchRectangularPatterns.CreateDefinition	Creates a new sketch rectangular pattern definition. The new SketchRectangularPatternDefinition object is returned.
SketchRectangularPatterns.Item	Allows integer-indexed access to items in the collection.
SketchRectangularPatterns.Type	Gets the constant that indicates the type of this object.
SurfaceTextureANSIDefinition.StandardReference	Returns the standard reference type.
SurfaceTextureBSIDefinition.StandardReference	Returns the standard reference type.
SurfaceTextureDINDefinition.StandardReference	Returns the standard reference type.
SurfaceTextureGBDefinition.StandardReference	Returns the standard reference type.
SurfaceTextureGOSTDefinition.StandardReference	Returns the standard reference type.
SurfaceTextureISODefinition.ManufacturingProcess	Gets and sets the manufacturing process.
SurfaceTextureISODefinition.NumberOfFeatureElements	Gets and sets the number of feature elements.
SurfaceTextureISODefinition.ProfileDirection	Gets and sets the profile direction relative to primary surface lay direction.
SurfaceTextureISODefinition.StandardReference	Returns the standard reference type.
SurfaceTextureISODefinition.SurfaceProfileLowerTolerance	Gets and sets the surface profile lower tolerance.
SurfaceTextureISODefinition.SurfaceProfileUpperTolerance	Gets and sets the surface profile upper tolerance.
SurfaceTextureJISDefinition.StandardReference	Returns the standard reference type.
SurfaceTextureStyle.AvailableProfileDirectionSymbols	Gets and sets a bit mask defining the profile direction symbols to be made available for surface texture symbol creation.
SurfaceTextureStyle.EnableAllAroundSymbol	Gets and sets whether to enable the all-around indicator to the symbol.
SurfaceTextureStyle.StandardReferenceType	Gets and sets the drafting standard that controls surface texture symbol format.
SurfaceTextureSymbolDefinition.StandardReference	Returns the standard reference type.
Transaction.SuppressChangeNotifications	Method that sets whether the changes notifications within this transaction should be suppressed or not.
TransientGeometry.CreateArc2dByThreePoints2	Method that creates a Arc2d object.
TransitionSymbol.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
TransitionSymbol.AttachmentType	Returns the attachment type for the transition symbol when it is created.
TransitionSymbol.AttributeSets	Gets the Attribute Sets collection on this object.
TransitionSymbol.CopyTo	Copies the transition symbol to specified sheet.
TransitionSymbol.Definition	Gets and sets the TransitionSymbolDefinition object associated with this transition symbol.
TransitionSymbol.Delete	Deletes the TransitionSymbol.
TransitionSymbol.GetReferenceKey	Generate the sequence of bytes, called this object's reference key, which can be held onto beyond document edits and which will allow the caller to be bound back to the live object.
TransitionSymbol.Leader	Returns the Leader object.
TransitionSymbol.Parent	Gets the parent object from whom this object can logically be reached.
TransitionSymbol.Position	Gets and sets the position of the transition symbol on the sheet.
TransitionSymbol.Type	Gets the constant that indicates the type of this object.
TransitionSymbolDefinition.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
TransitionSymbolDefinition.CenterMainIndicationArea	Gets and sets the center main indication area value.
TransitionSymbolDefinition.CenterMainIndicationArea2	Gets and sets the center main indication area value for combined maximum material and least material radius boundary specification.
TransitionSymbolDefinition.CombinedMaximumAndLeastMaterial	Gets and sets whether to combine maximum material and least material radius boundary specification for the transition symbol.
TransitionSymbolDefinition.Copy	Creates a copy of this TransitionSymbolDefinition object.
TransitionSymbolDefinition.IndicationType	Gets and sets the indication type of the transition symbol.
TransitionSymbolDefinition.Layer	Gets and sets the layer associated with this object.
TransitionSymbolDefinition.LowerMainIndicationArea	Gets and sets the lower main indication area value.
TransitionSymbolDefinition.LowerMainIndicationArea2	Gets and sets the lower main indication area value for combined maximum material and least material radius boundary specification.
TransitionSymbolDefinition.Parent	Gets the parent object from whom this object can logically be reached.
TransitionSymbolDefinition.SeveralTolerancedFeaturesIndication	Gets and sets the several tolerance features indication value.
TransitionSymbolDefinition.Style	Gets and sets the transition symbol style associated with this object.
TransitionSymbolDefinition.Type	Gets the constant that indicates the type of this object.
TransitionSymbolDefinition.UpperMainIndicationArea	Gets and sets the upper main indication area value.
TransitionSymbolDefinition.UpperMainIndicationArea2	Gets and sets the upper main indication area value for combined maximum material and least material radius boundary specification.
TransitionSymbols.Add	Creates a new transition symbol.
TransitionSymbols.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
TransitionSymbols.Count	Gets the number of items in this collection.
TransitionSymbols.CreateDefinition	Creates a new transition symbol definition.
TransitionSymbols.Item	Allows integer-indexed access to items in the collection.
TransitionSymbols.Type	Gets the constant that indicates the type of this object.
TransitionSymbolStyle.Application	t_Application
TransitionSymbolStyle.Comments	Gets and sets comments associated with the style.
TransitionSymbolStyle.ConvertToLocal	Method that creates a local cached copy of a global style and returns the local style.
TransitionSymbolStyle.Copy	Method that creates a new local Style object. The newly created style is returned.
TransitionSymbolStyle.Delete	Method that deletes the Style/Layer/UnfoldMethod.
TransitionSymbolStyle.GetReferenceKey	t_GetReferenceKey
TransitionSymbolStyle.InternalName	Property that returns the internal name of the style. The name is the internal English name of the standard style. This name will remain constant and is not affected by locale. This name is never displayed to the user. Note that this name is not guaranteed to be unique.
TransitionSymbolStyle.InUse	Property that indicates if this style is in use.
TransitionSymbolStyle.LeaderStyleForEdgeSelected	Gets and sets the leader style used for the transition symbol style when attaches to geometry.
TransitionSymbolStyle.LeaderStyleForFaceSelected	Gets and sets the leader style used for the transition symbol style when attaches to drawing view.
TransitionSymbolStyle.Name	Gets/Sets the name of the Style.
TransitionSymbolStyle.Parent	Property returning the parent of this object.
TransitionSymbolStyle.SaveToGlobal	Method that saves this style to the global repository. If a style with the same name is found in the repository, that style is updated.
TransitionSymbolStyle.StyleLocation	Property that returns the location of this style, i.e. local to the document, cached locally in the document, exists in the library. Styles that exist in the library cannot be edited.
TransitionSymbolStyle.StyleType	Gets the type of the style.
TransitionSymbolStyle.TextStyle	Gets and sets the text style used for the transition symbol style.
TransitionSymbolStyle.Type	t_Type
TransitionSymbolStyle.UpdateFromGlobal	Method that updates this style from the global repository.
TransitionSymbolStyle.UpToDate	Property that gets the up-to-date status of the style against the global repository.
TransitionSymbolStylesEnumerator.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
TransitionSymbolStylesEnumerator.Count	Gets the number of items in this collection.
TransitionSymbolStylesEnumerator.Item	Allows VARIANT-indexed access to items in the collection. You can use names as indexes as well.
TransitionSymbolStylesEnumerator.Type	Gets the constant that indicates the type of this object.
UnwrapDefinition.SeamEdges	Read-write property that gets and sets an EdgeCollection that specifies the seam edges.
UnwrapFeatures.CreateDefinitionWithOptions	Method that creates the UnwrapDefinition. The object created does not represent a Unwrap feature but instead is a representation of the information that defines a Unwrap feature. You can use this object as input to the UnwrapFeatures.Add method to create the.
View.DisplaySeparateColorsType	Read-write property that gets and sets which type of display separate colors will be applied.
ViewAnnotationStyle.Application	t_Application
ViewAnnotationStyle.Comments	Gets and sets comments associated with the style.
ViewAnnotationStyle.ConvertToLocal	Method that creates a local cached copy of a global style and returns the local style.
ViewAnnotationStyle.Copy	Method that creates a new local Style object. The newly created style is returned.
ViewAnnotationStyle.CropViewAnnotationSettings	Read-only property that returns the CropViewAnnotationStyleSettings object.
ViewAnnotationStyle.Delete	Method that deletes the Style/Layer/UnfoldMethod.
ViewAnnotationStyle.GetReferenceKey	t_GetReferenceKey
ViewAnnotationStyle.InternalName	Property that returns the internal name of the style. The name is the internal English name of the standard style. This name will remain constant and is not affected by locale. This name is never displayed to the user. Note that this name is not guaranteed to be unique.
ViewAnnotationStyle.InUse	Property that indicates if this style is in use.
ViewAnnotationStyle.Name	Gets/Sets the name of the Style.
ViewAnnotationStyle.Parent	Property returning the parent of this object.
ViewAnnotationStyle.SaveToGlobal	Method that saves this style to the global repository. If a style with the same name is found in the repository, that style is updated.
ViewAnnotationStyle.StyleLocation	Property that returns the location of this style, i.e. local to the document, cached locally in the document, exists in the library. Styles that exist in the library cannot be edited.
ViewAnnotationStyle.StyleType	Gets the type of the style.
ViewAnnotationStyle.Type	t_Type
ViewAnnotationStyle.UpdateFromGlobal	Method that updates this style from the global repository.
ViewAnnotationStyle.UpToDate	Property that gets the up-to-date status of the style against the global repository.
ViewAnnotationStylesEnumerator.Application	Gets the root Application object. Where the property is weakly-typed, it can be set to (QueryInterfaced for) 'Application' when running with Inventor whereas, 'ApprenticeServer' when running with the Apprentice Server.
ViewAnnotationStylesEnumerator.Count	Gets the number of items in this collection.
ViewAnnotationStylesEnumerator.Item	Allows VARIANT-indexed access to items in the collection. You can use names as indexes as well.
ViewAnnotationStylesEnumerator.Type	Gets the constant that indicates the type of this object.
VirtualComponentDefinition.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.
WeldmentComponentDefinition.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.
WeldsComponentDefinition.RepositionObject	Method that repositions the specifies object(s) to the new position within the collection of the object in the document.

Help created: Saturday, December 21, 2024 9:37 PM

What's New For the Release

New Features of Inventor 2025

New Features of Inventor 2025.1

New Features of Inventor 2025.2

New Features of Inventor 2025.3

New Objects

New Methods, Properties and Events

Was this information helpful?
