The top-level of the application in scripts run from the User Interface and Exchange.

This is a static class, meaning that methods are used anywhere in your scripts with WSApplication.method_name syntax. Most methods are used to get/set global application settings, or create/open databases.

Methods:

• add_ons_folder
• background_network
• cancel_job
• choose_selection
• color
• connect_local_agent
• create
• create_transportable
• current_database
• current_network
• file_dialog
• folder_dialog
• graph
• input_box
• launch_sims
• launch_sims_ex
• local_root
• map_component
• map_component= (Set)
• message_box
• open
• open_text_view
• override_user_unit
• override_user_units
• prompt
• results_folder
• rpa_export
• scalars
• script_file
• set_exit_code
• set_results_folder
• set_working_folder
• ui?
• use_arcgis_desktop_licence
• use_user_units= (Set)
• use_user_units?
• use_utf8= (Set)
• use_utf8?
• version
• wait_for_jobs
• wds_query_databases
• working_folder

add_ons_folder

#add_ons_folder ⇒ String

EXCHANGE, UI

Returns the full path of the add-ons folder e.g.

C:\Users\badger\AppData\Roaming\Innovyze\WorkgroupClient\scripts

Note that the folder will not exist unless manually created. Its parent folder will almost certainly exist.

Parameters

background_network

#background_network ⇒ WSOpenNetwork?

UI

Returns the active background network, which will be from the GeoPlan that currently has focus.

cancel_job

#cancel_job(id) ⇒ void

EXCHANGE

Cancel a job being run by the agent.

Parameters

choose_selection

#choose_selection(title) ⇒ WSModelObject?

UI

Displays a prompt allowing the user to choose a selection list object from the current database.

Parameters

color

#color(r, g, b) ⇒ Integer

UI

This method converts RGB values to an integer format suitable for the #graph method.

#color(0, 0, 0) returns black, #color(255, 0, 0) returns red, #color(255, 255, 255) returns white.

Parameters

connect_local_agent

#connect_local_agent(timeout) ⇒ Boolean

EXCHANGE

Connects to the local agent.

Parameters

create

#create(path, version) ⇒ void

EXCHANGE

Creates a new database, which can be a standalone or workgroup database. To create a transportable database, use the #create_transportable method instead.

Examples

WSApplication.create('C:/Badger/MyNewDatabase.icmm')
WSApplication.create('C:/Badger/MyNewDatabase.icmm', "2024.0")
WSApplication.create('localhost:40000/Badger/MyNewDatabase')
WSApplication.create('localhost:40000/Badger/MyNewDatabase', "2024.0")

Parameters

Exceptions

• Error 43 : Can't overwrite an existing database - if the database already exists
• C:/Badger/MyNewDatabase.icmm contains an incorrect path - if the database path is invalid

create_transportable

#create_transportable(path, version) ⇒ void

EXCHANGE

Creates a transportable database.

Examples

WSApplication.create('C:/Temp/Badger.wspt')
WSApplication.create('C:/Temp/Badger.wspt', "2024.0")

Parameters

current_database

#current_database ⇒ WSDatabase

UI

Returns the current database, when the script is running in the user interface. Note that there is limited database functionality from the UI.

Parameters

current_network

#current_network ⇒ WSOpenNetwork

UI

Returns the active network, which will be from the GeoPlan that currently has focus.

The current network may have results loaded, and/or be read only. If results are loaded then these will be available to the script.

Parameters

file_dialog

#file_dialog(open, extension, description, default, multiple, hard_wire_cancel) ⇒ String? or Array\<String>?

UI

Displays a file prompt (open or save), and if OK is selected returns the file path, or if allow_multiple_files was set to true, an array of selected files.

It is not possible to indicate a default folder to open the dialog in.

Parameters

folder_dialog

#folder_dialog(title, hard_wire_cancel) ⇒ String?

UI

Displays a dialog allowing the user to select a folder.

Parameters

graph

#graph(options) ⇒ void

UI

Displays a graph according to the parameters passed in.

The graph method contains 1 parameter, a hash. It has the following keys, which are all strings:

• WindowTitle - a string containing the title of the window
• GraphTitle - a string containing the title of the graph
• XAxisLabel - a string containing the label of the X-axis
• YAxisLabel - a string containing the label of the Y-axis
• IsTime - a boolean (or statement which evaluates as true or false) which should be set to true if the x axis is made up of time values and is labelled as dates / times.
• Traces - an array of traces

Each trace in the array of traces is in turn also a hash. The trace hash has the following keys, which are all strings:

• Title - a string giving the trace's name
• TraceColour - an integer containing an RGB value of the trace's colour. A convenient way of getting this is to use the WSApplicatioon.colour method
• SymbolColour - an integer containing an RGB value of the colour used for the symbol used at the points along the trace. A convenient way of getting this is to use the WSApplicatioon.colour method
• Marker - a string containing the symbol to be used for the points along the trace - possible values are (F means 'filled'):
  • None, Cross, XCross, Star, Circle, Triangle, Diamond, Square, FCircle, FTriangle, FDiamond, FSquare
• LineType - a string containing the style to be used for the trace's line - possible values are:
  • None, Solid, Dash, Dot, DashDot, DashDotDot
• XArray - an array containing the values used in the trace for the x coordinates of the points. They must be floating point values (or values that can be converted to a floating point values) if IsTime is false or time values if IsTime is true.
• YArray - an array containing the values used in the trace for the x coordinates of the points. They must be floating point values (or values that can be converted to a floating point values).

There must be an equal number of values in the XArray and YArray in each trace, though they can vary between traces.

input_box

#input_box(prompt, title, default) ⇒ String?

UI

Displays a dialog prompting the user for a text value.

Can also be used for number values, but you will need to convert and validate the input manually, for example:

distance = WSApplication.input_box('Distance in Meters (1-100m)', 'Enter A Distance', '50.0')
distance_f = distance.to_f
raise format("Invalid Value: %s", distance) unless (distance_f&.between?(0, 100)

Parameters

launch_sims

#launch_sims(sims, server, results_on_server, max_threads, after) ⇒ Array<String>

EXCHANGE

Launches one or more simulations. This method requires #connect_local_agent to have been called already.

The job IDs returned are intended for use as parameters to the #wait_for_jobs method and the #cancel_job method. Any nil values in the array will be safely ignored by the #wait_for_jobs method so the results array may be passed into it.

Parameters

launch_sims_ex

#launch_simsex(sims, options) ⇒ Array<String>

EXCHANGE

Launches one or more simulations. This method requires #connect_local_agent to have been called already.

The job IDs returned are intended for use as parameters to the #wait_for_jobs method and the #cancel_job method. Any nil values in the array will be safely ignored by the #wait_for_jobs method so the results array may be passed into it.

The options hash contains the following keys:

Parameters

local_root

#local_root ⇒ String

EXCHANGE, UI

This method has no arguments and returns a string indicating the working folder.

Example

puts WSApplication.local_root

Parameters

map_component

#map_component ⇒ String?

EXCHANGE

Returns the map component being used.

Parameters

map_component= (Set)

#map_component=(component) ⇒ void

EXCHANGE

Sets the map component to be used.

Parameters

message_box

#message_box(text, buttons, icon, hard_wire_cancel) ⇒ String?

UI

Displays a message box. The title bar cannot be customised.

Icon '!' or nil:

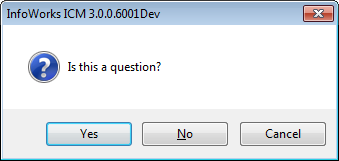

Icon '?':

Icon 'Information':

Icon 'Stop':

Buttons 'OK':

Buttons 'OkCancel' or nil:

Buttons 'YesNo':

Buttons 'YesNoCancel':

Parameters

open

#open() ⇒ WSDatabase
#open(path) ⇒ WSDatabase
#open(path, update) ⇒ WSDatabase
#open(path, version) ⇒ WSDatabase

EXCHANGE

Opens a database and returns it as a WSDatabase object.

Note that this method implements method overloading, where the second positional parameter is either update or version depending on the type.

You should only open one instance of a database per Exchange process. Opening multiple instances of the same database, even if the variable containing the earlier instance is now out of scope, can cause errors. Multiple instances of unique databases is ok.

Parameters

Exceptions

• Error 13 : File Not Found : C:/Badger/MyDatabase.icmm (error=2: "The system cannot find the file specified.") - if the database is not present
• Error 13 : File Not Found : C:/Badger/MyDatabase.icmm (error=3: "The system cannot find the path specified.") - if the database path is invalid
• no database path specified - if the path is nil and there is no recently opened database in the UI
• minor update failed major update failed - if there is a problem with a database update
• database requires minor update but allow update flag is not set database requires major update but allow update flag is not set - if the database requires an update, but the update parameter is false

open_text_view

#open_text_view(title, filename, delete_on_exit) ⇒ void

UI

Opens a text file and displays it in a dialog.

This does not block the current thread, meaning that the dialog is opened and the script will continue running and potentially exit.

Parameters

override_user_unit

#override_user_unit(code, value) ⇒ Boolean

EXCHANGE

Used to override a user unit for the duration of the script. This may be useful where Exchange is running on a system that does not have any existing user settings, and you don't want to use the default user units selected for the locale.

success = WSApplication.override_user_unit('X', 'ft')
raise "Failed to set user unit X" unless success

To apply user unit overrides in bulk using a CSV file, use the #override_user_units method.

Parameters

override_user_units

#override_user_units(file) ⇒ String

EXCHANGE

Used to override the user units for the duration of the script, using a CSV file. This may be useful where Exchange is running on a system that does not have any existing user settings, and you don't want to use the default user units selected for the locale.

The CSV file should contain comma separated pairs of the unit code and unit value with no header, for example:

XY, US Survey ft

All valid units from the CSV will be applied, even if there are some errors with lines in the file.

errs = WSApplication.override_user_units('c:/temp/uu.csv')
puts format("Error reading CSV file: %s", errs) unless errs == ''

To apply unit overrides directly, see the #override_user_unit method.

Parameters

Exceptions

• Error 13 : File Not Found : c:\temp\uu.csv (error=3: "The system cannot find the path specified.") - if the file does not exist

prompt

#prompt(title, layout, hard_wire_cancel) ⇒ Array<Any>?

UI

Displays a window containing a grid of values, which users can optionally edit. This can be used to create scripts that can be launched from the UI with many customisable parameters.

The layout parameter is an Array, containing one Array for each row / line.

• 0 (String) - description of the value
• 1 (String) - type of value, one of NUMBER, STRING, DATE, BOOLEAN, READONLY
• 2 (Any) - default value, optional unless the type is READONLY
• 3 (Integer, nil) - number of decimal places for numbers
• 4 (String) - subtype, this also determines the further index values
  • RANGE - valid for type NUMBER, where the value is chosen from a combo box with values between index 5 and 6 inclusive
    • 5 (Numeric) - Minimum range
    • 6 (Numeric) - Maximum range
  • LIST - valid for types NUMBER, STRING, and DATE, where the value is chosen from a combo box with values from index 5
    • 5 (Array<Any>) - Values in the combo box
  • MONTH - valid for type NUMBER only, the value will be chosen from a combo box containing the names of the months
  • FILE - valid for type STRING only, with the options from index 5 through 8
    • 5 (Boolean) - true for an 'open' dialog, false for a 'save' dialog
    • 6 (String) - file extension without period e.g. csv, txt
    • 7 (String) - description of the file type
    • 8 (Boolean, nil) - whether to allow selecting multiple files if this is a open dialog (index 5 is true)
  • FOLDER - valid for type STRING
    • 5 (String, nil) - title for the folder window, if nil a default title is used

Example numbers:

['A number', 'NUMBER']
['A readonly number with a decimal precision of 2', 'READONLY', 35.02463, 2]
['Range of numbers', 'NUMBER', 13, 2, 'RANGE', 100, 200]
['List of numbers with no default', 'NUMBER', nil, nil, 'LIST',[3, 5, 7, 11]]
['List of numbers with default', 'NUMBER', 23, nil, 'LIST', [13, 17, 19, 23]]

Example strings:

['A string', 'STRING']
['A readonly string', 'READONLY', 'Default Value']
['List', 'STRING', 'Default', nil, 'LIST', ['Alpha','Beta','Gamma']]

Example dates:

['A date', 'DATE']
['A date with default value', 'DATE']
['This is a month', 'Number', 11, nil, 'MONTH']

Example booleans:

['A boolean', 'BOOLEAN']
['A boolean with a default value of false', 'BOOLEAN', false]

Example files:

['File save', 'STRING', 'Badger.txt', nil, 'FILE', false, 'txt', 'Text file', false],
['File load single', 'STRING', nil, nil, 'FILE', true, 'txt', 'MySystem text file', false],
['File load multiple', 'STRING', nil, nil, 'FILE', true, 'txt', 'More than one text file', true]

Example folders:

['Results folder', 'STRING', nil, nil, 'FOLDER', 'Select a Results Folder']
['Results folder with a default', 'STRING', 'C:/SomeFolder', nil, 'FOLDER', nil]

Parameters

results_folder

#results_folder ⇒ String

EXCHANGE, UI

Returns the current results folder. By default, this is %AppData%\Local\Innovyze\Results Folder.

Parameters

rpa_export

#rpa_export(sim_ids, return_per, output_file)  ⇒ void

EXCHANGE, UI

Performs a Return Period Analysis and exports the results to a csv file. The output is equivalent to the Results - RPA Grid Report in the ICM application.

Parameters

scalars

#scalars(title, layout, hard_wire_cancel) ⇒ void

UI

This method displays a grid of key / values, similar to that generated by SQL, except only a simple pair instead of a table.

Each item in the layout array is one row of the grid, and must contain 2 or 3 values as follows:

• Index 0 (String) description / key of the row
• Index 1 (Any) the value to be displayed, if the value is a float or a double it will be displayed by using the Ruby #to_f method, otherwise the Ruby #to_s method will be used
• Index 2 (Integer) - optional when displaying numbers, the number of decimal places to be used (between 0 and 8 inclusive)

Parameters

script_file

#script_file ⇒ String

EXCHANGE, UI

Returns the absolute path of the first Ruby script: either the file specified in the command line of Exchange, or the file selected from the user interface.

This method can be used to consistently obtain the script's location, in order to access other files in the same directory e.g. config files for the Open Data Import / Export methods.

For example, using Ruby's File.dirname to get the folder:

script_file = WSApplication.script_file
⇒ "C:\Badger\script.rb"

File.dirname(script_file)
⇒ "C:\Badger"

This is different to Ruby's built in __dir__ constant, which returns the directory of the current script file the method is called from. For example, if your primary script is C:\Badger\script.rb, but it requires another script C:\Badger\lib\util.rb, when __dir__ is used anywhere in util.rb it would return C:\Badger\lib.

Parameters

set_exit_code

#set_exit_code(code) ⇒ void

EXCHANGE

Sets the exit code of the Exchange process. The default exit code is 0, which by common convention indicates success, with any number higher than that indicating an exceptional state.

This does not affect the script's execution, it only sets the exit code returned to the operating system when it finishes. Exit codes are commonly used to indicate the outcome of a process, e.g. if you are running scripts via a task scheduler this could return whether it was successful.

Parameters

Exceptions

• exit code is not a number - if the code was an invalid type or value

set_results_folder

#set_results_folder(path) ⇒ void

EXCHANGE

Sets the results folder for this instance of Exchange. By default Exchange will use the same results directory as the user interface, usually %AppData%\Local\Innovyze\Results Folder.

This setting is not stored or persisted in any way, it is only used for the current running Exchange process.

Parameters

set_working_folder

#set_working_folder(path) ⇒ void

EXCHANGE

Sets the working folder for this instance of Exchange. By default Exchange will use the same working directory as the user interface, usually %AppData%\Local\Innovyze\Working Folder.

If multiple instances of the application (including the user interface) attempt to access the same database using the same working directory, this can cause data access conflicts. Changing the working directory can be used to avoid this.

This setting is not stored or persisted in any way, it is only used for the current running Exchange process.

Parameters

ui?

#ui? ⇒ Boolean

EXCHANGE, UI

Returns whether the the script is running in the user interface. This allows a Ruby script to behave differently depending on context, or ensure certain scripts only work in the intended environment.

Exampless

# Restrict script to running via the User Interface
raise "This script must be run from the user interface" unless WSApplication.ui?

# Restrict script to running via Exchange
raise "This script cannot be run from the user interface" if WSApplication.ui?

# Change behavior
if WSApplication.ui?
  network = WSApplication.current_network
else
  database = WSApplication.open
  network = database.model_object_from_type_and_id('Geometry', 1)
end

Parameters

use_arcgis_desktop_licence

#use_arcgis_desktop_licence(bool) ⇒ void

EXCHANGE

Sets whether the Open Data Import / Export Centre methods should use an ArcGIS desktop license.

By default, Exchange will use an ArcGIS server license if one is available. When scripts are run from the UI, an ArcGIS desktop license is always used.

It is the responsibility of the user to choose an appropriate ArcGIS license based on their use of the software.

Parameters

use_user_units= (Set)

#use_user_units=(bool) ⇒ void

EXCHANGE, UI

Sets whether the application should use user units. By default it will be false when the script is running via Exchange, and true via the UI.

Parameters

use_user_units?

#use_user_units? ⇒ Boolean

EXCHANGE, UI

Returns whether the application is using user units. By default it will be false when the script is running via Exchange, and true via the UI.

Parameters

use_utf8= (Set)

#use_utf8=(flag) ⇒ void

EXCHANGE, UI

Sets whether the application should use UTF8 in string handling. The default is false.

Parameters

use_utf8?

#use_utf8? ⇒ Boolean

EXCHANGE, UI

Returns whether the application is using UTF8 in string handling. The default is false.

Parameters

version

#version ⇒ String

EXCHANGE, UI

Returns the software version number as a string. This is the software version found in the About dialog, not the version title.

puts WSApplication.version
⇒ '26.0.162'

Parameters

wait_for_jobs

#wait_for_jobs(jobs, wait_for_all, timeout) ⇒ Integer?

EXCHANGE

Waits for one or all of the jobs to complete, or for the timeout to be reached. This will block the current script thread.

Parameters

wds_query_databases

#wds_query_databases(server, port) ⇒ Hash

EXCHANGE, UI

Queries a Workgroup Data Server. Returns a hash containing:

• response (String) - the server response, i.e. the workgroup data server version
• databases (Array<Hash>), where each hash contains:
  • databaseName (String) - the database group and name
  • version (String) - the database version
  • versionIsCurrent (Boolean) - if the database is the latest version supported by the workgroup data server
• allowDatabaseCreation (Boolean)

wds = WSApplication.wds_query_databases('localhost', 40000)

{
  "response": "SuperNumbat 29.0.60 Sep 13 2023",
  "databases": [
    {
      "databaseName": "Databases/Badger",
      "version": "2024.2",
      "versionIsCurrent": false
    },
    {
      "databaseName": "Databases/Penguin",
      "version": "2024.5",
      "versionIsCurrent": true
    }
  ],
  "allowDatabaseCreation": true
}

Parameters

working_folder

#working_folder ⇒ String

EXCHANGE, UI

Returns the current working folder. By default, this will be %AppData%\Local\Innovyze\Working Folder.

Parameters
