About AutoCAD Civil 3D Data

You can bring in the following types of data from AutoCAD Civil 3D projects:

To bring in Civil 3D data, you must first export it from Civil 3D to formats that can be read by AutoCAD Map 3D toolset.

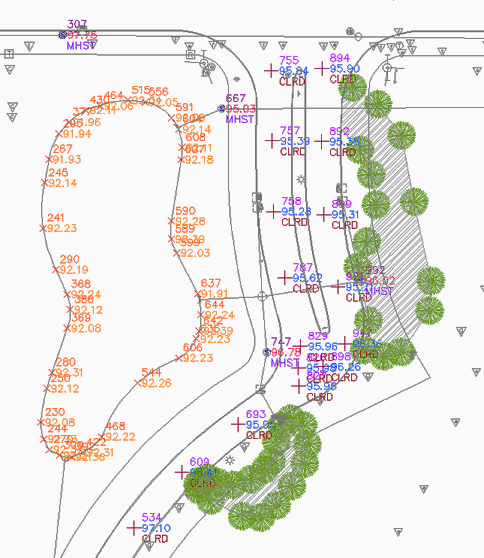

This illustration shows points representing different features, imported from AutoCAD Civil 3D.

The following table lists the AutoCAD Civil 3D features and attributes that are exported to the SDF file.

AutoCAD Civil 3D Feature	Exported Attributes
Alignment	Alignment Name Length Design Speed Starting Station Ending Station
Point	Point Number Point Name Elevation Description Raw Description Latitude Longitude
Parcel	Parcel Name Parcel Number Area Perimeter
Pipe	Network Name Length Slope Inside Diameter Outside Diameter Shape Elevation at Start Elevation at End Structure Start Structure End
Structure	Network Name Rim Elevation Structure Name
