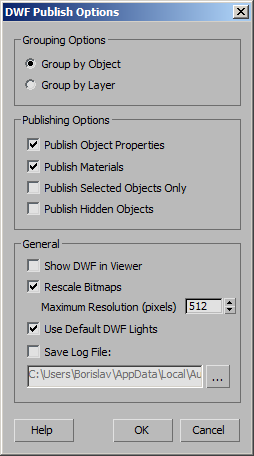

The DwfExportPreferences Core Interface exposes the settings of the DWF Export Dialog to MAXScript.

Available in 3ds Max 2014 and higher.

Interface: DwfExportPreferences

Properties:

.groupBy : enum : Read|Write
groupBy enums: {#ByObject|#ByLayer}

Get/set the state of the "Grouping Options" radio buttons.

You can either use the enums or 0-based integers.

Possible values are:

0 - #ByObject - Group By Object

1 - #ByLayer - Group By Layer

.exportProperties : boolean : Read|Write

Get/set the state of the "Publish Object Properties" checkbox.

Default is True.

.exportMaterials : boolean : Read|Write

Get/set the state of the "Publish Materials" checkbox.

Default is True.

.selectedOnly : boolean : Read|Write

Get/set the state of the "Publish Selected Objects Only" checkbox.

Default is False.

.exportHidden : boolean : Read|Write

Get/set the state of the "Publish Hidden Objects" checkbox.

Default is False.

.showViewer : boolean : Read|Write

Get/set the state of the "Show DWF In Viewer" checkbox.

Default is False.

.rescaleTextures : boolean : Read|Write

Get/set the state of the "Rescale Bitmaps" checkbox.

Default is True.

.maxTextureSize : integer : Read|Write

Get/set the value of the "Max.Resolution (pixels)" spinner used when DwfExportPreferences.rescaleTextures is set to True.

Default value is 512.

.defaultDwfLights : boolean : Read|Write

Get/set the state of the "Use Default DWF Lights" checkbox.

Default is True.

.writeLogFile : boolean : Read|Write

Get/set the state of the "Save Log File" checkbox.

Default is False.

.logFileName : filename : Read|Write

Get/set the file name of the log file used when DwfExportPreferences.writeLogFile is set to True.

Default value is "C:\Users\\AppData\Local\Autodesk\3dsMax\ - 64bit\ENU\en-US\plugcfg\DWF_export.log" where <UserName> is the name of the user and <MaxVersion> is the 3ds Max version number, for example, "2014".

Methods:

<void>ResetDefaultPreferences()

Resets all parameters to the default settings.

<void>SavePreferences()

Saves the current settings as preferences.

The saved settings can be recalled at a later point by calling the following method:

<boolean>LoadPreferences()

Restores the previously saved settings.

EXAMPLE

--Reset to defaults, then print them to Listener:
DwfExportPreferences.ResetDefaultPreferences()
for p in getPropNames DwfExportPreferences do
  format "%=%\n" p (getProperty DwfExportPreferences p)

OUTPUT

OK
#writeLogFile=false
#exportMaterials=true
#selectedOnly=false
#showViewer=false
#rescaleTextures=true
#defaultDwfLights=true
#exportHidden=false
#LogFilename=C:\Users\MyUserName\AppData\Local\Autodesk\3dsMax\2014 - 64bit\ENU\en-US\plugcfg\DWF_export.log
#groupBy=#ByObject
#maxTextureSize=512
#exportProperties=true
OK

EXAMPLE

--Let's change a few settings - Export Hidden to True and Group By to #ByLayer:
DwfExportPreferences.exportHidden=true
DwfExportPreferences.groupBy=#ByLayer
--Now let's store these settings for future use and print the current values:
DwfExportPreferences.SavePreferences()
for p in getPropNames DwfExportPreferences do
  format "%=%\n" p (getProperty DwfExportPreferences p)

OUTPUT

true
#ByLayer
OK
#writeLogFile=false
#exportMaterials=true
#selectedOnly=false
#showViewer=false
#rescaleTextures=true
#defaultDwfLights=true
#exportHidden=true
#LogFilename=C:\Users\MyUserName\AppData\Local\Autodesk\3dsMax\2014 - 64bit\ENU\en-US\plugcfg\DWF_export.log
#groupBy=#ByLayer
#maxTextureSize=512
#exportProperties=true
OK

EXAMPLE

--let's reset the settings to defaults - as expected, we will get the original values
DwfExportPreferences.ResetDefaultPreferences()
for p in getPropNames DwfExportPreferences do
  format "%=%\n" p (getProperty DwfExportPreferences p)

OUTPUT

OK
#writeLogFile=false
#exportMaterials=true
#selectedOnly=false
#showViewer=false
#rescaleTextures=true
#defaultDwfLights=true
#exportHidden=false
#LogFilename=C:\Users\MyUserName\AppData\Local\Autodesk\3dsMax\2014 - 64bit\ENU\en-US\plugcfg\DWF_export.log
#groupBy=#ByObject
#maxTextureSize=512
#exportProperties=true
OK

EXAMPLE

--Let's load the previously saved settings -
--the #exportHidden will be back to True and #groupBy will be back to #ByLayer!
DwfExportPreferences.LoadPreferences()
for p in getPropNames DwfExportPreferences do
  format "%=%\n" p (getProperty DwfExportPreferences p)

OUTPUT

true
#writeLogFile=false
#exportMaterials=true
#selectedOnly=false
#showViewer=false
#rescaleTextures=true
#defaultDwfLights=true
#exportHidden=true
#LogFilename=C:\Users\MyUserName\AppData\Local\Autodesk\3dsMax\2014 - 64bit\ENU\en-US\plugcfg\DWF_export.log
#groupBy=#ByLayer
#maxTextureSize=512
#exportProperties=true
OK

EXAMPLE

--To export using these settings without showing the Dialog, simply call
exportMaxFile (GetDir #export + "\\someFile.dwf") #noPrompt
