Tutorial A7: Define Dynamics Setup and Run Analysis

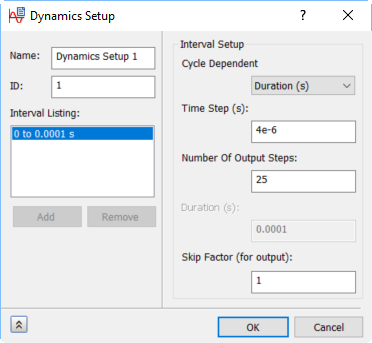

  1. Under Subcase 1, right-click Dynamics Setup 1 > Edit.
  2. Set the following values:
    • Cycle Dependent: Duration (s)
    • Time Step (s): 4e-6
    • Number of Output Steps: 25
  3. Click OK.
  4. Right-click Analysis 1 > Solve in Explicit > Solve.
Parent topic: Tutorial A7: Explicit Dynamics Analysis of a Chain
