Tutorial A9: Align Models

Click Yes when prompted to use the interactive alignment tool.
Enter 20 mm for TY and -38.1 mm for TZ and click Apply.

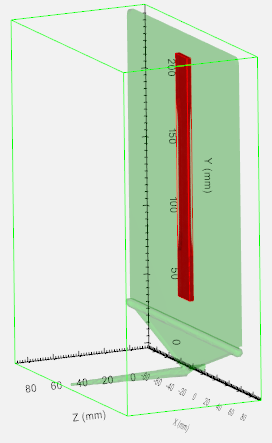

Use your mouse to rotate the model and make sure the two parts are aligned properly. Click OK.
