The annotation setup is redesigned with simplified options and more annotation capabilities for isometric drawings.
The improved isometric annotation setup allows you to do the following:

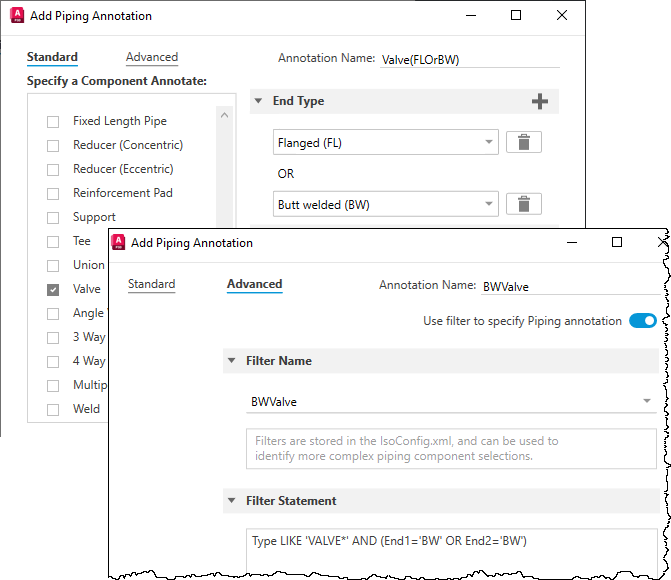

- Customize annotations to specific components with more conditions or to existing filters defined in
IsoConfig.xml.
.

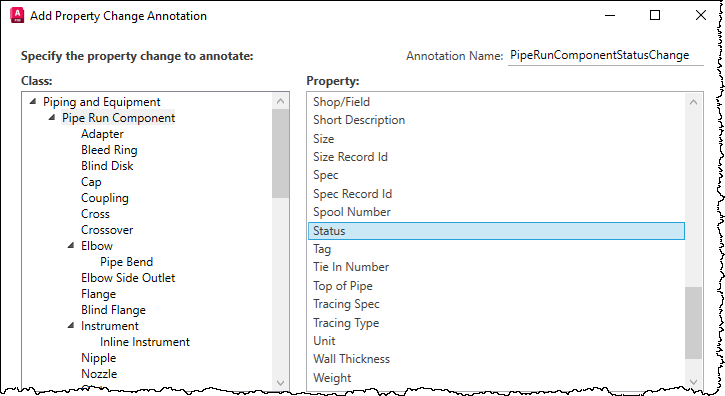

- Customize annotations for specific property changes.

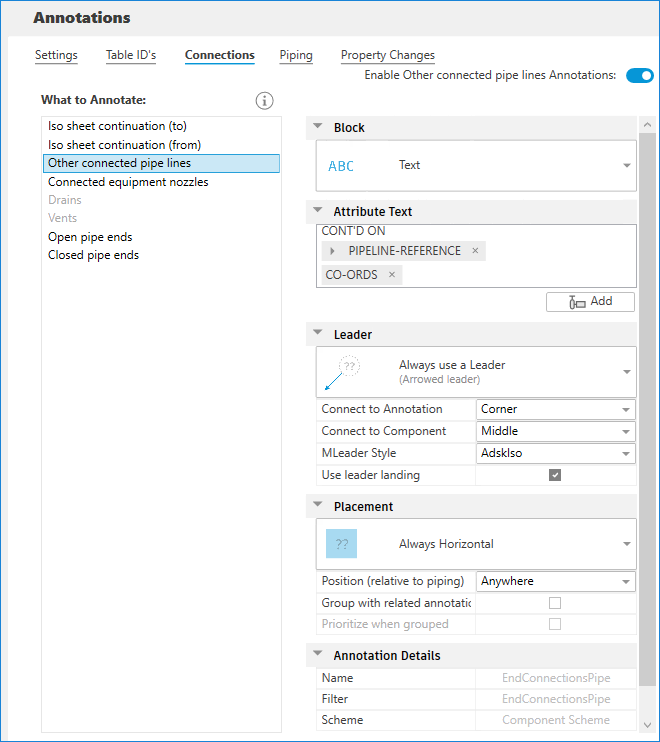

- Provide block, leader style, and leader placement settings for all annotations (Table ID, End connection, Piping, Property Changes). You can customize the default settings for newly created annotations.

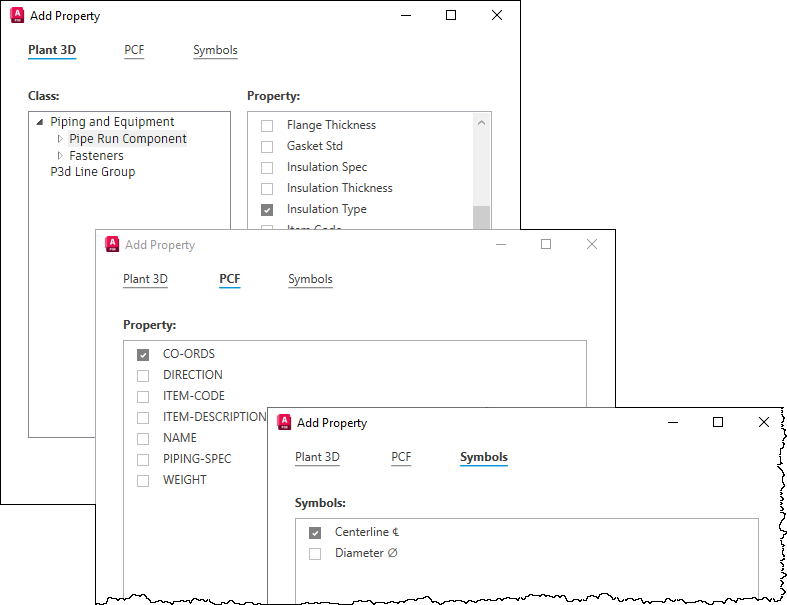

- Provide class properties, PCF properties, specific symbols, and free-form text options when adding properties into annotations.
- Differentiate BOM ID annotation settings for pipe and non-pipe components, shop welds, and field welds.

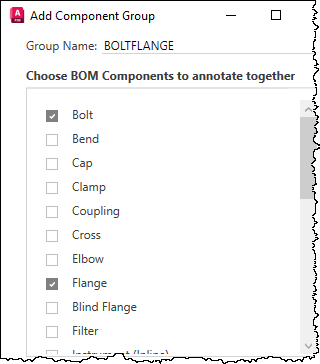

- Customize component group to annotate together for BOM ID annotations.

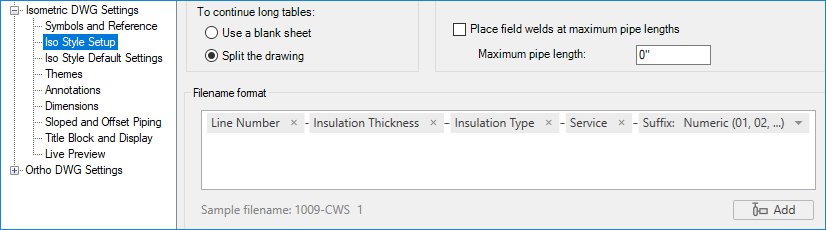

- Improved file name format settings to choose properties from class or PCF.
