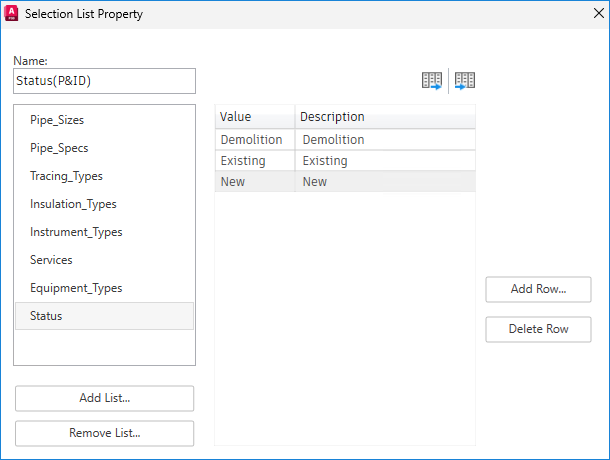

Selection List Property Dialog Box (Properties)

Sets values for pipe sizes, pipe specs, services, instrument types, and other P&ID data fields.

These values are displayed as drop-down lists, where users choose a predefined value.

Name

Displays the name of the property that the predefined select list is being edited for.

Export

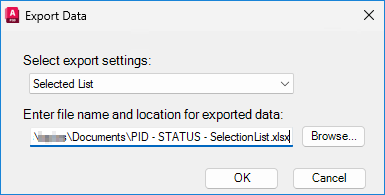

Displays the Export Data dialog box, where you can export a specific list or all selection lists to an Excel spreadsheet.

Import

Displays the Import Data dialog box, where you can import a specific list or all selection lists back into the project.

Selection List

Sets a data field category. Default categories include Pipe_Sizes, Pipe_Specs, Tracing_Types, Insulation_Types, Instrument_Types, Services, and Equipment_Types. Categories and values are often determined by the industry standard used (for example: PIP, ISO, or ISA).

Selection List Details: Sets a value and description for a selected or added category.

Add List

Displays the Add Selection List dialog box, where you enter a new selection list name.

Remove List

Deletes a selected selection list.

Add Row

Displays the Add Row dialog box, where you enter a value and description for the new entry in the selection list.

Delete Row

Deletes the selected row from the Selection List Details pane.
