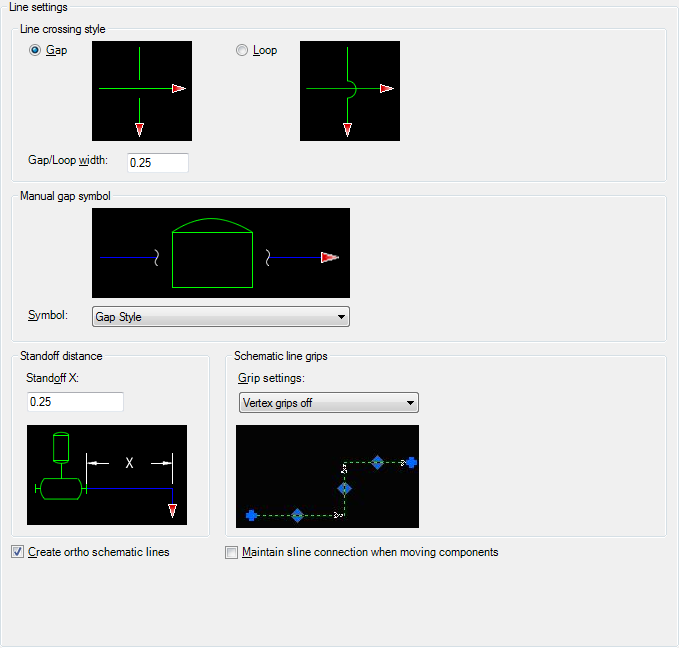

Sets the display options for crossing lines, line gaps, standoff distance, and line grips.
Line Crossing Style
Sets the type of visual indicator displayed in a drawing when schematic lines cross each other. Options are Gap or Loop. You can also set the width of the gap or loop (in units).
Manual Gap Symbol
Sets the symbol displayed in a drawing to represent a gap. You can load your own symbol (block) and can set the scale of the symbol used.
Standoff Distance
Sets the distance displayed in a drawing to offset a schematic line from a component, especially when the line has a right-angle turn out of a component.
Schematic Line Grips
Sets the display mode of grips when a schematic line is selected. The grip setting you choose corresponds to and updates the VGRIPS system variable.
Create Ortho Schematic Lines
When active, the current setting of the SLINEORTHO system variable is honored.
Maintain Sline Connection When Moving Assets
Sets whether inline connections are maintained when you drag an inline component by its Move grip.
