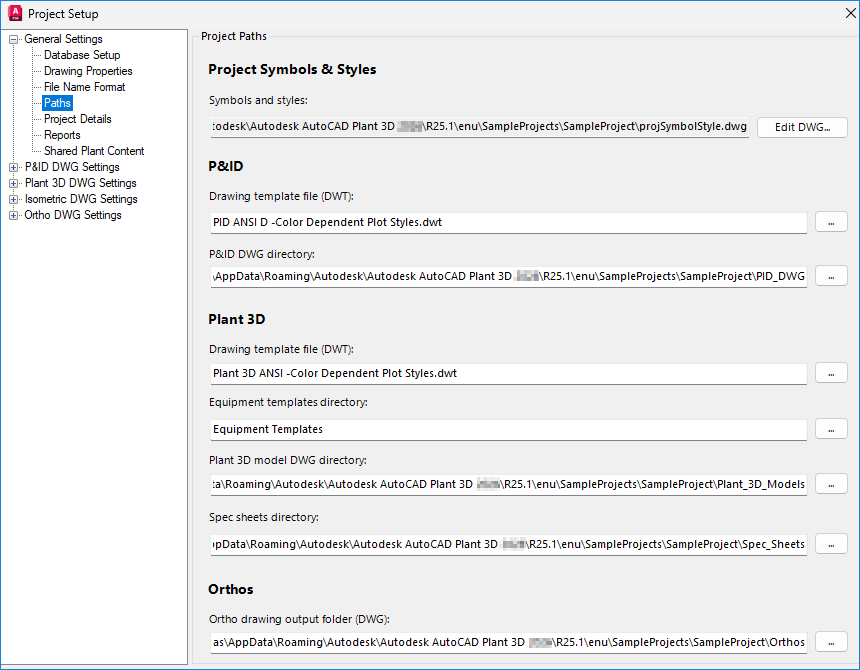

Sets the paths and directories where users access symbols, reports, the project drawing directory, and so on.
Project Symbols & Styles
Displays the location where symbols are stored. You cannot edit this location.
Note: In a collaboration project, the Edit DWG button is enabled, allowing you to edit project symbols and styles for customization.
P&ID
Defines the P&ID paths.
- Drawing Template File (DWT)
- Defines the template file that displays by default when users open a project. You can browse to select a different file.
- P&ID DWG Directory
- Specifies the location of the project drawing directory. You can browse to set another location.
Plant 3D
Defines the Plant 3D project paths.
- Drawing Template File (DWT)
- Specifies the location of the project model template directory. You can browse to select another location or template.
- Equipment Template Directory
- Specifies the location of the equipment template directory.
- Plant 3D Model DWG Directory
- Specifies the location of the project model directory. You can browse to set another location.
- Spec Sheets Directory
- Specifies the location where the spec sheets are stored. You can browse to select another location.
Orthos
- Ortho Drawing Output Folder (DWG)
- Specifies the location for ortho drawings. You can browse to select another location.
