To set up line arrow behavior

  1. In the Project Setup tree view, expand P&ID Class Definitions.

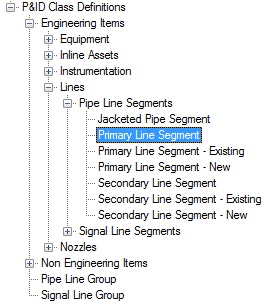

  2. Continue to expand the list until you locate and click the line style whose line arrow behavior you want to set (for example: EquipmentLinesPipe Line Segments Primary Line Segment).
  3. On the Class Settings pane, under Line, click Edit Line.
  4. In the Line Settings dialog box, under Symbol Properties, click Flow Arrow Style. In the drop-down list, click a symbol in the list. Click OK.
  5. Click OK.
